Big Country 430D Yellow (37AB430D710) - Cub Cadet 4x2 Utility Vehicle Cables Parts Diagram

4x2 Utility Vehicle

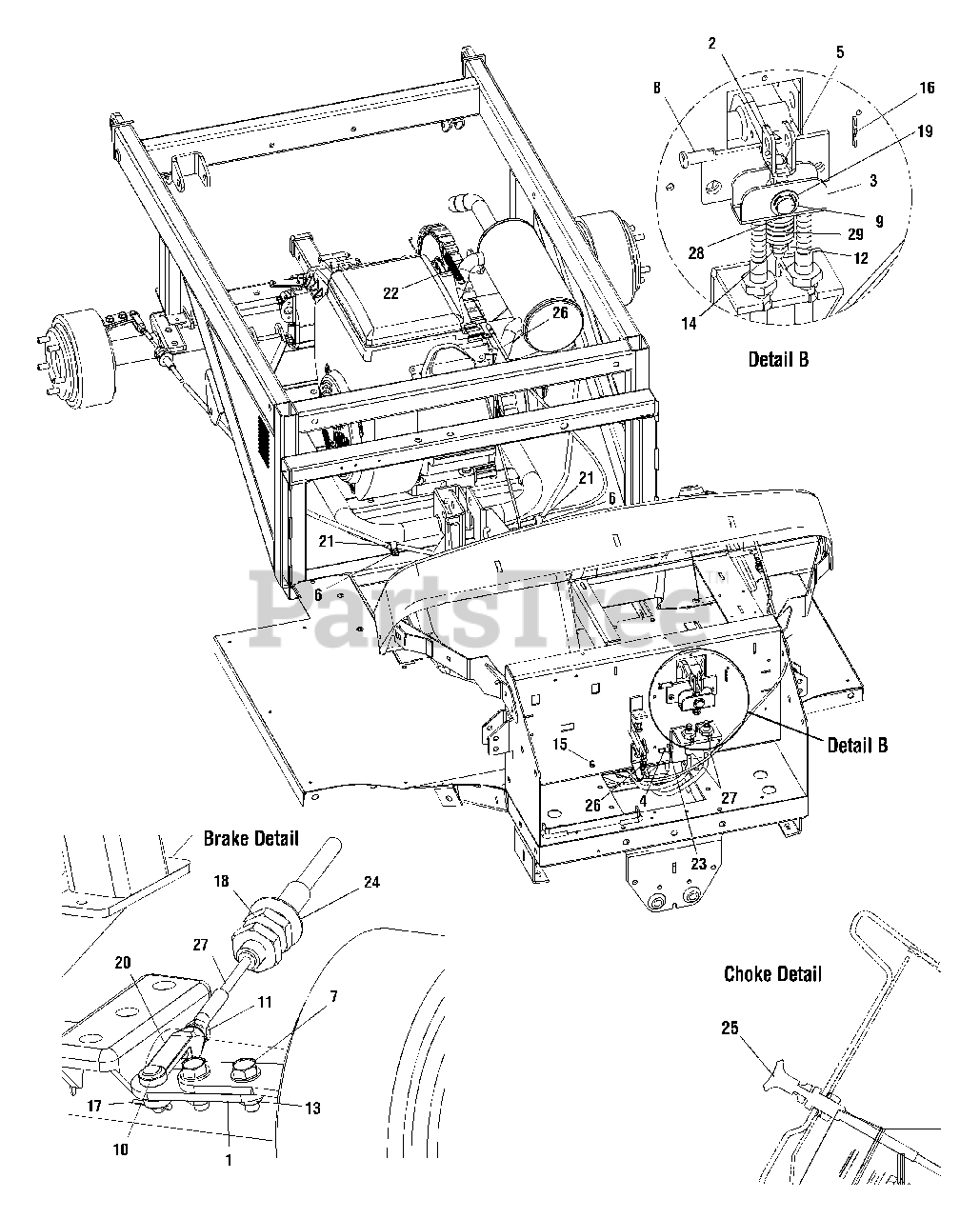

Cables Parts Diagram

  • Title
1

Cub Cadet 707-04196A

Plate, Arm Brake

$

$

Not available

2

Cub Cadet 707-04199

Mount,Cable
(Superseded to 707Z04199)

$17.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 707-04200

Bracket, Equalizer

$33.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04027

Screw, Shoulder, .375 x .375

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-1266

Screw, 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0599

Screw, Self-Tapping

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1238

Washer, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet 711-0173

Pin, Clevis 375 x .969
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

9

Cub Cadet 711-04024

Pin, Clevis .625 OD x 1.37
(Superseded to 911-04024)

$25.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-0653

Pin, Clevis .312 OD x 1.0

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0256

Nut, Jam 5/16-24

$

$

Not available

12

Cub Cadet 712-3010

Nut, Hex 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

Nut, Flange Lock 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3007

Nut, Jam 5/16-18

$6.99

$

In Stock, Qty 5

0

15

Cub Cadet 712-3009

Hexlock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0104

Pin, Cotter, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0507

Pin, Cotter 3-32 x .750

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 719-0104

E-Ring for .500 Dia Shaft

$

$

Currently unavailable

19

Cub Cadet 716-0106A

E-Ring.625 Shaft

$5.49

$

In Stock, only 2 left!

0

20

Cub Cadet 719-3018

Yoke, 5/16-24

$43.99

$

Usually ships in 3-6 days

0

$

$

Not available

22

Cub Cadet 732-0470A

Extension Spring
(Superseded to 932-0470A)

$9.99

$

In Stock, Qty 7

0

23

Cub Cadet 736-0159

Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0355

Flat Washer, 1.0 x .56 x .040

$4.49

$

In Stock, Qty 12

0

25

Cub Cadet 746-04201

Cable, Control, Choke

$

$

Not available

26

Cub Cadet 746-04202

Cable, Control, Throttle

$

$

Not available

27

Cub Cadet 746-04124

Cable, Control, Brake
(Superseded to 946-04124)

$

$

Not available

28

Cub Cadet 750-04194

Spacer, .466 OD x .443

$6.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-04099

Washer, Belleville, .937 x .328 x .07

$

$

Not available
