Big Country 430 (37AR430D710) - Cub Cadet 4x2 Utility Vehicle Electrical System (Part 1) Parts Diagram

4x2 Utility Vehicle

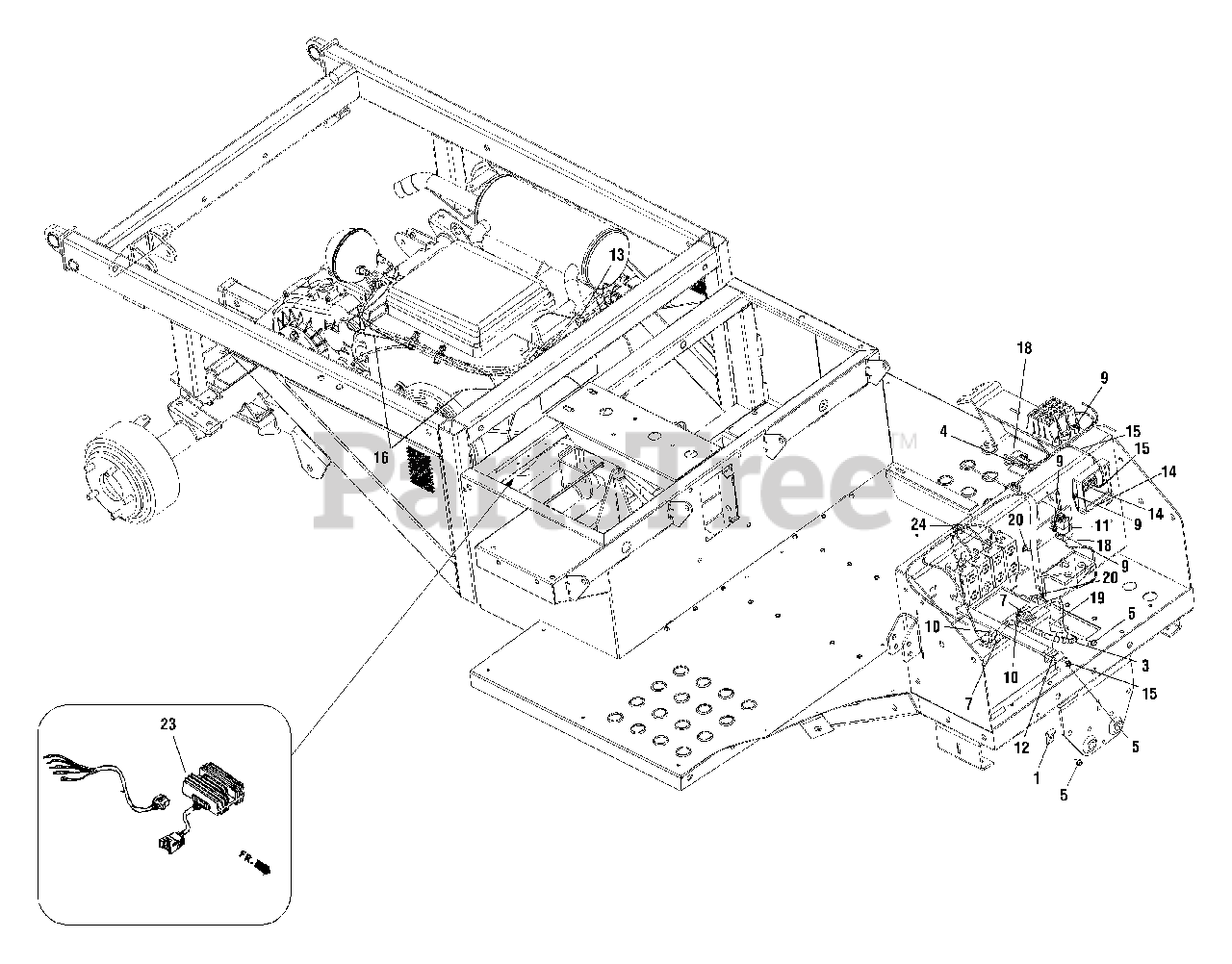

Electrical System (Part 1) Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

3

Cub Cadet 629-04060

Harness Assembly, Motor Ground

$

$

Not available

4

Cub Cadet 710-04030

Screw, 1/4-20 x .50

$

$

Not available

5

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0703

Screw, Hex Carriage, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3009

Screw, #10-24 x 0.75

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

11

Cub Cadet 721-3049

Cover, Protective

$

$

Not available

12

Cub Cadet 723-3064

Strap, Battery

$29.99

$

In Stock, only 4 left!

0

13

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-04059A

Control, Shaft

$152.99

$

In Stock, only 1 left!

0

15

Cub Cadet 725-04065

Harness, Utility Main
(Superseded to 925-04065)

$

$

Not available

16

Cub Cadet 725-04066

Harness, Motor

$

$

Not available

18

Cub Cadet 725-1657A

Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

19

Cub Cadet 725-1738

Battery
(Superseded to 925-1707D)

$

$

Not available

20

Cub Cadet 726-0470

Cable Tie, .19 x 8.39 Tree Mount

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 31620-ZG5-003

Rectifier Assembly, Regulator (20A)
(Superseded to 31620-ZG5-033)

$205.99

$

In Stock, only 3 left!

0

24

Cub Cadet 726-0465

Retainer Clip, .250 x .267

$4.99

$

In Stock, Qty 16

0
