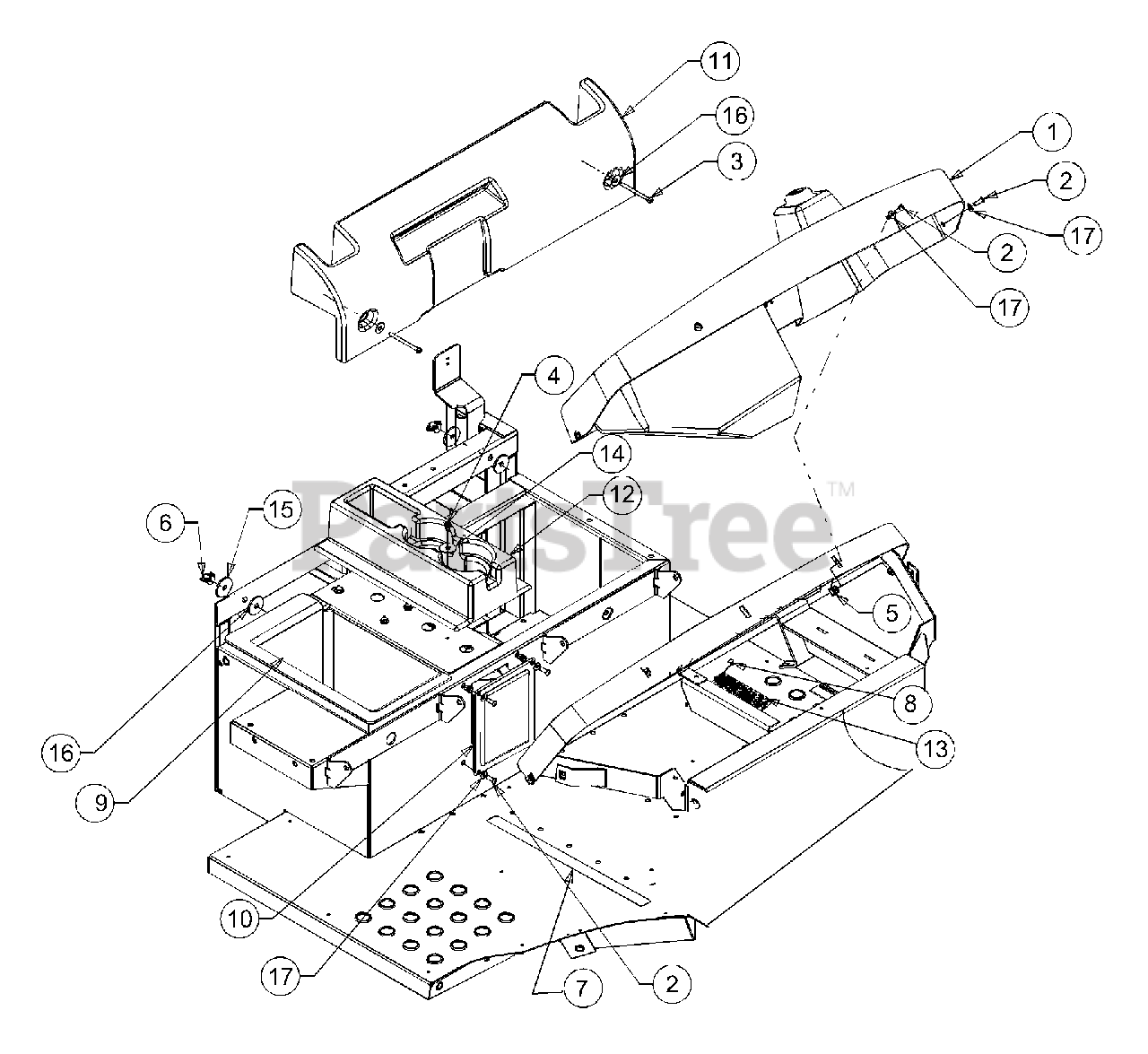

Big Country 430 (37AR430-100) - Cub Cadet 4x2 Utility Vehicle Trim Panels Parts Diagram

4x2 Utility Vehicle

Trim Panels Parts Diagram

  • Title

1

Cub Cadet 731-04270

Dash

$

$

Not available

2

Cub Cadet 710-04064

Screw, 1/4-20 x .75

$8.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04066

Screw, 1/4-20 x 3.0

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04013

Nut, Retainer, 1/4-20

$

$

Not available

6

Cub Cadet 712-0397

Wing Nut, 1/4-20 (w/ Bell Washer)
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 723-04014

Anti Skid Foot Pad

$

$

Not available

8

Cub Cadet 726-0465

Retainer Clip .250 x .267

$4.99

$

In Stock, Qty 16

0

9

Cub Cadet 731-04033A

Tool Box
(Superseded to 931-04033A)

$

$

Not available

10

Cub Cadet 731-04225

Panel, Shift Cover
(Superseded to 931-04225)

$

$

Not available

11

Cub Cadet 731-04317

Panel, Airbox Cover

$

$

Not available

12

Cub Cadet 731-2648

Console, Cup Holder

$

$

Not available

13

Cub Cadet 735-04029

Pad, Foot
(Superseded to 935-04029)

$

$

Not available

14

Cub Cadet 736-04004

Flat Washer, .350 x 1.25 x .06

$

$

Not available

15

Cub Cadet 736-04017

Washer, Rubber, .375 x 1.5 x 1.25

$

$

Not available

16

Cub Cadet 736-0195

Washer, Flat, .3125 x .875 x .04

$

$

Not available

17

Cub Cadet 736-3020

Washer, Flat, .271 x .630 x .065

$6.99

$

In Stock, Qty 9

0
