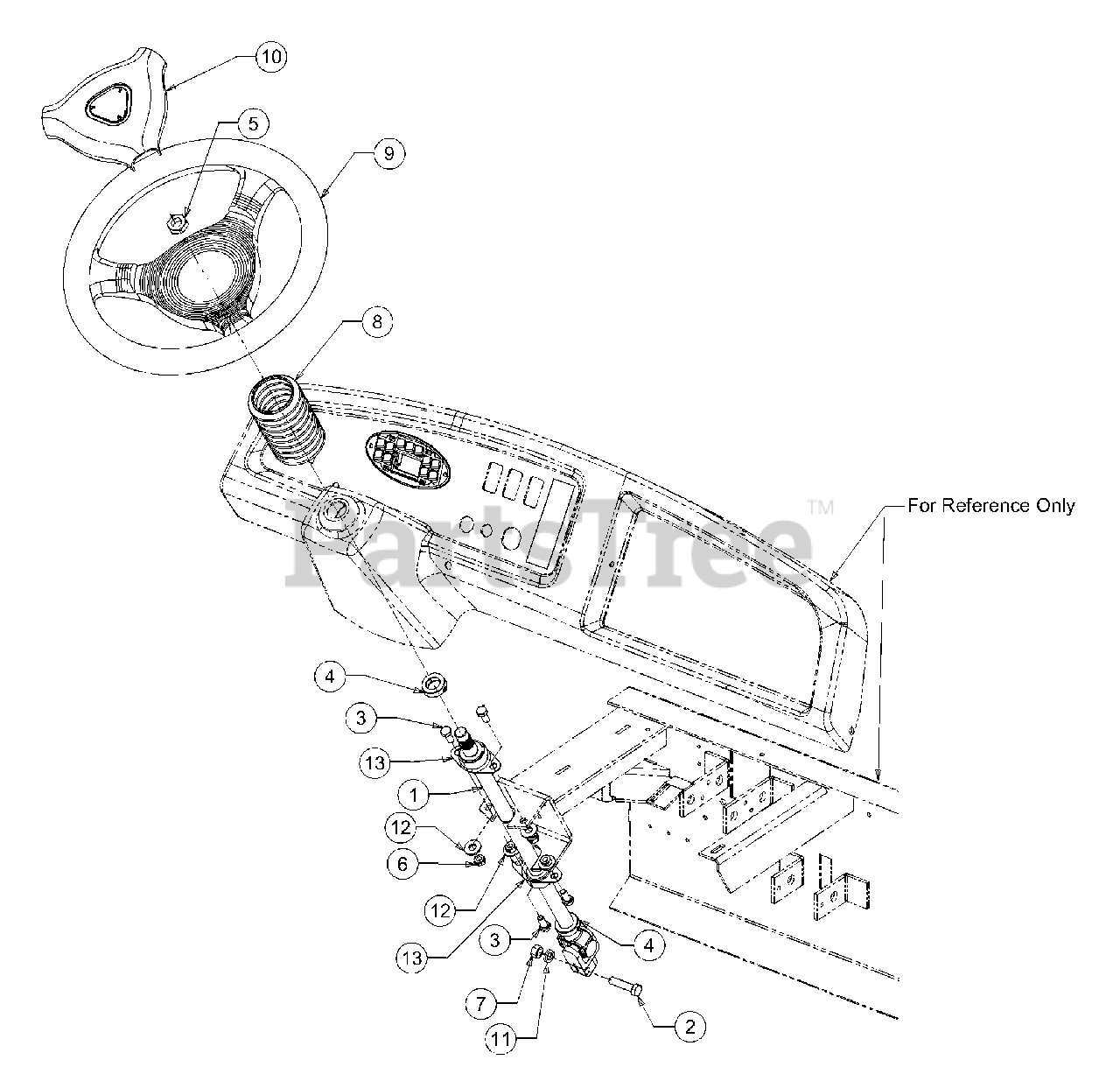

Big Country 430 (37AR430-100) - Cub Cadet 4x2 Utility Vehicle Steering (Upper) Parts Diagram

4x2 Utility Vehicle

Steering (Upper) Parts Diagram

  • Title

1

Cub Cadet 623-0027

Shaft Assembly, Steering

$

$

Not available

2

Cub Cadet 710-0520

Hex Screw, 3/8-16, 1.50, Gr5

$4.49

$

In Stock, Qty 5

0

3

Cub Cadet 710-3008

Hex Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-1774

Collar, .75

$

$

Not available

5

Cub Cadet 712-04001

Nut, Hex, M16-2, Class 8

$

$

Not available

6

Cub Cadet 712-3009

Nut, Hex Lock, 5/16-18

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3017

Nut, Hex, 3/8-16, Gr8

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 731-0954

Bellow, Steering, 4.75 Lg
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-2848

Steering Wheel, Three-spoke

$

$

Not available

10

Cub Cadet 731-3210

Cover, Steering Wheel
(Superseded to 731-06459)

$21.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0169

Washer, Lock, 3/8, Regular Duty

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0262

Washer, Flat, .385 ID x .870 OD x .092

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 741-04000

Bearing, Flange, .75 ID, Self-Aligning

$

$

Not available
