Big Country 430 (37AR430-100) - Cub Cadet 4x2 Utility Vehicle Pedals/Parking Brake Parts Diagram

4x2 Utility Vehicle

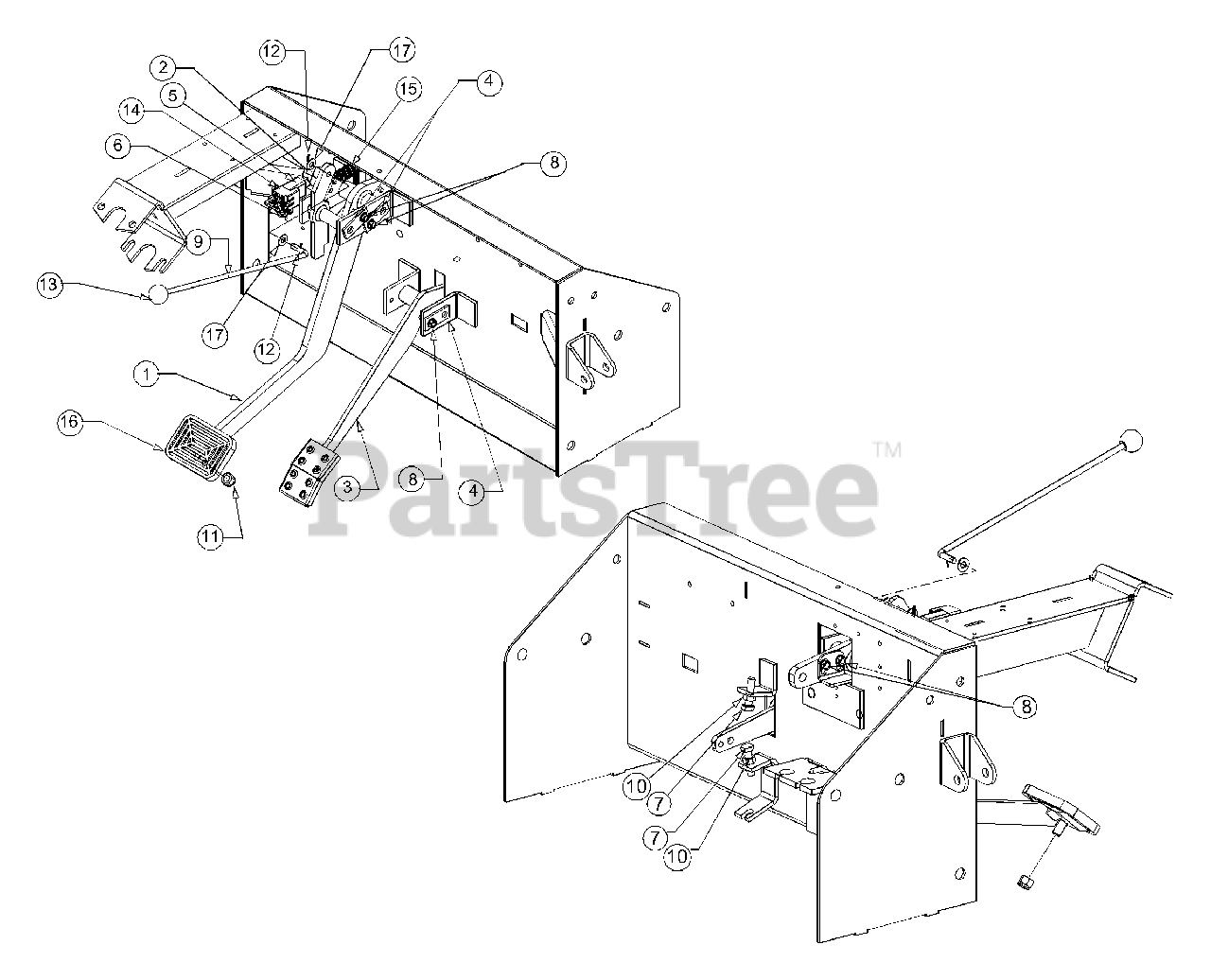

Pedals/Parking Brake Parts Diagram

  • Title

1

Cub Cadet 607-0038

Pedal Assembly, Brake

Variations

Cub Cadet 607-0038-0637

BRAKE PEDAL ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 607-0021

Lever Assembly, Parking Brake

$

$

Not available

3

Cub Cadet 607-0039

Pedal Assembly, Throttle
(Superseded to 759-04283)

$

$

Not available

4

Cub Cadet 611-0157

Shaft Assembly, Pedal Pivot

$

$

Not available

5

Cub Cadet 721-3049

Cover, Protective

$

$

Not available

6

Cub Cadet 710-04030

Screw, Hi-Lo, 1/4-20 x .5

$

$

Not available

7

Cub Cadet 710-0528

Screw, Hex 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

8

Cub Cadet 710-0875

Screw, Self-tapping, 1/4-20, .75

$3.99

$

In Stock, only 2 left!

0

9

Cub Cadet 711-1765

Rod, Brake Lock

$

$

Not available

10

Cub Cadet 712-3010

Nut, Hex 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3061

Nut, Hexlock, 3/8 - 24

$6.99

$

In Stock, Qty 14

0

12

Cub Cadet 714-0127

Pin, Cotter 1/16 x .75

$

$

Not available

13

Cub Cadet 720-04001

Knob, Ball

$

$

Not available

14

Cub Cadet 725-1657A

Snap Mount Switch, Interlock
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

15

Cub Cadet 732-1187

Spring, Extension, .637 x 2.972

$

$

Not available

16

Cub Cadet 735-04000

Pad, Brake Pedal

$

$

Not available

17

Cub Cadet 736-0463

Washer, Flat .25 x .630 x .0515

$4.49

$

In Stock, Qty 20+

0
