Big Country 420 (37AR420A100) - Cub Cadet 4x2 Utility Vehicle Hood Parts Diagram

4x2 Utility Vehicle

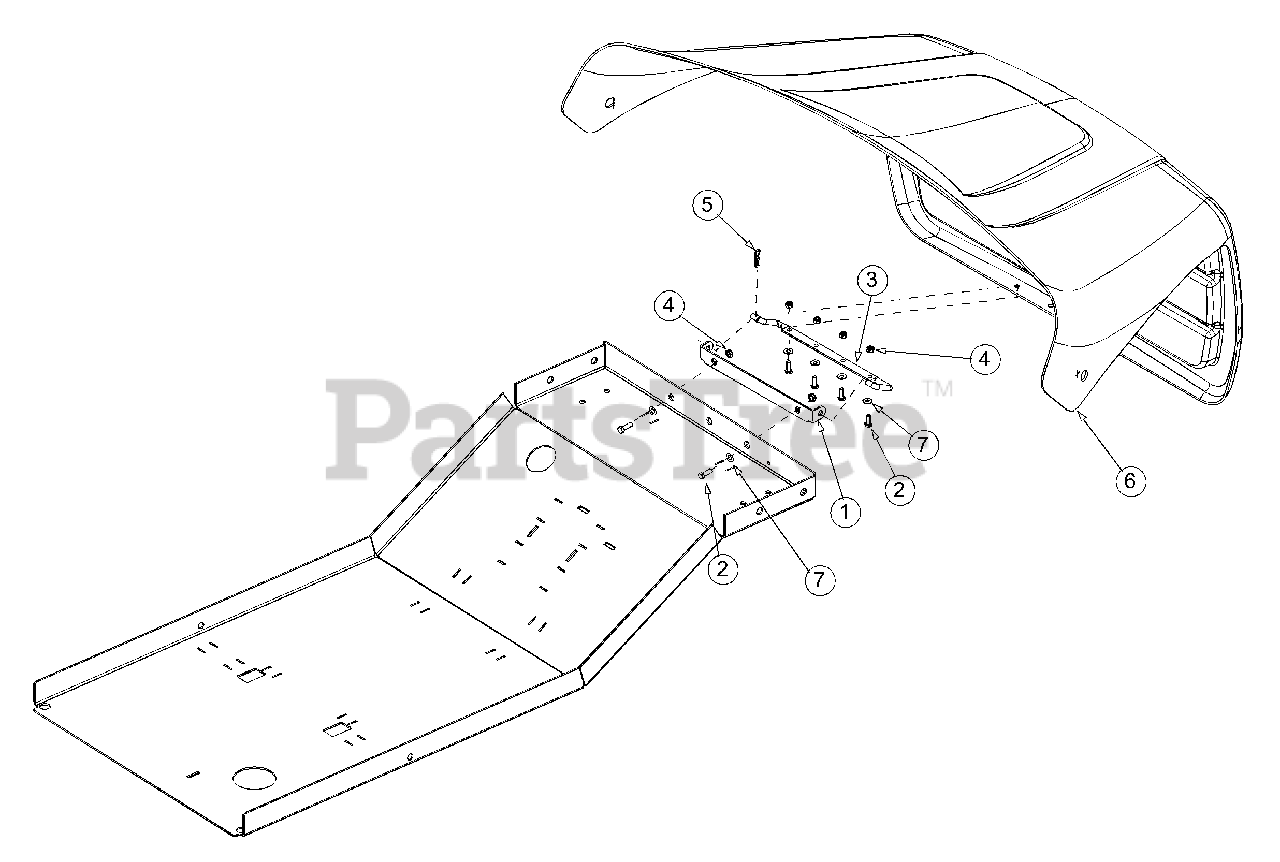

Hood Parts Diagram

  • Title
1

Cub Cadet 707-04165

Mounting Bracket, Hood
(Superseded to 707-04165-0637)

Variations

Cub Cadet 707-04165-0637

BRACKET-HOOD MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-3015

Hex Screw, 1/4-20, .75, Gr5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 711-04139

Rod Mounting Hood

$

$

Not available

4

Cub Cadet 712-0324

Nut, Nylon Hex Lock, 1/4-20, Gr8

$3.99

$

In Stock, Qty 17

0

5

Cub Cadet 714-0101

Cotter Pin

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet 731-04233

Panel, Hood
(Superseded to 931-04403)

$

$

Not available

7

Cub Cadet 736-3020

Washer, Flat, .271 x .630 x .065

$6.99

$

In Stock, Qty 9

0

Cub Cadet 731-04403

Hood
(Superseded to 931-04403)

$

$

Not available
