Big Country 420 (37AR420A100) - Cub Cadet 4x2 Utility Vehicle Engine - Crankcase Cover Parts Diagram

4x2 Utility Vehicle

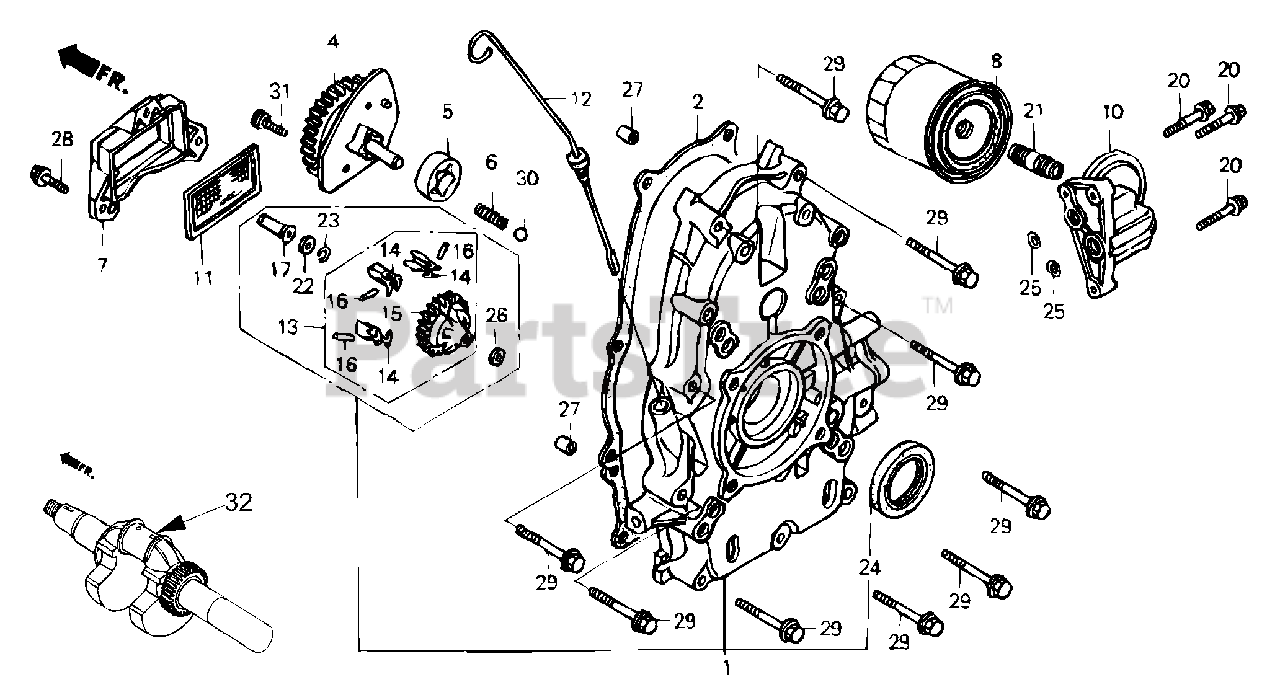

Engine - Crankcase Cover Parts Diagram

  • Title

1

Honda 11300-ZJ1-840

Cover Assembly, Crankcase (Q-type)
(Superseded to 11300-ZJ1-843)

$566.99

$

In Stock, only 1 left!

0

2

Honda 11381-ZJ1-840

Gasket, Case Cover

$24.99

$

In Stock, only 1 left!

0

4

Cub Cadet 15120-ZJ1-000

Cover Assembly, Oil Pump
(Superseded to 15120-ZJ1-010)

$76.99

$

In Stock, only 1 left!

0

5

Honda 15124-ZJ1-003

Rotor, Oil Pump (Outer)

$27.99

$

Usually ships in 3-6 days

0

6

Honda 15232-ZJ1-000

Spring, Relief Valve

$3.49

$

In Stock, only 1 left!

0

7

Honda 15348-ZJ1-840

Cover, Oil Filter

$18.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 15400-P0H-305PE

Filter, Oil
(Superseded to 15400-PLM-A02PE)

$15.99

$

Usually ships in 3-6 days

0

10

Honda 15411-ZJ1-840

Base, Oil Filter

$159.99

$

Usually ships in 3-6 days

0

11

Honda 15427-ZJ1-000

Screen, Oil Filter

$14.99

$

Usually ships in 3-6 days

0

12

Honda 15655-ZJ1-840

Dipstick, Oil

$17.99

$

Usually ships in 3-6 days

0

13

Honda 16510-ZJ1-840

Governor Assembly

$30.99

$

Usually ships in 3-6 days

0

14

Honda 16511-ZJ1-840

Weight, Governor

$6.99

$

Usually ships in 3-6 days

0

15

Honda 16512-ZJ1-840

Holder, Governor Weight

$

$

Not available

16

Honda 16513-ZE2-000

Pin, Governor Weight

$2.49

$

Usually ships in 3-6 days

0

17

Honda 16531-ZE2-000

Slider, Governor
(Superseded to 16531-Z0A-000)

$3.99

$

In Stock, only 3 left!

0

20

Honda 90015-883-000

Bolt, Flange (6x28)

$3.99

$

In Stock, Qty 8

0

21

Honda 90018-PN3-000

Holder, Oil Filter

$9.99

$

In Stock, only 1 left!

0

22

Honda 90473-147-000

Washer (6x16)

$1.99

$

In Stock, only 1 left!

0

23

Honda 90602-ZE1-000

Clip, Governor Holder

$1.99

$

In Stock, only 3 left!

0

24

Honda 91202-ZJ1-841

Oil Seal (38x58x9)

$11.99

$

In Stock, Qty 7

0

25

Honda 91320-MJ6-003

O-ring (11.8x2.4)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 94101-06800

Washer, Plain (6mm)

$0.99

$

In Stock, Qty 20+

0

27

Honda 94301-08140

Pin A, Dowel (8x14)

$2.99

$

In Stock, Qty 8

0

28

Honda 95701-06020-00

Bolt, Flange (6x20)

$2.49

$

In Stock, Qty 6

0

29

Honda 95701-08050-00

Bolt, Flange (8x50)

$3.49

$

In Stock, Qty 5

0

30

Honda 96211-12000

Ball, Steel (#12) (3/8)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 96600-06016-00

Bolt, Socket (6x16)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 13310-ZJ1-840

Crankshaft

$549.99

$

Usually ships in 3-6 days

0
