Big Country 414 (37AN414J710) - Cub Cadet 4x2 Utility Vehicle Cargo Bed Parts Diagram

4x2 Utility Vehicle

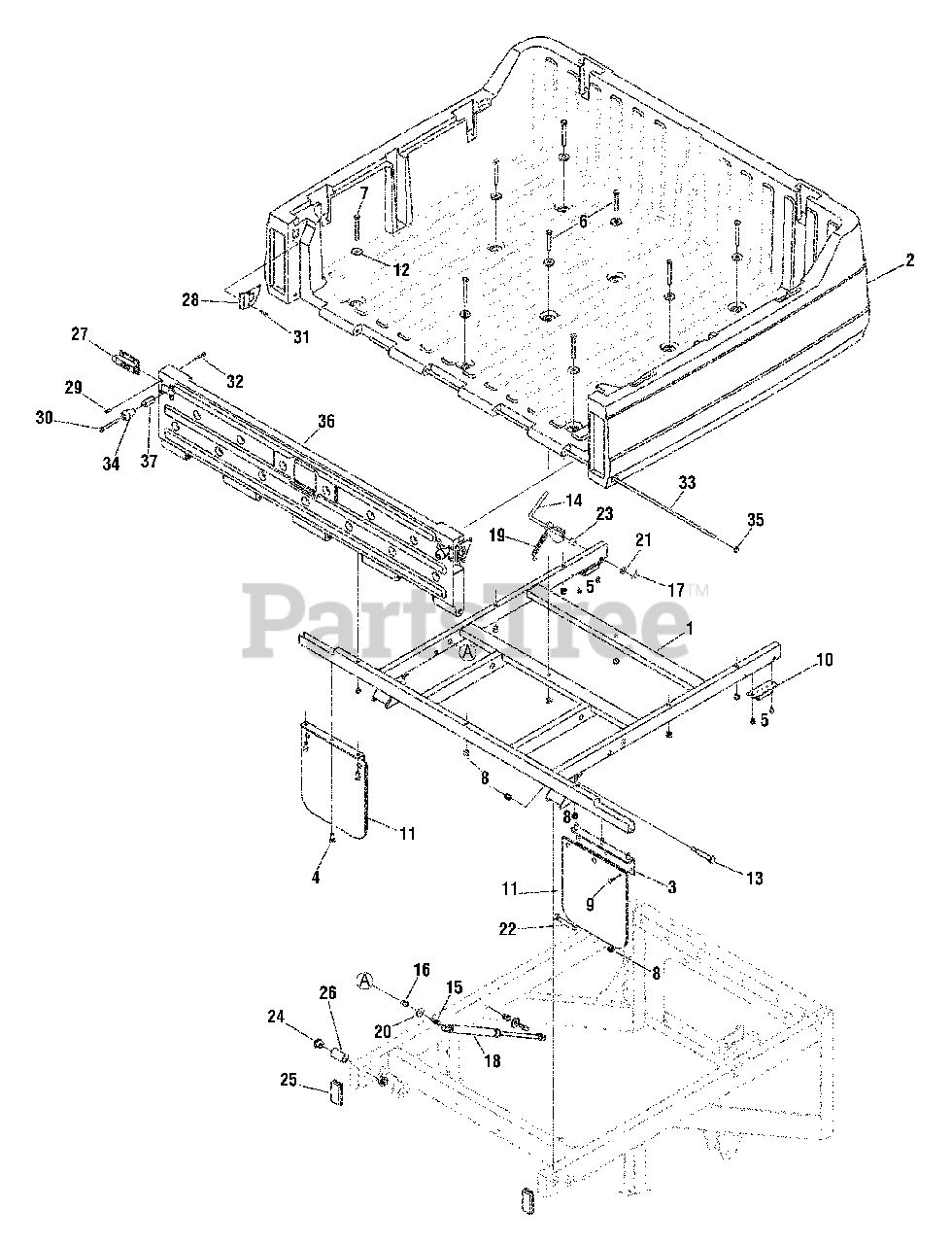

Cargo Bed Parts Diagram

  • Title

1

Cub Cadet 607-04070

Bed Frame Assembly
(Superseded to 607-04070-0637)

Variations

Cub Cadet 607-04070-0637

FRAME-POLY BED PWR - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 731-04639

Poly Bed
(Superseded to 731-04639A)

$

$

Not available

3

Cub Cadet 707-04353

Mud Flap Bracket

$

$

Not available

4

Cub Cadet 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

5

Cub Cadet 710-0599

Self Tap Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0859

Hex Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

7

Cub Cadet 710-3130

Hex Screw, 3/8-16 x 3.25

$10.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0130

Hex Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

9

Cub Cadet 728-04004

Pop Rivet
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

10

Cub Cadet 731-04016

Bumper, Suspension

$45.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 735-04043

Mud Flap

$

$

Not available

12

Cub Cadet 736-0235

Flat Washer,.406 x 1.26 x.17
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

13

Cub Cadet 738-3056

Shoulder Screw, 1/2 x 2.50 Lg.
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

14

Cub Cadet 607-04108

Latch Assembly

$

$

Not available

15

Cub Cadet 710-04166

Ball Stud, 5/16-18

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-0703A

Insert Nut. 5/16-18

$7.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

18

Cub Cadet 732-04109

Gas Spring, 6.91 Stroke
(Superseded to 932-04109B)

$87.99

$

In Stock, only 1 left!

0

19

Cub Cadet 732-0428A

Extension Spring

$

$

Not available

20

Cub Cadet 736-0231

Flat Washer,.344 x 1.125 x.12

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0300

Flat Washer,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 738-0129

Shoulder Bolt, 3/8-16 x.5OD x 2.0

$11.99

$

In Stock, only 1 left!

0

23

Cub Cadet 750-0807

Spacer,.385 x.625 x.700

$6.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-0248

Flange Bearing,.51

$9.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-04684

Tubing Plug

$

$

Not available

26

Cub Cadet 750-04127

Leaf Spring Rear Spacer

$

$

Not available

27

Cub Cadet 607-04094

Tailgate Latch Assembly

$

$

Not available

28

Cub Cadet 707-04349

Kick Plate - LH

$

$

Not available

Cub Cadet 707-04350

Kick Plate - RH

$

$

Not available

29

Cub Cadet 710-04284

Screw, 10-24 x 5/8

$

$

Not available

30

Cub Cadet 710-04314

Hex Screw, 5/16-18 x 2.75

$

$

Not available

31

Cub Cadet 710-0969

Screw, #12-16 x 1.000

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 710-1106

Machine Screw, #10-24 x 1.625

$

$

Not available

33

Cub Cadet 711-04244

Tailgate Hinge

$

$

Not available

34

Cub Cadet 720-0171

Knob
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

35

Cub Cadet 726-0100

Push Cap

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 731-04640

Tailgate

$

$

Not available

37

Cub Cadet 750-04323

Spacer,.315ID x.375OD x 2.25

$

$

Not available

Cub Cadet 746-04159

Cables, Tailgate

$

$

Not available
