Big Country 414 (37AN414G710) - Cub Cadet 4x2 Utility Vehicle Engine Transmission Parts Diagram

4x2 Utility Vehicle

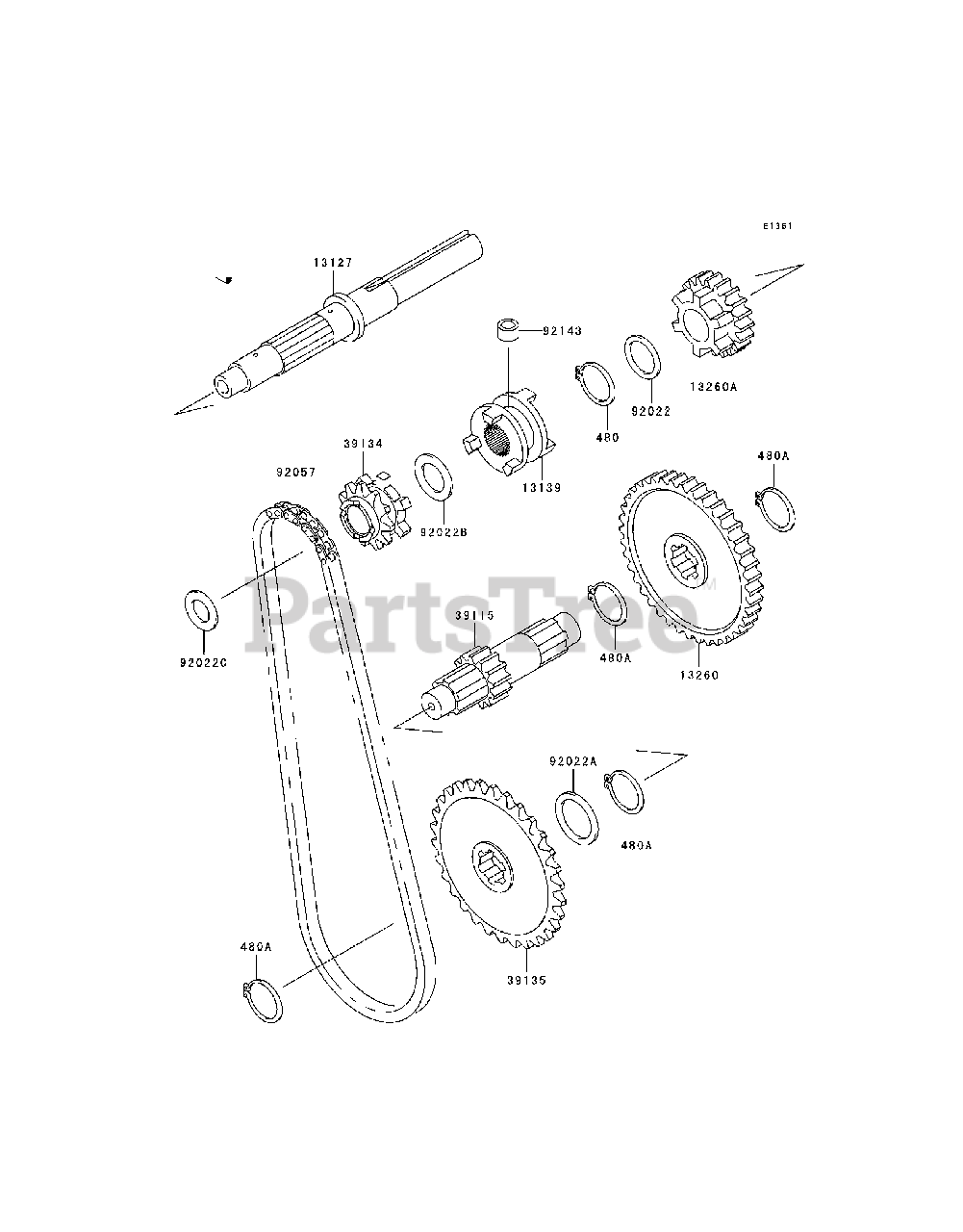

Engine Transmission Parts Diagram

  • Title
13127

Cub Cadet KM-13127-1203

Shaft-Transmission Input

$

$

Not available

13139

$

$

Currently unavailable

13260

Cub Cadet KM-13260-1152

GearOutput Forward,55T

$

$

Not available

13260A

Cub Cadet KM-13260-1336

Gear, Input Forward, 24T

$

$

Not available

39115

Cub Cadet KM-39115-1070

Shaft,Output Reduct.13T

$

$

Not available

39134

Cub Cadet KM-39134-1054

Sprocket, Drive, 19T

$

$

Not available

39135

$

$

Not available

92022

Cub Cadet KM-92022-1109

Washer, 25.3 x 33 x 1

$

$

Not available

92022A

Cub Cadet KM-92022-1626

Washer, 28.3 x 34 x 0.3

$

$

Not available

92022B

Cub Cadet KM-92022-1723

Washer, 22.3 x 35 x 2.0

$

$

Not available

92022C

Cub Cadet KM-92022-270

Washer, 17.3 x 30 x 1.4

$

$

Not available

92057

Cub Cadet KM-92057-1349

Chain, Reverse

$

$

Not available

92143

Cub Cadet KM-92143-1497

Collar, 8 x 14 x 10.5

$

$

Not available

480

Cub Cadet KM-480J2500

Circlip-Type-C, 25MM

$2.49

$

Usually ships in 2-5 days

0

480A

Cub Cadet KM-480J2800

Circlip-Type-C, 28 MM

$4.99

$

Usually ships in 2-5 days

0
