Big Country 414 (37AN414G710) - Cub Cadet 4x2 Utility Vehicle Engine Oil Pump Oil Filter Parts Diagram

4x2 Utility Vehicle

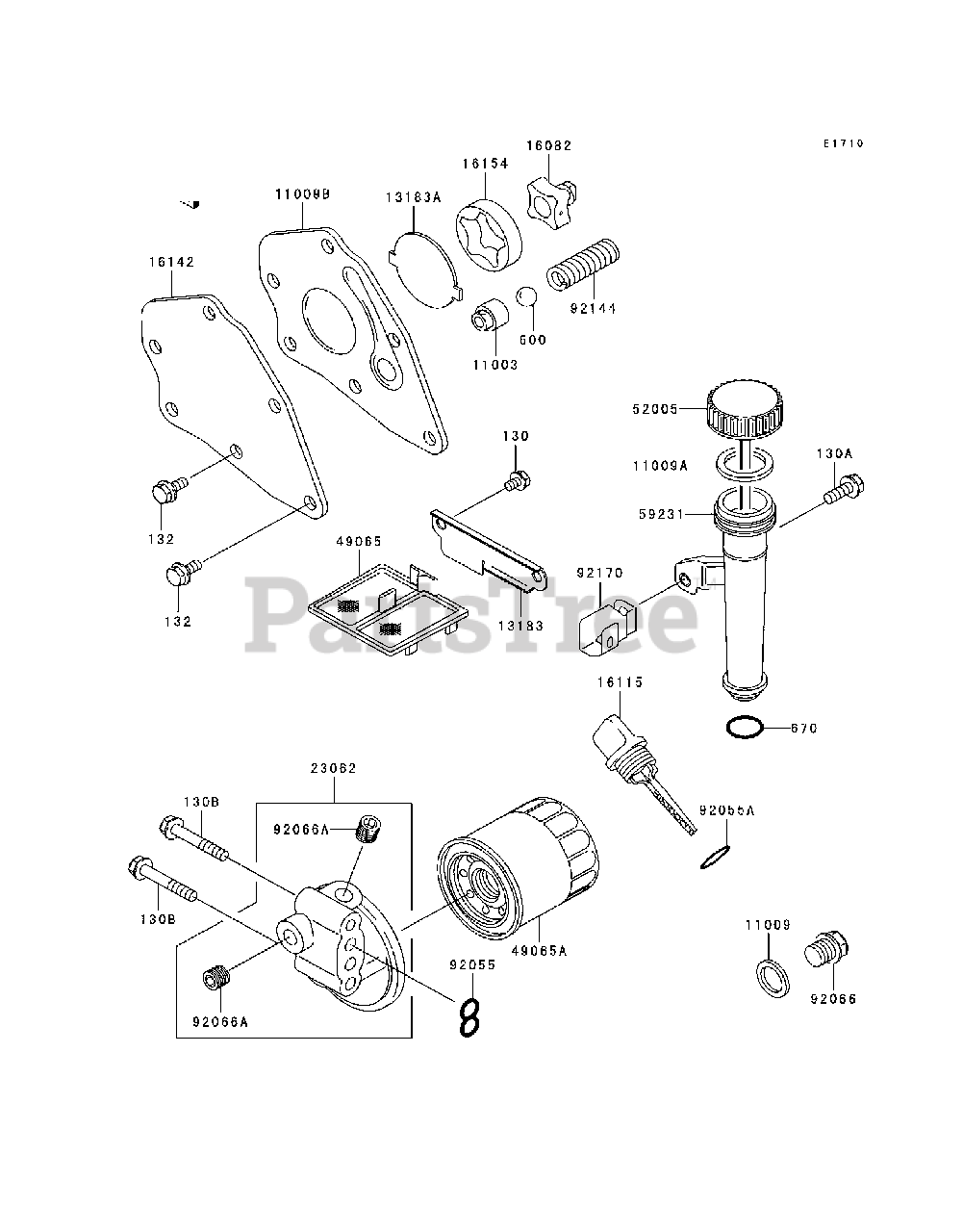

Engine Oil Pump Oil Filter Parts Diagram

  • Title

11003

Cub Cadet KM-11003-2089

Seat-Valve

$7.49

$

In Stock, only 1 left!

0

11009

Cub Cadet KM-11009-2175

Gasket

$1.99

$

In Stock, Qty 15

0

11009A

Cub Cadet KM-11009-2346

Gasket, Oil Gauge

$2.49

$

In Stock, Qty 6

0

11009B

Cub Cadet KM-11009-2828

Gasket, Oil Pump

$7.49

$

In Stock, Qty 20+

0

13183

Cub Cadet KM-13183-2295

Plate, Oil Filter

$1.99

$

In Stock, Qty 10

0

13183A

Cub Cadet KM-13183-2298

Plate, Oil Pump

$2.49

$

In Stock, only 1 left!

0

16082

Cub Cadet KM-16082-2062

Pump-Ass’y-Oil

$32.99

$

Usually ships in 2-5 days

0

16115

Cub Cadet KM-16115-2079

Cap-Oil Filler

$5.49

$

Usually ships in 2-5 days

0

16142

Cub Cadet KM-16142-2062

Cover-Pump

$7.49

$

In Stock, Qty 13

0

16154

Cub Cadet KM-16154-2054

Rotor-Pump, Out

$9.49

$

In Stock, only 2 left!

0

23062

Cub Cadet KM-23062-6004

Bracket-Comp

$56.99

$

In Stock, only 1 left!

0

49065

Cub Cadet KM-49065-2068

Filter-Oil

$7.99

$

Usually ships in 2-5 days

0

49065A

Cub Cadet KM-49065-2071

Filter-Oil
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

52005

Cub Cadet KM-52005-2113

Gauge

$13.99

$

Usually ships in 2-5 days

0

59231

Cub Cadet KM-59231-2072

Filler

$6.99

$

Usually ships in 2-5 days

0

92055

Cub Cadet KM-92055-2063

Ring-O

$4.49

$

In Stock, Qty 10

0

92055A

Cub Cadet KM-92055-2185

Ring-O, 20MM

$1.49

$

In Stock, only 2 left!

0

92066

Cub Cadet KM-92066-2203

Plug
(Superseded to KM-92066-2253)

$2.49

$

In Stock, only 2 left!

0

92066A

Cub Cadet KM-92066-2211

Plug

$2.99

$

Usually ships in 2-5 days

0

92144

Cub Cadet KM-92144-2202

Spring

$1.99

$

Usually ships in 2-5 days

0

92170

Cub Cadet KM-92170-2018

Clamp

$2.49

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130B0508

Bolt-Flanged, 5 x 8

$0.99

$

In Stock, Qty 8

0

130A

Cub Cadet KM-130B0616

Bolt-Flanged, 6 x 16
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

130B

Cub Cadet KM-130G0640

Bolt-Flanged, 6 x 40
(Superseded to KM-130BA0640)

$1.49

$

In Stock, only 1 left!

0

132

Cub Cadet KM-132G0612

Bolt-Flanged-Small

$

$

Currently unavailable

600

Cub Cadet KM-600A1000

Ball-Steel, 5/16"

$0.99

$

In Stock, Qty 7

0

670

Cub Cadet KM-670D2016

O Ring, 16MM

$1.99

$

In Stock, Qty 20+

0
