Big Country 414 (37AN414G710) - Cub Cadet 4x2 Utility Vehicle Engine and Transmission Accessories Parts Diagram

4x2 Utility Vehicle

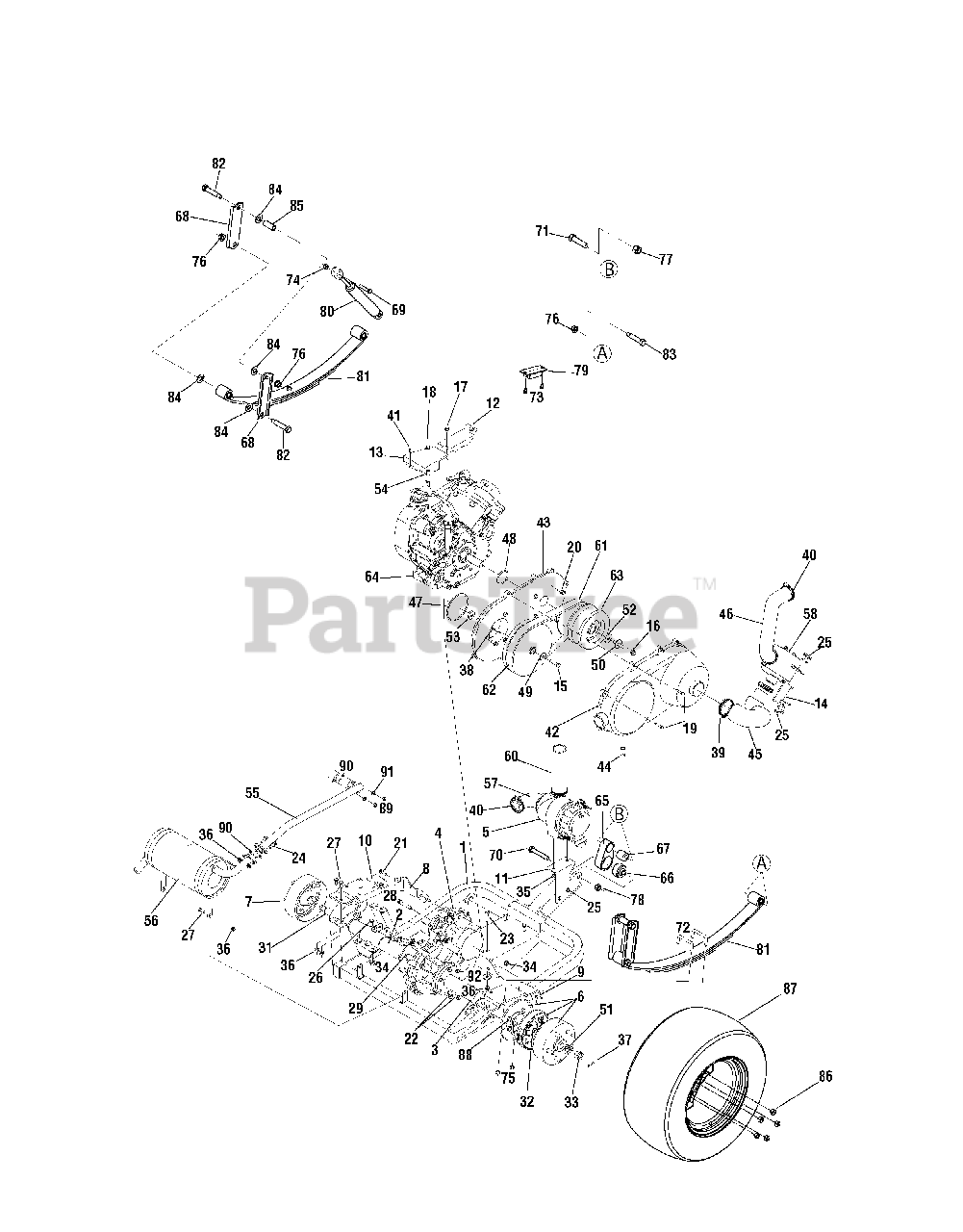

Engine and Transmission Accessories Parts Diagram

  • Title

1

Cub Cadet 607-04075

Kawasaki Cradle Assembly
(Superseded to 607-04075-0637)

Variations

Cub Cadet 607-04075-0637

CRADLE-REAR FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 607-04089

Pipe Assembly - LH

$

$

Not available

3

Cub Cadet 607-04090

Pipe Assembly - RH

$

$

Not available

4

Cub Cadet 618-04174

Kawasaki Gear Assembly

$

$

Not available

5

Cub Cadet 651-04074

Kawasaki Filter Assembly

Note: Engine

$

$

Not available

5

Cub Cadet 751-3194

Air Filter

Note: Not shown

$52.99

$

In Stock, only 2 left!

0

5

Cub Cadet 751-3197

Valve, Dust

Note: Not shown

$37.99

$

In Stock, only 4 left!

0

6

Cub Cadet 661-04010

Brake Assembly w/Drum - RH
(Superseded to 961-04010)

$

$

Not available

6

Cub Cadet 661-04012

Brake Assembly w/Out Drum - RH
(Superseded to 961-04012)

$188.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 661-04011

Brake Assembly w/Drum - LH
(Superseded to 961-04011)

$

$

Not available

7

Cub Cadet 661-04013

Brake Assembly w/Out Drum - LH
(Superseded to 961-04013)

$176.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 707-04344

Transmission Bracket

$

$

Not available

9

Cub Cadet 707-04345

Spring Mount - RH

Variations

Cub Cadet 707-04345-0637

BRACKET-SPRING (RH) MTG(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 707-04346

Spring Mount - LH

Variations

Cub Cadet 707-04346-0637

BRACKET-SPRING (LH) MTG(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 707-04355

Filter Bracket

Variations

Cub Cadet 707-04355-0637

FILTER MOUNTING BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 707-04358

Cont: Cvr
(Superseded to KM-14090-1141)

$

$

Not available

13

Cub Cadet 707-04359

Cont: Cvr
(Superseded to KM-14090-1361)

$

$

Not available

14

Cub Cadet 707-04374A

Kawasaki Filter Bracket

$

$

Not available

15

Cub Cadet 710-04263

Hex Screw, M8-1.25

$

$

Not available

16

Cub Cadet 710-04264

Hex Flange Screw, M10 x 102MM
(Superseded to KM-92150-1441)

$

$

Not available

17

Cub Cadet 710-04265

Hex Flange Screw, M8-1.25
(Superseded to KM-130B0812)

$0.99

$

Usually ships in 2-5 days

0

18

Cub Cadet 710-04267

Hex Flange Screw, 8MM x 1.125
(Superseded to KM-130J0830)

$

$

Not available

19

Cub Cadet 710-04268

Hex Flange Screw, M6 x 1.00
(Superseded to KM-132BB0630)

$

$

Not available

20

Cub Cadet 710-04269

Flange Screw, M8 x 1.125
(Superseded to KM-130D0820)

$

$

Not available

21

Cub Cadet 710-04272

Flange Screw, M8 x 1.125
(Superseded to KM-130H0820)

$

$

Not available

22

Cub Cadet 710-04276

Flange Screw, M8 x 1.125
(Superseded to KM-130BA0825)

$5.99

$

In Stock, Qty 5

0

23

Cub Cadet 710-0805

Hex Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-1238

Hex Screw, 5/16-18 x.875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-1617

Screw, 5/16-18 x.750

$

$

Currently unavailable

26

Cub Cadet 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 710-3008

Hex Screw, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-3011

Hex Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-3175

Hex Screw, M8-1.25

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 711-04262

OPP 4X2 Shaft
(Superseded to KM-13139-0008)

Note: (NOT SHOWN)

$

$

Not available

31

Cub Cadet 711-04266

OPP Transmission Axle - LH
(Superseded to KM-41068-1324)

$

$

Not available

32

Cub Cadet 711-04269

OPP Transmission Axle - RH
(Superseded to KM-41068-1245)

$

$

Not available

33

Cub Cadet 712-04072

Nut, M18-1.5

$

$

Not available

34

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0690

Hex Nut, M8-1.25

$

$

Not available

36

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 714-04035

Kawasaki Key
(Superseded to KM-92038-1053)

$

$

Not available

39

Cub Cadet 726-0476

Adj. Hose Clamp

$12.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 726-0174

Adj. Hose Clamp

$9.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 728-04018

Blind Rivet

$

$

Currently unavailable

42

Cub Cadet 731-04770

Case - RH
(Superseded to KM-14024-1981)

$

$

Not available

43

Cub Cadet 731-04771

Case - LH
(Superseded to KM-32099-1125)

$

$

Not available

44

Cub Cadet 731-04772

Boot
(Superseded to KM-49006-1199)

$

$

Not available

45

Cub Cadet 731-04773

Duct
(Superseded to KM-14073-1492)

$

$

Not available

46

Cub Cadet 731-04774

Duct
(Superseded to KM-14073-1491)

$

$

Not available

47

Cub Cadet 735-04044

Kawasaki O-Ring
(Superseded to KM-92055-1486)

$

$

Not available

48

Cub Cadet 735-04045

Kawasaki O-Ring, 50 x 4
(Superseded to KM-92055-1501)

$

$

Not available

49

Cub Cadet 736-04136

Kawasaki Washer, 8.5 x 38 x 4
(Superseded to KM-92022-1633)

$

$

Not available

50

Cub Cadet 736-04137

Kawasaki Washer, 10 x 32 x 4.5
(Superseded to KM-92022-1641)

$

$

Not available

51

Cub Cadet 736-04144

Washer, 34MM x 18MM x 4MM

$

$

Not available

52

Cub Cadet 750-04306

Kawasaki Spacer w/ Key
(Superseded to KM-92026-1395)

$

$

Not available

53

Cub Cadet 750-04307

Kawasaki Spacer
(Superseded to KM-92026-1396)

$

$

Not available

54

Cub Cadet 750-04308

Spacer, 9 x 13 x 17.2
(Superseded to KM-92027-1064)

$

$

Not available

55

Cub Cadet 751-10097

Kawasaki Exhaust Pipe

$95.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 751-10098

Kawasaki Exhaust Muffler

$

$

Not available

57

Cub Cadet 751-10102

Kawasaki Air Filter Hose

$

$

Not available

58

Cub Cadet 751-10108

Kawasaki Air Filter Assembly 11010-1735
(Superseded to 951-10108)

$

$

Not available

59

Cub Cadet 751-10109

Kawasaki Reg.
(Superseded to KM-21066-2004)

Note: (NOT SHOWN) REGULATOR-VOLTAGE

$100.99

$

In Stock, only 1 left!

0

60

Cub Cadet 751-10110

Kawasaki Airbox Hose

$

$

Not available

61

Cub Cadet 754-04054

Kawasaki Belt
(Superseded to KM-59011-1071)

$

$

Not available

62

Cub Cadet 756-04116

Kawasaki Driven Pulley
(Superseded to KM-49094-1054)

$

$

Not available

63

Cub Cadet 756-04117

Kawasaki Drive Pulley
(Superseded to 956-04117)

$

$

Not available

64

Engine

Note: For reference

$

$

Not available

65

Cub Cadet 707-04109

Bushing Plate

$

$

Currently unavailable

66

Cub Cadet 741-04035

Bushing

$

$

Currently unavailable

67

Cub Cadet 741-0758

Bearing, 63ID x 1.19OD x 1.25

$56.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 707-04119

Shackle Plate

$

$

Not available

69

Cub Cadet 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

70

Cub Cadet 710-04128

Hex Screw, M12-1.75 x 75MM

$

$

Not available

71

Cub Cadet 710-04129

Hex Screw, 5/8-11 2.5 Lg.

$11.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 710-04221

OPP Transaxle U Bolt

$

$

Not available

73

Cub Cadet 710-0599

Self Tap Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 712-0130

Hex Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

75

Cub Cadet 712-0355

Hex Lock Nut, 3/8-24
(Superseded to 912-0355)

$5.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

77

Cub Cadet 712-3016

Hex Lock Nut, 5/8-11

$6.99

$

In Stock, Qty 13

0

78

Cub Cadet 712-3103

Flange Lock Nut, M12-1.75

$4.49

$

In Stock, only 2 left!

0

79

Cub Cadet 731-04016

Extension Suspension Bumper

$45.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 732-04043

Shock Absorber, 2.50 Stroke
(Superseded to 932-04043)

$195.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 732-04191

Leaf Spring

$

$

Not available

82

Cub Cadet 738-04035

Shoulder Screw,.550 x 2.290
(Superseded to 938-04035)

$

$

Not available

83

Cub Cadet 738-04042

Shoulder Screw,.550 x 2.13

$

$

Not available

84

Cub Cadet 741-0405

Thrust Bearing,.56 ID x 1.25OD x.06
(Superseded to 941-0405)

$

$

Not available

85

Cub Cadet 750-04137

Bushing,.75OD x.562ID x 1.75

$

$

Not available

86

Cub Cadet 712-04071

Lug Nut, 7/16-20

$

$

Not available

87

Cub Cadet 634-04193

Wheel Assembly, 23 x 10.5 x 12 RH

$

$

Currently unavailable

87

Cub Cadet 634-04018

Rim 12 x 5

Note: Not shown

$

$

Not available

87

Cub Cadet 734-04143

Tire 23 x 10 RH

Note: Not shown

$199.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 634-04194

Wheel Assembly, 23 x 10.5 x 12 LH

Note: Not shown

$

$

Currently unavailable

87

Cub Cadet 734-04142

Tire 23 x 10 LH

Note: Not shown

$

$

Not available

88

Cub Cadet 710-04317

Hex Screw, 10-1.25 x 16MM

$

$

Not available

89

Cub Cadet 712-04080

Hex Nut, M8-1.25
(Superseded to KM-317R0800)

$2.99

$

In Stock, Qty 16

0

90

Cub Cadet 721-04104

Kawasaki Exhaust Pipe Gasket

$

$

Currently unavailable

91

Cub Cadet 736-04156

Lock Washer, 8MM
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0

92

Cub Cadet 736-0231

Flat Washer .344 x 1.125 x .12

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 737-04158

Transmission Oil, 80W-90
(Superseded to 490-000-V045)

Note: Not shown

$19.99

$

In Stock, only 2 left!

0
