Big Country 414 (37AN414G710) - Cub Cadet 4x2 Utility Vehicle Electrical System Parts Diagram

4x2 Utility Vehicle

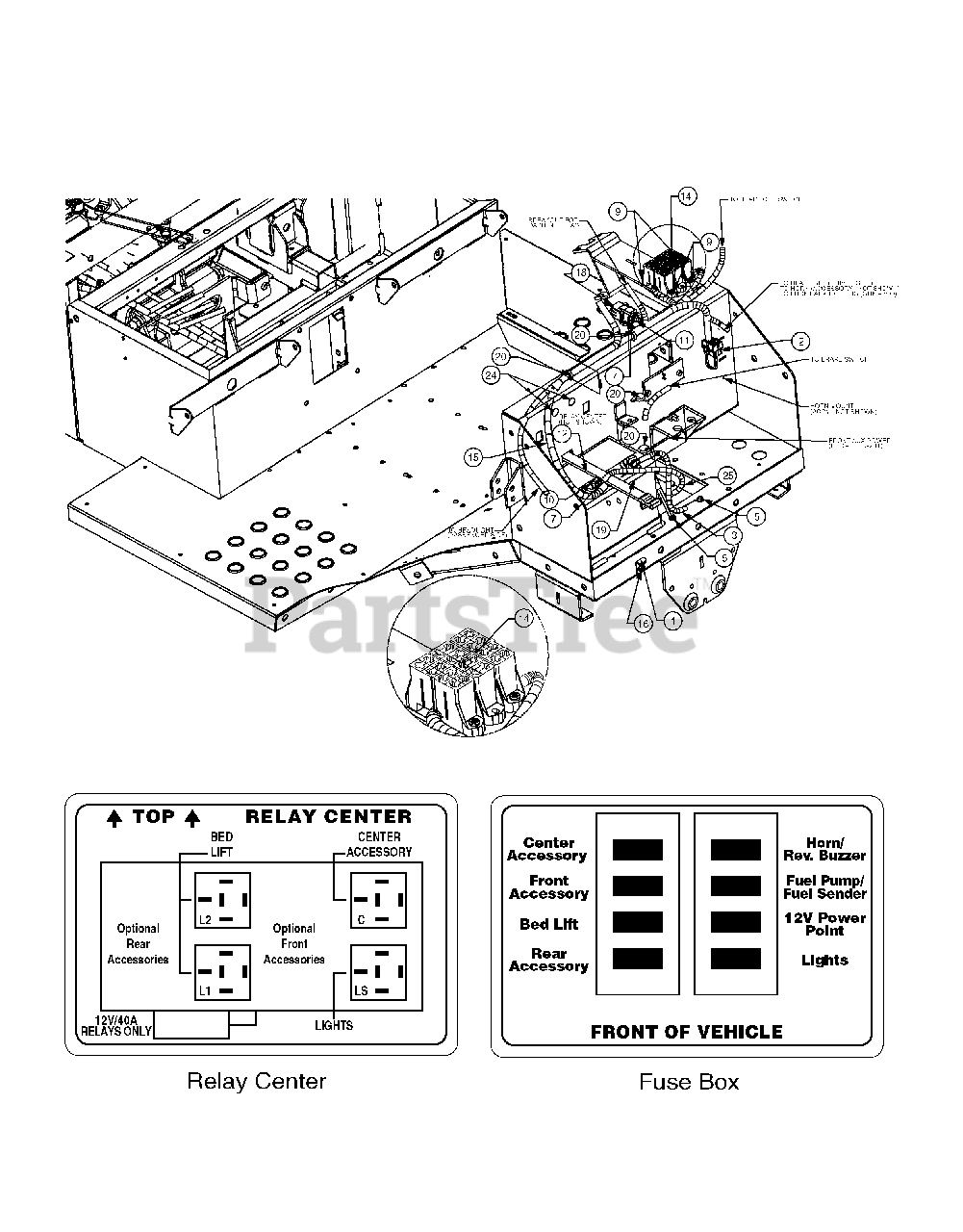

Electrical System Parts Diagram

  • Title

1

Cub Cadet 16606

Retainer Hook Bracket
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 629-04001

Starter Harness Assembly
(Superseded to 929-04001)

$

$

Not available

3

Cub Cadet 629-1095

Motor Ground Harness Assembly

$

$

Not available

4

Cub Cadet 710-04030

Screw, 1/4-20 x .50

$

$

Not available

5

Cub Cadet 710-0599

Self-tapping Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1260A

Screw, 5/16-18 x.750 (NOT SHOWN)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0703

Hex Carriage Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0788

Self-tapping Screw, 1/4-20 x 1.000 (NOT SHOWN)

$7.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-3009

Screw, #10-24 x 0.75

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

11

Cub Cadet 721-3049

Protective Cover

$

$

Not available

12

Cub Cadet 723-3064

Battery Strap

$29.99

$

In Stock, only 4 left!

0

13

Cub Cadet 725-0157

Cable Tie, 3/16 x.05 x 7.4 (NOT SHOWN)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-04008

5 Amp Fuse

$

$

Not available

15

Cub Cadet 725-04065

Utility Main Harness
(Superseded to 925-04065)

$

$

Not available

16

Cub Cadet 725-04066

Motor Harness

$

$

Not available

18

Cub Cadet 725-1657A

Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

19

Cub Cadet 725-1738A

Battery
(Superseded to 925-1707D)

$

$

Not available

20

Cub Cadet 726-0470

Cable Tie, .19 x 8.39 Tree Mount

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 726-04002

Double Tube Clamp (NOT SHOWN)

$

$

Not available

22

Cub Cadet 736-0329

Lock Washer, 1/4 (NOT SHOWN)
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

24

Cub Cadet 726-0465

Retainer Clip,.250 x.267

$4.99

$

In Stock, Qty 16

0

25

Cub Cadet 625-04008

Conv. Conn. Assembly
(Superseded to 925-04008)

$

$

Not available
