Big Country 411 (37AN411G710) - Cub Cadet 4x2 Utility Vehicle Steering & Fuel System Parts Diagram

4x2 Utility Vehicle

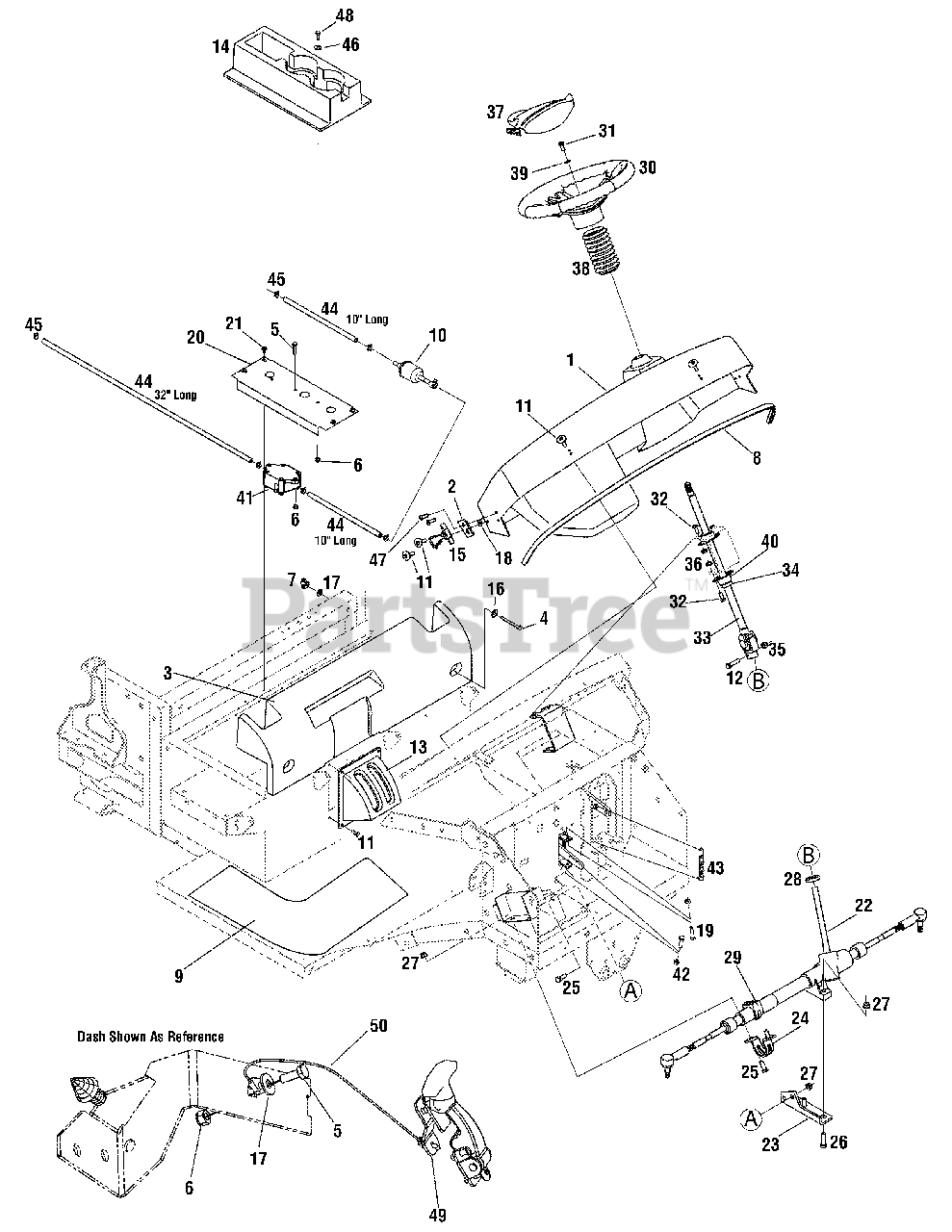

Steering & Fuel System Parts Diagram

  • Title

1

Cub Cadet 731-04676

Dash Panel

$

$

Not available

2

Cub Cadet 707-04252

Hood Mounting Plate

$

$

Not available

3

Cub Cadet 731-04766

Panel Cover

$

$

Not available

4

Cub Cadet 710-0564

Hex Screw, 1/4-20 x 2.75

$6.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-3015

Hex Screw, 1/4-20 x.75, Gr5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0324

Hex Lock Nut, Nylon, 1/4-20

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 721-04070A

Trim, Bulb Seal, 1/4
(Superseded to 721-04070A-46)

$

$

Not available

9

Cub Cadet 723-04019

Foot Pad, Abrasive

$

$

Not available

10

Cub Cadet 751-3125

Fuel Filter

$

$

Not available

11

Cub Cadet 728-04004

Rivet, Pop,.188
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0347

Hex Screw, 3/8-16, 1.75, GR5

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 731-2953A

Panel, Shift Cover
(Superseded to 931-2953A)

$

$

Not available

14

Cub Cadet 731-2648

Console, Cup Holder

$

$

Not available

15

Cub Cadet 735-04038

Handle, Latch
(Superseded to 935-04038)

$15.99

$

In Stock, Qty 14

0

16

Cub Cadet 736-0195

Flat Washer, 349 x.875 x.04

$

$

Not available

17

Cub Cadet 736-0173

Washer, Flat,.28 x.74 x.063

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0400

Washer, Flat,.194 x.62 x.063

$5.49

$

In Stock, Qty 12

0

19

Cub Cadet 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 707-04386

Plate, Console Support
(Superseded to 707-04386-0637)

Variations

Cub Cadet 707-04386-0637

PLATE-CONSOL SUPT - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 617-0075A

Gear Assembly, Steering
(Superseded to 917-0075A)

$

$

Not available

23

Cub Cadet 707-04074

Steering Bracket, Sector Clamp

Variations

Cub Cadet 707-04074-0637

BRACKET-STEERING ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

24

Cub Cadet 707-0417

Bracket, Steering Mounting

$

$

Not available

25

Cub Cadet 710-3094A

Hex Screw, 3/8-16, 1.00, Gr8

$4.49

$

In Stock, Qty 11

0

26

Cub Cadet 710-04321

Hex Screw, 3/8-16, 1.50, Gr8

$

$

Not available

27

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 735-0801

Grommet, Steering Shaft

$

$

Not available

29

Cub Cadet 741-0763

Bushing, Rubber

$

$

Not available

30

Cub Cadet 631-04028

Wheel, Steering

$69.99

$

In Stock, only 1 left!

0

31

Cub Cadet 710-1880

Hex Screw, 5/16-18,.75, Gr5, Patch

$4.99

$

In Stock, Qty 11

0

32

Cub Cadet 710-3008

Hex Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 711-04231

Shaft, Steering, 5/8 Spline

$

$

Not available

34

Cub Cadet 711-1774

Collar, .75

$

$

Not available

35

Cub Cadet 712-0130

Nut, Hex Lock Nylon, 3/8-16

$3.99

$

In Stock, Qty 11

0

36

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 731-04532A

Cover, Steering Wheel
(Superseded to 731-04532B)

$24.99

$

In Stock, Qty 12

0

38

Cub Cadet 731-0954

Bellow, Steering, 4.75 Lg
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0242

Washer, Bell,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 741-04000

Bearing, Flange,.75 ID, Self-Aligning

$

$

Not available

41

Cub Cadet 751-10148

Pump, Fuel
(Superseded to KM-49040-2067)

$

$

Not available

42

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 732-0428A

Extension Spring

$

$

Not available

44

Cub Cadet 751-0535-60

Fuel Line Hose
(Superseded to 751-10349-72)

Note: 54 inches in length

$60.99

$

In Stock, only 1 left!

0

45

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0356

Washer, Bell.39 x 1.38 x.062
(Superseded to 936-0356)

$

$

Not available

47

Cub Cadet 728-0123

Pop Rivet, 3/16 dia.x.450
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 710-0607

Self-tap Screw5/16-18

$6.99

$

In Stock, Qty 11

0

49

Cub Cadet 707-04390

Hood Cable Mount Bracket

$

$

Not available

50

Cub Cadet 746-04160

Hood Cable

$

$

Not available
