Big Country 411 (37AN411G710) - Cub Cadet 4x2 Utility Vehicle Pedals & Dash Parts Diagram

4x2 Utility Vehicle

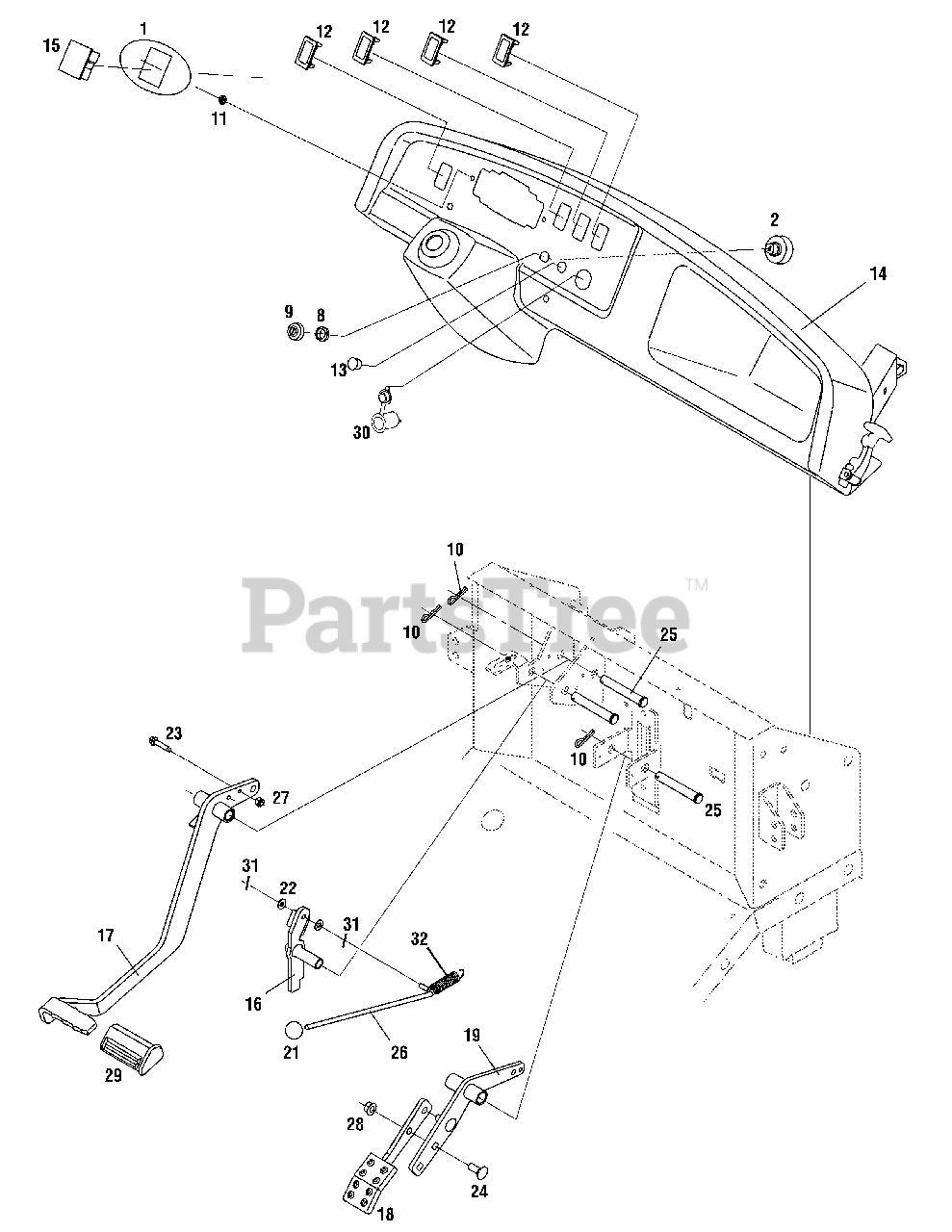

Pedals & Dash Parts Diagram

  • Title
1

Cub Cadet 731-04755

Instrument Cover

$

$

Not available

2

Cub Cadet 725-3284A

Switch, Key
(Superseded to 925-3284A)

$64.99

$

In Stock, Qty 11

0

8

Cub Cadet 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

9

Cub Cadet 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 714-0101

Internal Cotter Pin

$4.99

$

In Stock, only 1 left!

0

11

Cub Cadet 726-0293

Nut, Retainer, 1/8

$

$

Not available

12

Cub Cadet 731-04010

Switch Panel

$20.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-04023

Plug, Horn Switch

$

$

Not available

14

Cub Cadet 731-04676

Dash Panel

$

$

Not available

15

Cub Cadet 725-04022

Hour Meter
(Superseded to 925-04022B)

$146.99

$

In Stock, Qty 5

0

16

Cub Cadet 607-04044

Lever, Parking Brake

$

$

Not available

17

Cub Cadet 607-04076

Pedal Assembly, Brake

$

$

Not available

18

Cub Cadet 607-04082

Pedal Assembly, Throttle

$111.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 607-04083

Pedal Arm Assembly, Throttle

$135.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 720-04001

Knob, Ball

$

$

Not available

22

Cub Cadet 736-0463

Washer, Flat .25 x .630 x .0515

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0809

Screw, Self-Tapping, 1/4-20x1.25

$6.99

$

In Stock, Qty 17

0

24

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 711-04067

Pin, Clevis.50 x 3.25
(Superseded to 911-04067)

$6.49

$

In Stock, only 1 left!

0

26

Cub Cadet 711-1765

Rod, Brake Lock

$

$

Not available

27

Cub Cadet 712-0324

Nut, Hexlock,` 1/4-20 GR 8

$3.99

$

In Stock, Qty 16

0

28

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 735-3049A

Pad, Brake Pedal

$12.99

$

In Stock, only 1 left!

0

30

Cub Cadet 725-2003

Rcptl, Pwr, 12V

$42.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 714-0127

Pin, Cotter, 1/16

$

$

Not available

32

Cub Cadet 732-1187

Spring, Extension, .637 x 2.972

$

$

Not available
