Big Country 411 (37AN411G710) - Cub Cadet 4x2 Utility Vehicle Cargo Bed & Rear Fenders Parts Diagram

4x2 Utility Vehicle

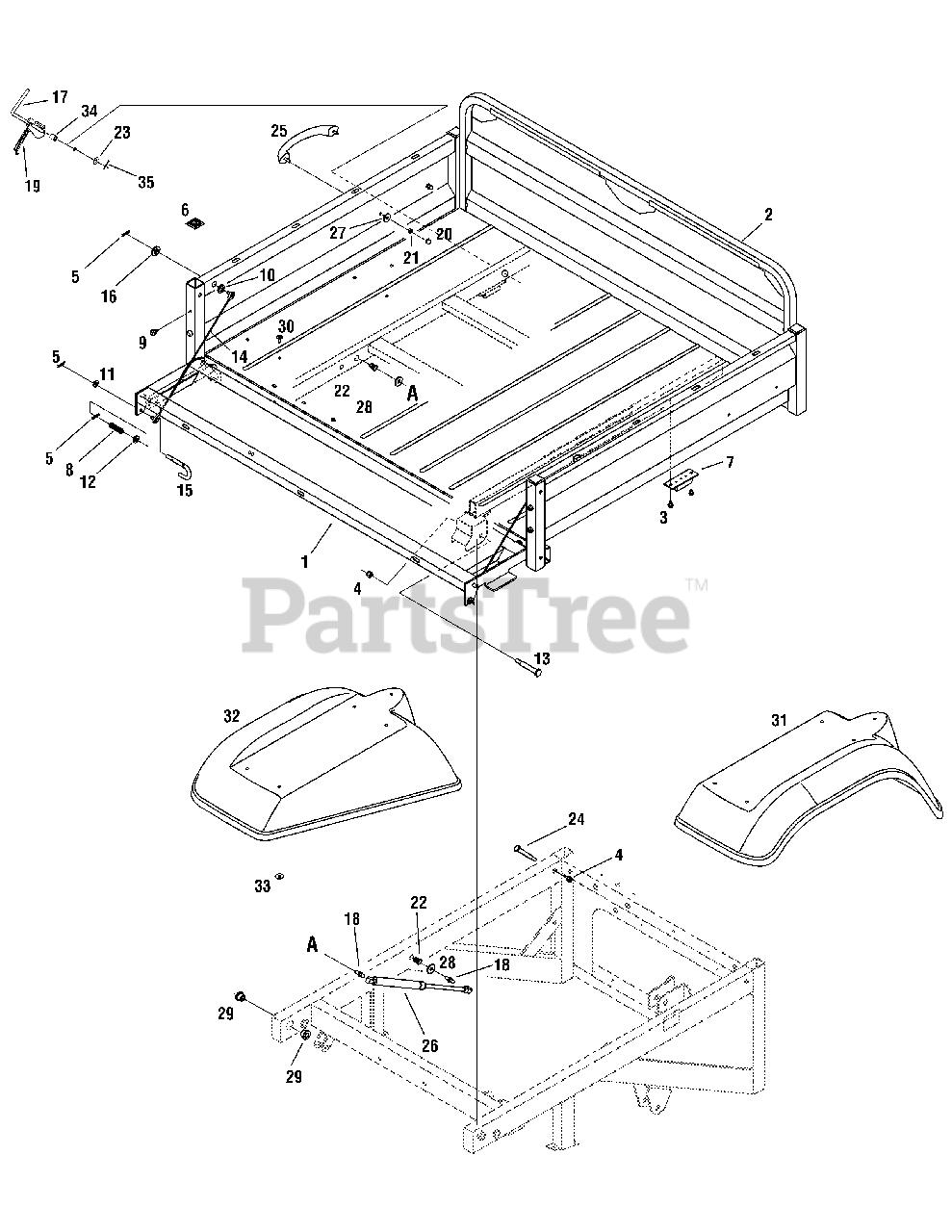

Cargo Bed & Rear Fenders Parts Diagram

  • Title

1

Cub Cadet 607-04028A

Tailgate Assembly

Variations

Cub Cadet 607-04028A-0637

TAILGATE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 607-04074

Bed Assembly
(Superseded to 907-04074)

$

$

Not available

3

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0130

Nut, Nylon Hex Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

5

Cub Cadet 714-0104

Cotter Pin, .072 Dia x 1.13

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 720-04036

Plug Cap

$

$

Not available

7

Cub Cadet 731-04016

Bumper, Extension Suspension

$45.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 732-0306

Compression Spring, .406 x .531 x
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

9

Cub Cadet 735-0271A

Bumper, .62Dia x .3

$8.99

$

In Stock, only 2 left!

0

10

Cub Cadet 736-0162

Washer, Flat, .64 ID x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-3008

Washer, Flat, .344 x .750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 738-3056

Screw, Shoulder, 1/2 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

14

Cub Cadet 746-0968

Cable, LIft 16.16 LG

$19.99

$

In Stock, Qty 20+

0

15

Cub Cadet 747-1116

Handle, Deck Release

$12.99

$

In Stock, Qty 6

0

16

Cub Cadet 748-0331

Spacer, Shoulder .625 Dia x .324 Dia
(Superseded to 948-0331)

$

$

Not available

17

Cub Cadet 607-04108

Latch Assembly

$

$

Not available

18

Cub Cadet 710-04166

Stud, Ball 5/16-18

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-0428A

Extension Spring

$

$

Not available

20

Cub Cadet 712-0264

Nut, Acorn 1/4-20 w/o Lock

$3.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-0324

Nut, Hex lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

22

Cub Cadet 712-0703A

Nut, Insert 5/16-18

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0300

Flat Washer,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 738-3056

Shoulder Bolt, 3/8-16 x .5OD x 2.0
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

25

Cub Cadet 731-04174

Handle, Bag w/Screw

$33.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-04109

Spring, Gas .91 Stroke
(Superseded to 932-04109B)

$87.99

$

In Stock, only 1 left!

0

27

Cub Cadet 736-0176

Washer, Flat .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

28

Cub Cadet 736-0231

Washer, Flat .344 x 1.125 x .120

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 741-0248

Flange Bearing, .51

$9.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 728-04004

Pop Rivet, .188
(Superseded to 928-04004)

$7.99

$

In Stock, only 1 left!

0

31

Cub Cadet 731-04520

Fender, Rear RH, Camo
(Superseded to 931-04520)

$

$

Not available

32

Cub Cadet 731-04521

Fender, Rear LH, Camo
(Superseded to 931-04521)

$

$

Not available

33

Cub Cadet 736-0400

Flat Washer, .194 x .62 x .063

$5.49

$

In Stock, Qty 12

0

34

Cub Cadet 750-0807

Spacer,.385 x.625 x.700

$6.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0
