BH6575 A - Honda Back Hoe Attachment, Made in USA SUB-FRAME ASSEMBLY (BH6575) Parts Diagram

Back Hoe Attachment, Made in USA

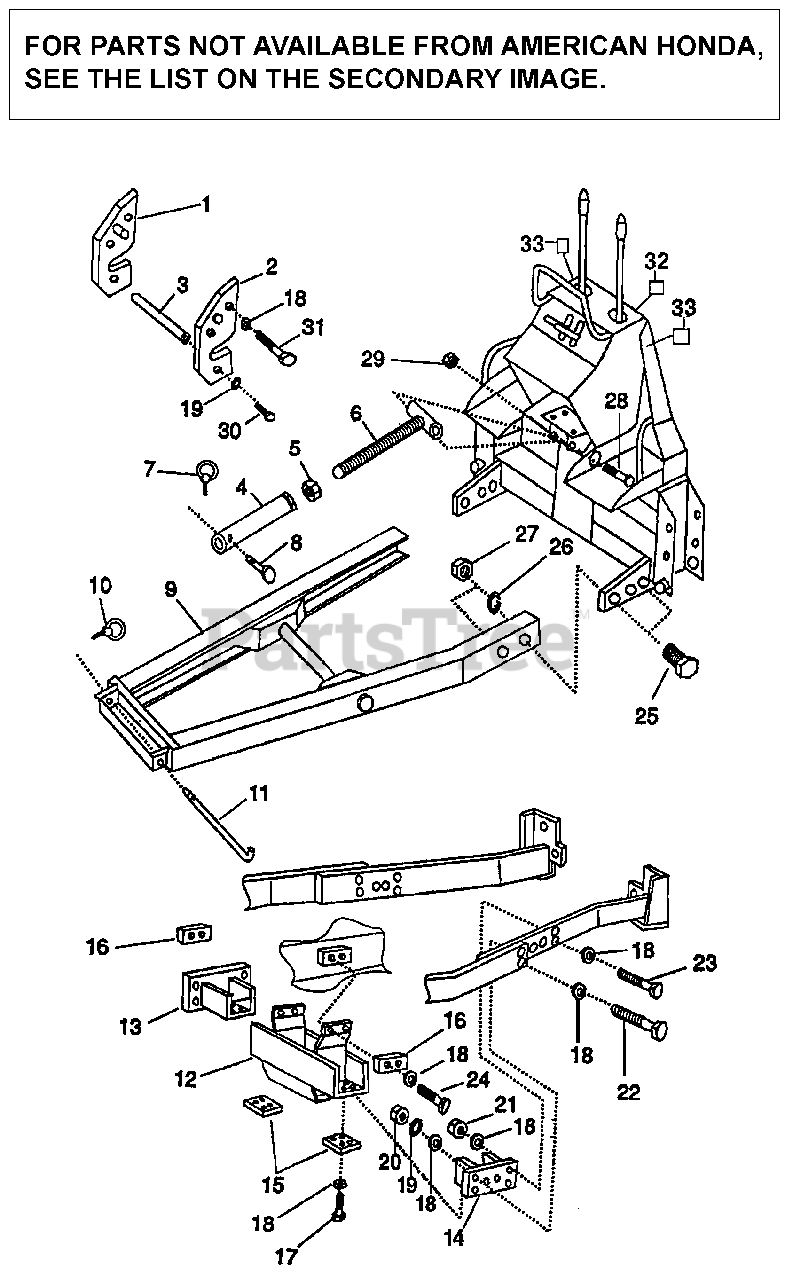

SUB-FRAME ASSEMBLY (BH6575) Parts Diagram

  • Title

1

Honda 72995-1027

BRACKET, R. RR. SELF MOUNTING

$282.99

$

Usually ships in 3-6 days

0

2

Honda 72995-1028

BRACKET, L. RR. SELF MOUNTING

$282.99

$

Usually ships in 3-6 days

0

3

Honda 72995-1022

SHAFT, CROSS (1X11.8)

$70.99

$

Usually ships in 3-6 days

0

4

Honda 72995-1054

LINK (UPPER) (OUTER)

$113.99

$

Usually ships in 3-6 days

0

6

Honda 72995-1055

LINK (UPPER) (INNER)

$93.99

$

Usually ships in 3-6 days

0

11

Honda 72995-1023

PIN (19X397)

$102.99

$

Usually ships in 3-6 days

0

12

Honda 72995-1026

PLATE, CROSSMEMBER (NOT AVAILABLE)

$

$

Not available

13

Honda 72995-1029

BRACKET, R. CROSSMEMBER

$121.99

$

Usually ships in 3-6 days

0

14

Honda 72995-1030

BRACKET, L. CROSSMEMBER

$118.99

$

Usually ships in 3-6 days

0

24

Honda 72995-1088

BOLT (12X35)

$3.99

$

Usually ships in 3-6 days

0

31

Honda 72995-1024

BOLT (12X80)

$18.99

$

Usually ships in 3-6 days

0

32

Honda 72995-1017

LABEL, WARNING

$23.99

$

Usually ships in 3-6 days

0

33

Honda 72995-1016

LABEL, DANGER

$27.99

$

Usually ships in 3-6 days

0
