BH6575 A - Honda Back Hoe Attachment, Made in USA CONSOLE VALVE ASSEMBLY (BH6575) Parts Diagram

Back Hoe Attachment, Made in USA

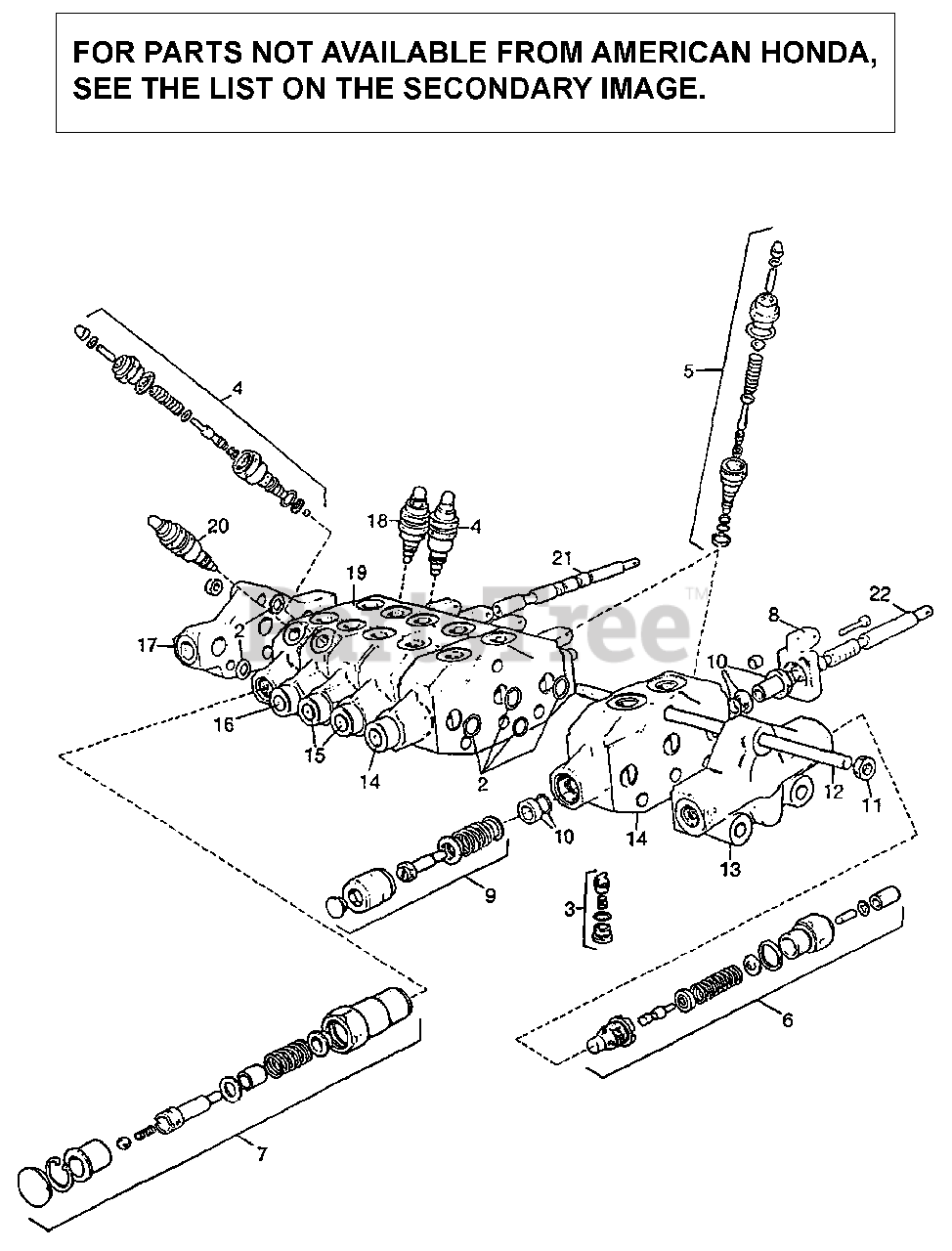

CONSOLE VALVE ASSEMBLY (BH6575) Parts Diagram

  • Title

1

Honda 72995-1056

VALVE, CONSOLE

$2867.99

$

Usually ships in 3-6 days

0

2

Honda 72995-1092

REPAIR KIT, SECTION SEAL

$

$

Not available

3

Honda 72995-1093

VALVE ASSY., CHECK

$66.99

$

Usually ships in 3-6 days

0

4

Honda 72995-1094

VALVE, SHOCK/DAMPENING (2000PSI)

$306.99

$

Usually ships in 3-6 days

0

5

Honda 72995-1095

VALVE, SHOCK/DAMPENING (2500PSI)

$356.99

$

Usually ships in 3-6 days

0

6

Honda 72995-1096

VALVE ASSY., RELIEF

$244.99

$

Usually ships in 3-6 days

0

7

Honda 72995-1097

CONTROL ASSY., SPOOL POSITION

$275.99

$

Usually ships in 3-6 days

0

8

Honda 72995-1098

CONTROL ASSY., SPOOL POSITION

$88.99

$

Usually ships in 3-6 days

0

9

Honda 72995-1099

REPAIR KIT, SPOOL

$72.99

$

Usually ships in 3-6 days

0

10

Honda 72995-1100

TIE ROD (8X276MM)

$60.99

$

Usually ships in 3-6 days

0

12

Honda 72995-1101

INLET, FR.

$482.99

$

Usually ships in 3-6 days

0

13

Honda 72995-1102

SEGMENTS, DIPPER STICK AND BUCKET

$1066.99

$

Usually ships in 3-6 days

0

14

Honda 72995-1103

SEGMENT, STABILIZER

$722.99

$

Usually ships in 3-6 days

0

15

Honda 72995-1104

SEGMENT, SWING

$1368.99

$

Usually ships in 3-6 days

0

16

Honda 72995-1105

EX., STANDARD

$256.99

$

Usually ships in 3-6 days

0

17

Honda 72995-1106

VALVE, SHOCK/DAMPENING (3500PSI)

$761.99

$

Usually ships in 3-6 days

0

18

Honda 72995-1107

BRACKET, LEVER

$38.99

$

Usually ships in 3-6 days

0

19

Honda 72995-1108

SEGMENT, BOOM

$1651.99

$

Usually ships in 3-6 days

0

20

Honda 72995-1109

VALVE, SHOCK/DAMPENING (2500PSI)

$

$

Not available
