BH 600 (82363) - Snapper Black Hawk 21" Walk-Behind Mower Deck, Wheels & Discharge Components Parts Diagram

Black Hawk 21" Walk-Behind Mower

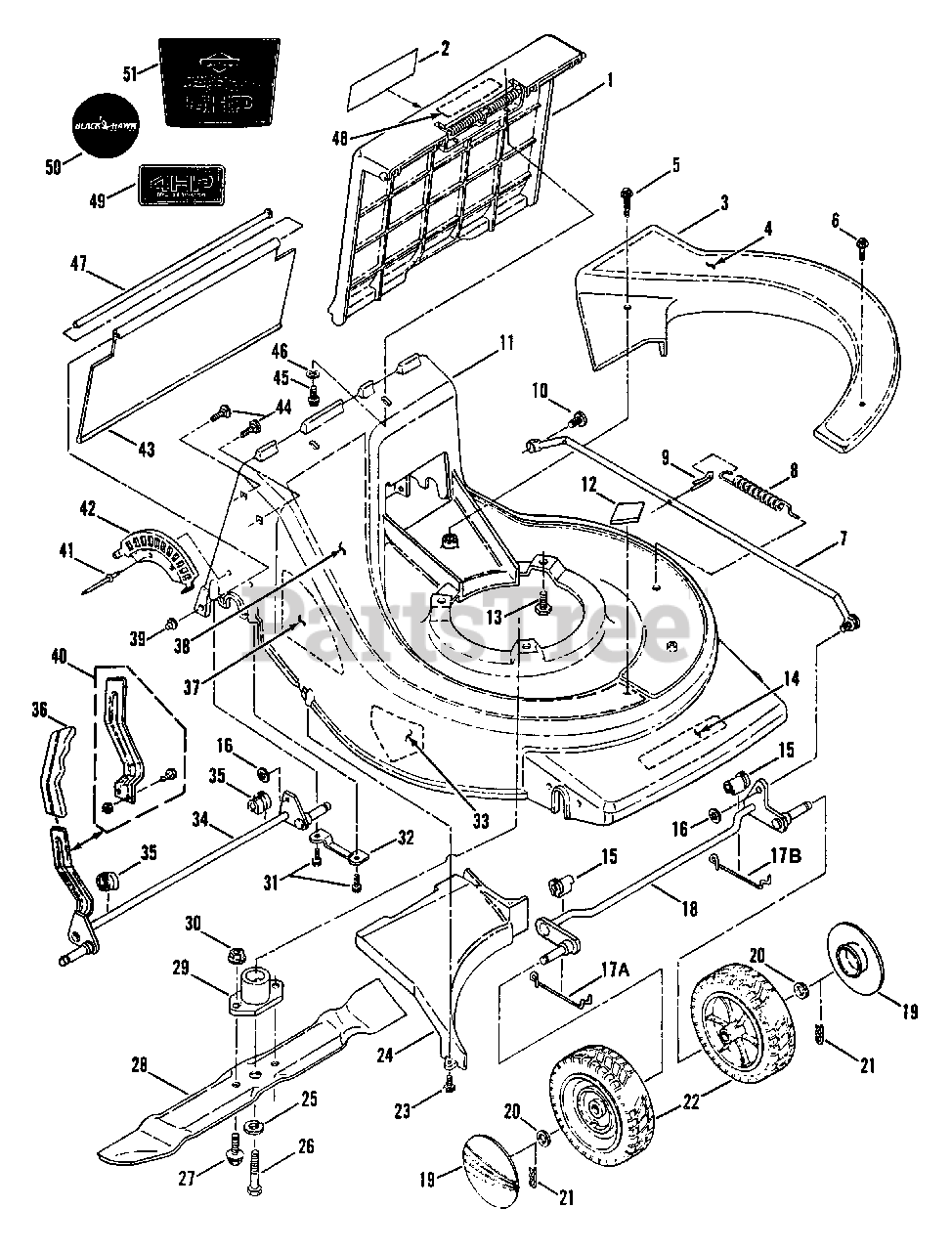

Deck, Wheels & Discharge Components Parts Diagram

  • Title

1

Snapper 7052881

ASSEMBLY, Discharge Door
(Superseded to 7052881YP)

$75.99

$

In Stock, only 1 left!

0

2

Snapper 7026236

DECAL, Discharge Door
(Superseded to 7026236YP)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 7024752

COVER, Belt/Tie Bar
(Superseded to 7024752YP)

$35.99

$

Usually ships in 2-12 days

0

4

Snapper 7026235

DECAL, Belt Cover

$

$

Currently unavailable

5

Snapper 7091201

SCREW, #10-24 x 1-1/2" Slotted, Hex Washer Head, Self-Tapping
(Superseded to 7091201YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7091213

SCREW, #10-24 x 1" Slotted, Hex Washer Head, Self-Tapping
(Superseded to 7091213YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7041364

ASSEMBLY, Tie Bar
(Superseded to 7041364AYP)

$119.99

$

Usually ships in 2-12 days

0

8

Snapper 7024751

SPRING, Tie Bar
(Superseded to 7024751YP)

$12.99

$

Usually ships in 2-12 days

0

9

Snapper 7091598

COTTER-PIN, 1/8 x 3/4"
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

10

Snapper 7091232

PIN, Tie Bar, 3/8 x 5/8"
(Superseded to 7091232YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7024566

DECK, 21" Cast Aluminum
(Superseded to 691178)

$5.49

$

In Stock, Qty 9

0

12

Snapper 7026588

DECAL, Premium Quality Medallion

$

$

Currently unavailable

13

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Head, Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7026228

NAMEPLATE, BLACKHAWK

$

$

Not available

Snapper 7026587

NAMEPLATE, BLACKHAWK, Recycling Mulcher

$

$

Not available

15

Snapper 7024558

BUSHING, Front Axle
(Superseded to 7024558YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7013946

RETAINER, Wheel
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

17A

Snapper 7033960

SPRING, Axle Retaining (Right Hand)
(Superseded to 7033960YP)

$5.49

$

Usually ships in 2-12 days

0

17B

Snapper 7033954

SPRING, Axle Retaining (Left Hand)
(Superseded to 7033954YP)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7041344

ASSEMBLY, Front Axle
(Superseded to 7041344YP)

$115.99

$

Usually ships in 2-12 days

0

19

Snapper 7016152

HUB-CAP

$

$

Not available

20

Snapper 7091192

WASHER, 1/2" Flat
(Superseded to 7091192SM)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7091193

HAIRPIN, .062 x .900"
(Superseded to 7091193YP)

$5.99

$

Usually ships in 2-12 days

0

22

Snapper 7052863

ASSEMBLY, Wheels
(Superseded to 7052863YP)

$37.99

$

Usually ships in 2-12 days

0

23

Snapper 7091075

SCREW, #10-24 x 5/8" Slotted, Hex Washer Head, Self-Tapping
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

24

Snapper 7024595

BAFFLE, Discharge
(Superseded to 7024595YP)

$26.99

$

Usually ships in 2-12 days

0

25

Snapper 7079268

WASHER, 3/8 Split Lock (Heavy)
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

26

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

27

Snapper 7091328

BOLT, 3/8-16 x 1-1/4" Hx. Flg. Lk.
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 7026427

BLADE, 21" Bagging
(Superseded to 7026427BMYP)

Note: (Shown)

$

$

Not available

Snapper 7026428

BLADE, 21" Mulching
(Superseded to 7026428BZYP)

$29.99

$

In Stock, only 1 left!

0

Snapper 7033956

BLADE, 21" Recycling
(Superseded to 7033956YP)

$25.99

$

Usually ships in 2-12 days

0

29

Snapper 7026631

HUB, Blade Drive

$

$

Not available

30

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

32

Snapper 7033732

SUPPORT, Rear Axle
(Superseded to 7033732YP)

$9.99

$

Usually ships in 2-12 days

0

33

Snapper 7013010

DECAL - WARNING
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

34

Snapper 7041376

ASSEMBLY, Rear Axle
(Superseded to 7041376YP)

$256.99

$

Usually ships in 2-12 days

0

35

Snapper 7024883

BUSHING, Rear Axle
(Superseded to 7024883YP)

$7.49

$

Usually ships in 2-12 days

0

36

Snapper 7026420

GRIP, Flat Bar
(Superseded to 7105356YP)

$5.49

$

Usually ships in 2-12 days

0

37

Snapper 7026222

DECAL, Height Adjustment
(Superseded to 7026222YP)

$11.99

$

Usually ships in 2-12 days

0

38

Snapper 7026221

DECAL, Cast Aluminum Deck

$

$

Currently unavailable

39

Snapper 7091020

PUSH-NUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

40

Snapper 7061272

KIT, Height Adjusting Lever
(Superseded to 7061272YP)

$31.99

$

Usually ships in 2-12 days

0

41

Snapper 7091191

RIVET, 3/16 x 1/2" Steel
(Superseded to 7091191YP)

$3.49

$

Usually ships in 2-12 days

0

42

Snapper 7033752

PLATE, Height Adjustment
(Superseded to 7033752YP)

$23.99

$

Usually ships in 2-12 days

0

43

Snapper 7043870

SHIELD, Trailing
(Superseded to 7043870YP)

Note: Was 24753

$28.99

$

Usually ships in 2-12 days

0

44

Snapper 7091714

SCREW, 5/16-18 x 1" Carriage, Grade 5
(Superseded to 703483)

Note: Was 91238

$3.99

$

In Stock, only 1 left!

0

45

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head, Torx
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

46

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

47

Snapper 7024754

ROD, Trailing Shield Pivot
(Superseded to 7024754YP)

$5.99

$

Usually ships in 2-12 days

0

48

Snapper 7026809

DECAL - WARNING

$

$

Currently unavailable

49

Snapper 7026589

DECAL, B. & S. 4HP Engine

$

$

Currently unavailable

50

Snapper 7026431

DECAL, BLACKHAWK, Recoil Cover, B. & S. Engine

$

$

Currently unavailable

51

Snapper 7026237

DECAL, B. & S. 5HP Engine

$

$

Currently unavailable

ENGINE, 4 HP Briggs & Stratton Quantum (Mulching)

Note: (B&S # 122702-3224-01)(Not Shown)

$

$

Not available

ENGINE, 5 HP Briggs & Stratton XTE (Bagging)

Note: (B&S # 124802-3222-01)(Not Shown)

$

$

Not available

Snapper 7061396

KIT, Grass Catcher

Note: Was 61242

$

$

Currently unavailable

Snapper 7061397

KIT, Side Discharge Chute

Note: Was 61243

$

$

Not available

Snapper 7061398

KIT, Mulching

Note: Was 61244

$

$

Not available
