BH 140H38BBV (82361) - Snapper Black Hawk 38" Lawn Tractor, 14hp Electrical Components Parts Diagram

Black Hawk 38" Lawn Tractor, 14hp

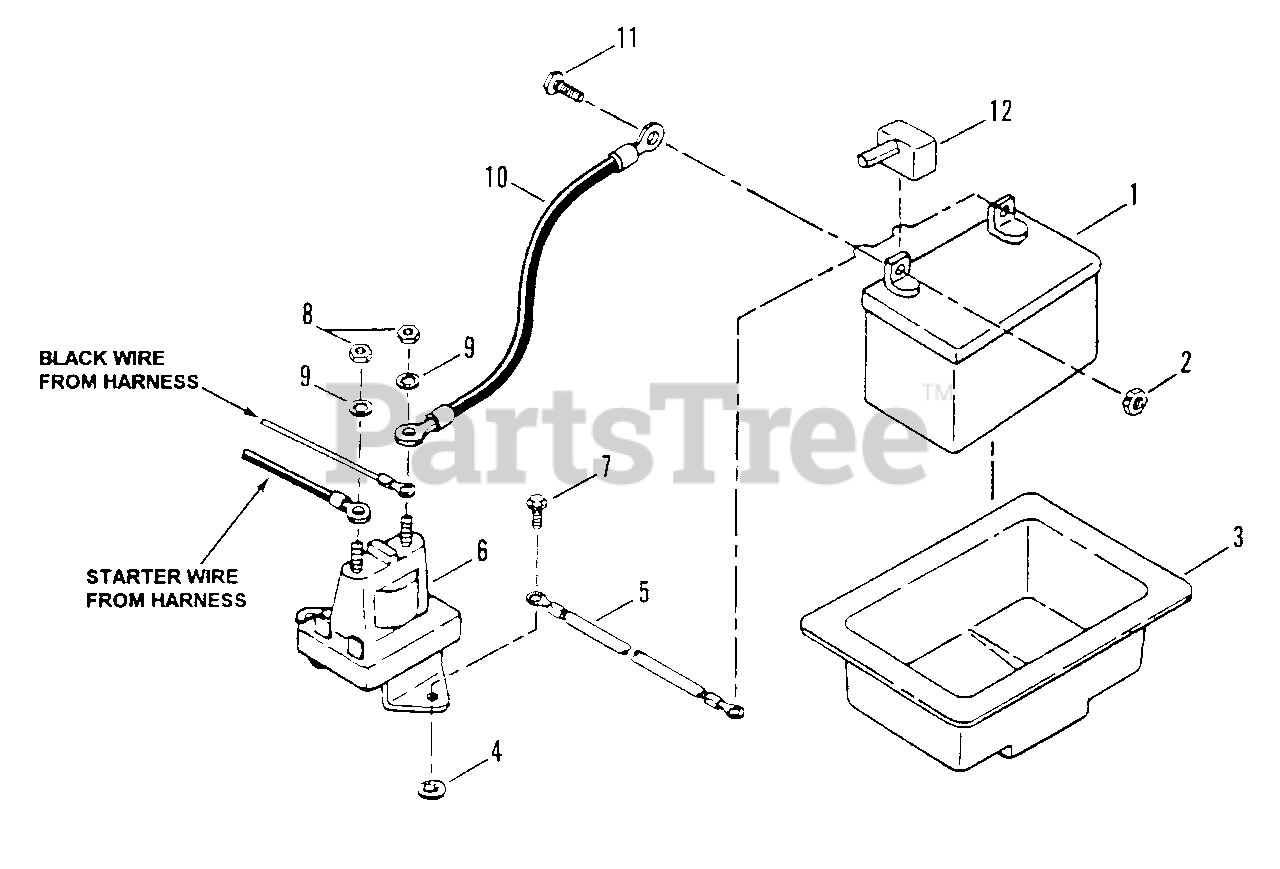

Electrical Components Parts Diagram

  • Title

1

Snapper 7060618

KIT, Battery
(Superseded to 1685215SM)

Note: (Includes Decal P.N. 16134 & Battery Without Acid)

$

$

Not available

2

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

3

Snapper 7017853

TRAY, Battery
(Superseded to 7017853YP)

$24.99

$

Usually ships in 2-12 days

0

4

Snapper 7012485

RETAINER, Screw
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7026414

CABLE, Ground (Black)
(Superseded to 7026414YP)

$9.99

$

Usually ships in 2-12 days

0

6

Snapper 7075622

SOLENOID
(Superseded to 1755382YP)

Note: Was 18604

$29.99

$

In Stock, Qty 20+

0

7

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 7

0

8

Snapper 7090977

NUT, 1/4-20 Hex Jam
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

9

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314

$4.49

$

In Stock, Qty 7

0

10

Snapper 7014476

CABLE, Positive (Red)
(Superseded to 7014476YP)

$12.99

$

Usually ships in 2-12 days

0

11

Snapper 7090072

SCREW, 1/4-20 x 5/8 Hex Head Cap
(Superseded to 001X38MA)

Note: Was 27172

$4.49

$

In Stock, Qty 18

0

12

Snapper 7012444

COVER, Positive Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

Snapper 7016134

Decal, Battery (Not shown)

$

$

Currently unavailable
