BH 140H38BBV (82361) - Snapper Black Hawk 38" Lawn Tractor, 14hp Blade Engagement & Transmission Controls Parts Diagram

Black Hawk 38" Lawn Tractor, 14hp

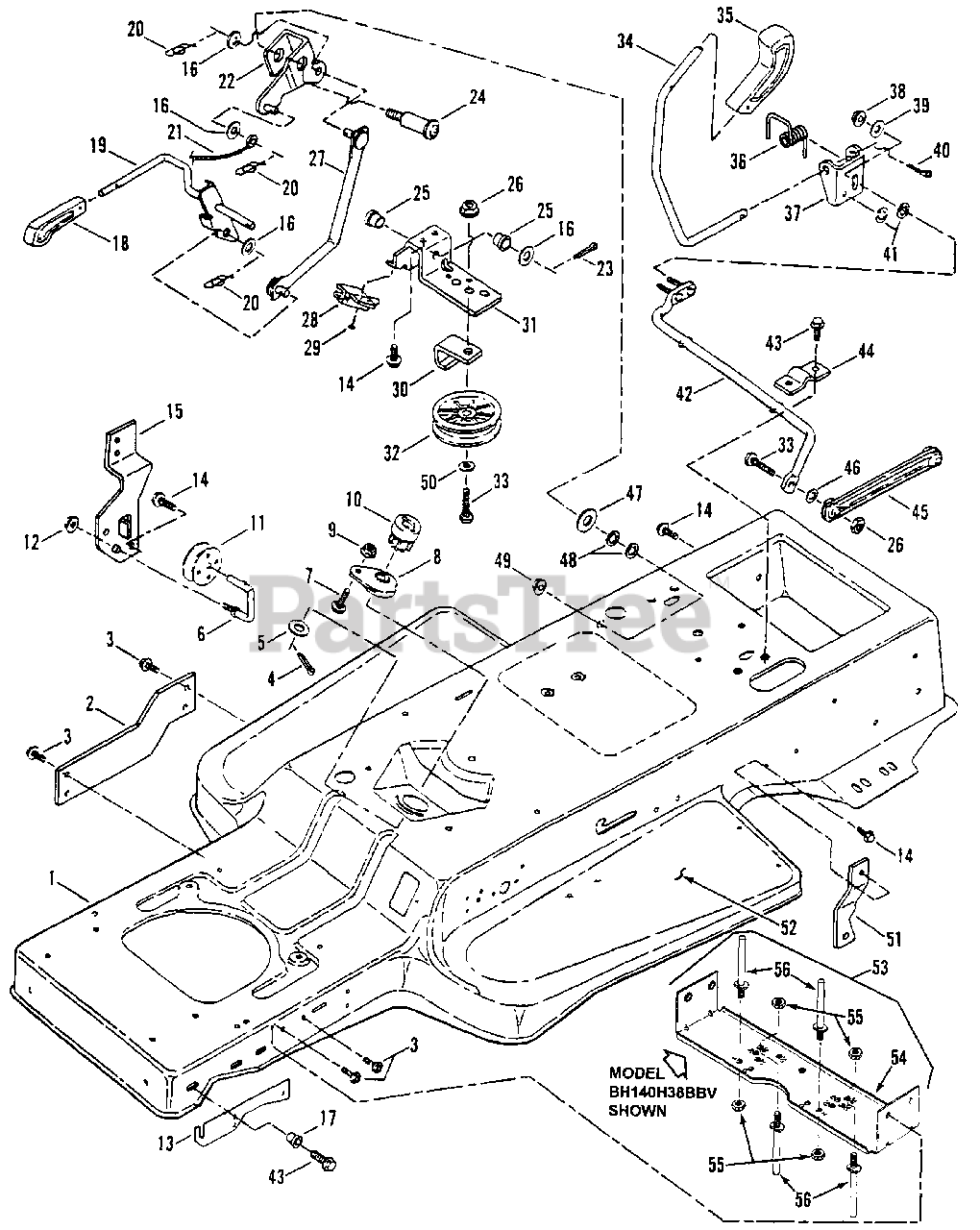

Blade Engagement & Transmission Controls Parts Diagram

  • Title

1

Snapper 7033301

FRAME, Tractor

$

$

Not available

2

Snapper 7046899

BRACE, Frame
(Superseded to 7046899YP)

Note: Was 34842

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

4

Snapper 7091598

COTTER-PIN, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7014296

WASHER, 1/2 Shim
(Superseded to 7014296YP)

$4.49

$

In Stock, only 4 left!

0

6

Snapper 7029600

ROD, Spool Pivot
(Superseded to 7029600YP)

$16.99

$

Usually ships in 2-12 days

0

7

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Neck Carriage
(Superseded to 7091573YP)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 7052562

ASSEMBLY, Steering Adjuster
(Superseded to 7052562YP)

$43.99

$

Usually ships in 2-12 days

0

9

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

10

Snapper 7022368

GEAR, Steering Pinion
(Superseded to 7022368YP)

$20.99

$

Usually ships in 2-12 days

0

11

Snapper 7023182

SPOOL
(Superseded to 7023182YP)

$8.49

$

In Stock, only 1 left!

0

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7033488

BRACKET, Hood Pivot
(Superseded to 7033488YP)

$17.99

$

Usually ships in 2-12 days

0

14

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

15

Snapper 7034439

BRACKET, Axle/Spool

$

$

Not available

16

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7024616

BUSHING, Flange
(Superseded to 7024616YP)

$

$

Not available

18

Snapper 7023657

KNOB, Deck Engagement
(Superseded to 7023657YP)

$4.99

$

In Stock, Qty 5

0

19

Snapper 7041619

WELDMENT, PTO Lever
(Superseded to 7041619YP)

$56.99

$

Usually ships in 2-12 days

0

20

Snapper 7091593

PIN, 3/64 x 1 7/32" Self-Lock'g.
(Superseded to 703355)

Note: Was 24159

$3.99

$

In Stock, Qty 14

0

21

Snapper 7028367

CABLE, Blade, 20.13"
(Superseded to 7028367YP)

Note: (Mdl. BH125G38BB)

$43.99

$

Usually ships in 2-12 days

0

21

Snapper 7029971

CABLE, Blade, 21.56"
(Superseded to 7029971YP)

Note: (Mdl. BH140H38BBV)

$9.99

$

Usually ships in 2-12 days

0

22

Snapper 7041238

WELDMENT, PTO Bellcrank
(Superseded to 7041238YP)

$31.99

$

In Stock, only 1 left!

0

23

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7024518

BOLT, 1/2-13 x 2 11/32" Shoulder

$

$

Not available

25

Snapper 7013321

BUSHING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

27

Snapper 7041237

ROD, PTO Link
(Superseded to 7041237YP)

$29.99

$

Usually ships in 2-12 days

0

28

Snapper 7023355

SWITCH
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

29

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

30

Snapper 7033556

GUIDE, Belt
(Superseded to 7033556YP)

$9.99

$

Usually ships in 2-12 days

0

31

Snapper 7034332

SUPPORT, PTO Lever
(Superseded to 7034332YP)

$23.99

$

Usually ships in 2-12 days

0

32

Snapper 7024344

PULLEY
(Superseded to 7024344YP)

$39.99

$

Usually ships in 2-12 days

0

33

Snapper 7091497

SCREW, 3/8-16 x 1 1/2" Hex Hd. Cap
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

34

Snapper 7023957

LEVER, Shift
(Superseded to 7023957YP)

$38.99

$

Usually ships in 2-12 days

0

35

Snapper 7023656

KNOB, Deck Lift Lever
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

36

Snapper 7024069

SPRING, Shift Lever

$

$

Not available

37

Snapper 7033541

BRACKET, Shift Lever (Upper)
(Superseded to 7033541YP)

$12.99

$

Usually ships in 2-12 days

0

38

Snapper 7076978

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

40

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

41

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 6

0

42

Snapper 7052920

ASSEMBLY, Shift Lever (Lower)
(Superseded to 7052920YP)

$23.99

$

Usually ships in 2-12 days

0

43

Snapper 7091524

SCREW, 5/16-18 x 1 1/4" Self-Tap.
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, only 3 left!

0

44

Snapper 7033554

CLIP

$

$

Not available

45

Snapper 7024286

LINK, Shift Lever
(Superseded to 7024286YP)

$22.99

$

Usually ships in 2-12 days

0

46

Snapper 7024180

SPACER
(Superseded to 7024180YP)

$7.49

$

Usually ships in 2-12 days

0

47

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

48

Snapper 7090509

WASHER, 1/2 Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

49

Snapper 7090619

NUT, 1/2-13 Hex Flange Lock
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

50

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7033951

BRACKET, Torque

Note: (Gear Drive Model BH125G38BB Only!)

$

$

Not available

52

Snapper 7024455

PAD, Foot, Sandpaper
(Superseded to 7073611YP)

Note: (Model BH125G38BB)

$10.99

$

Usually ships in 2-12 days

0

52

Snapper 7028203

PAD, Foot, Rubber Deluxe
(Superseded to 7028203YP)

Note: (Model BH140H38BBV)

$22.99

$

Usually ships in 2-12 days

0

53

GUIDE ASSEMBLY, Belt (NLA)

Note: (Includes Items 54, 55 & 56) (Models BH125G38BB & BH140H38BBV)

$

$

Not available

54

Snapper 7034858

BRACKET, Belt Guide

Note: (See "Belt Guide Bracket Top View" illustration)

$

$

Not available

55

Snapper 7091575

NUT, 5/16-18 Hex Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

56

Snapper 7028303

STUD, Belt Guide
(Superseded to 7028303YP)

$18.99

$

Usually ships in 2-12 days

0
