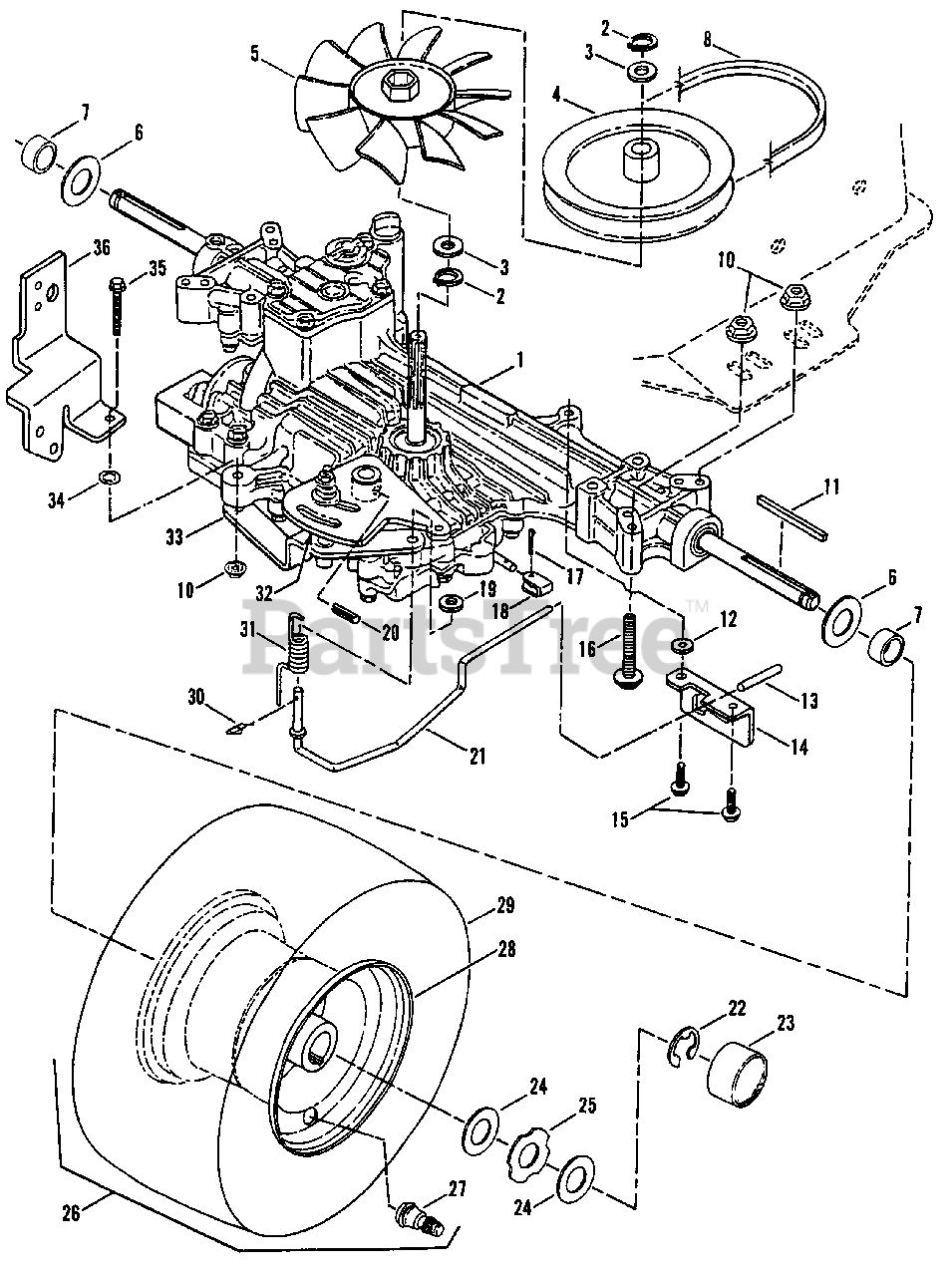

BH 140H33BBV (80878) - Snapper Black Hawk 33" Lawn Tractor, 14hp Transmission Group (Hydro Drive) & Rear Wheels Parts Diagram

Black Hawk 33" Lawn Tractor, 14hp

Transmission Group (Hydro Drive) & Rear Wheels Parts Diagram

  • Title

1

Snapper 7028083

TRANSAXLE, Hydro Drive, Tuff-Torq Model K50
(Superseded to 7028668YP)

$1367.99

$

Usually ships in 2-12 days

0

2

Snapper 7028078

RING, Retaining

$4.49

$

Usually ships in 2-12 days

0

3

Snapper 7028084

WASHER, Fan/Hub

$2.49

$

Usually ships in 2-12 days

0

4

Snapper 7028077

PULLEY, Drive
(Superseded to 7028077YP)

$70.99

$

In Stock, only 1 left!

0

5

Snapper 7028076

FAN
(Superseded to 7028076YP)

$17.99

$

In Stock, only 1 left!

0

6

Snapper 7034453

WASHER, Flat, .132 x .781 I.D. x 1.5 O.D.
(Superseded to 7034453YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7028049

SPACER

$

$

Not available

8

Snapper 7028334

BELT, Traction Drive, 94.5" EL
(Superseded to 7028334SM)

$64.99

$

Usually ships in 2-12 days

0

10

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7017173

KEY, Square, 3/16 x 3/16 x 2 1/2"
(Superseded to 7017173YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7032070

WASHER, Flat, 3/4" O.D.
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

13

Snapper 7034137

GRIP, Roll Release
(Superseded to 7034137YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7034139

DETENT, Roll Release

$

$

Not available

15

Snapper 7091284

SCREW, 3/8-16 x 1 3/4" Self-Tapping

$

$

Currently unavailable

16

Snapper 7090702

BOLT, 5/16-18 x 2 1/4" Hex Flange Lock
(Superseded to 7090702YP)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 13

0

18

Snapper 7034154

LINK, Roll Release
(Superseded to 7034154YP)

$9.99

$

In Stock, only 1 left!

0

19

Snapper 7090188

WASHER
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

20

Snapper 7034146

ROLL-PIN, Speed Control Arm
(Superseded to 7034146YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7034140

WIREFORM, Roll Release
(Superseded to 7034140YP)

$6.99

$

Usually ships in 2-12 days

0

22

Snapper 7010746

RING, Retaining
(Superseded to 703975)

Note: Was 29738

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7029617

WASHER, Flat, .07 x .77 I.D. x 1.31 O.D.
(Superseded to 7029617YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7029618

WASHER, Hub-Cap Retaining

$3.99

$

In Stock, only 3 left!

0

26

Snapper 7052845

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058518YP)

$208.99

$

Usually ships in 2-12 days

0

27

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

28

Snapper 7024453

RIM, 8 x 5.375
(Superseded to 7024453YP)

$112.99

$

Usually ships in 2-12 days

0

29

Snapper 7022688

TIRE, 18 x 7.50
(Superseded to 7022688YP)

Note: Was 26112

$131.99

$

Usually ships in 2-12 days

0

30

Snapper 7034162

COTTER-PIN, 5/16 Self-Locking
(Superseded to 704030)

$4.49

$

In Stock, only 2 left!

0

31

Snapper 7034155

SPRING, Torsion (Roll Release)
(Superseded to 7034155YP)

$7.99

$

Usually ships in 2-12 days

0

32

Snapper 7053386

ASSEMBLY, Speed Control/Friction
(Superseded to 7053386YP)

Note: (Includes Part No's. Listed Below)

$96.99

$

Usually ships in 2-12 days

0

Snapper 7041612

WELDMENT, Speed Control Arm (Not shown, part of #32)

$

$

Not available

Snapper 7028036

SPRING (Not shown, part of #32)
(Superseded to 7028036YP)

$6.99

$

Usually ships in 2-12 days

0

Snapper 7034192

STUD, Friction (Not shown, part of #32)

$

$

Not available

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock (Not shown, part of #32)
(Superseded to 703333)

Note: Was 90593

$4.99

$

In Stock, Qty 20+

0

Snapper 7091331

WASHER, .120 x .406 I.D. x 1.5 O.D. (Not shown, part of #32)
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

Snapper 7034267

WASHER, Friction Pad (Not shown, part of #32)
(Superseded to 7034267YP)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7053380

SUPPORT, Friction Stud Assembly
(Superseded to 7053380YP)

Note: (Includes Part No's. Listed Below)

$19.99

$

Usually ships in 2-12 days

0

Snapper 7012306

BUSHING, Flange (Not shown, part of #33)
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

Snapper 7034178

SUPPORT, Friction Stud (Not shown, part of #33)
(Superseded to 7034178YP)

$19.99

$

Usually ships in 2-12 days

0

34

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 7091592

BOLT, 5/16-18 x 2" Hex Flange Lock
(Superseded to 704062)

$4.49

$

Usually ships in 2-12 days

0

36

Snapper 7034400

BRACKET, Spool

$

$

Not available
