BH 140H33BBV (80878) - Snapper Black Hawk 33" Lawn Tractor, 14hp Front Wheel Parts Diagram

Black Hawk 33" Lawn Tractor, 14hp

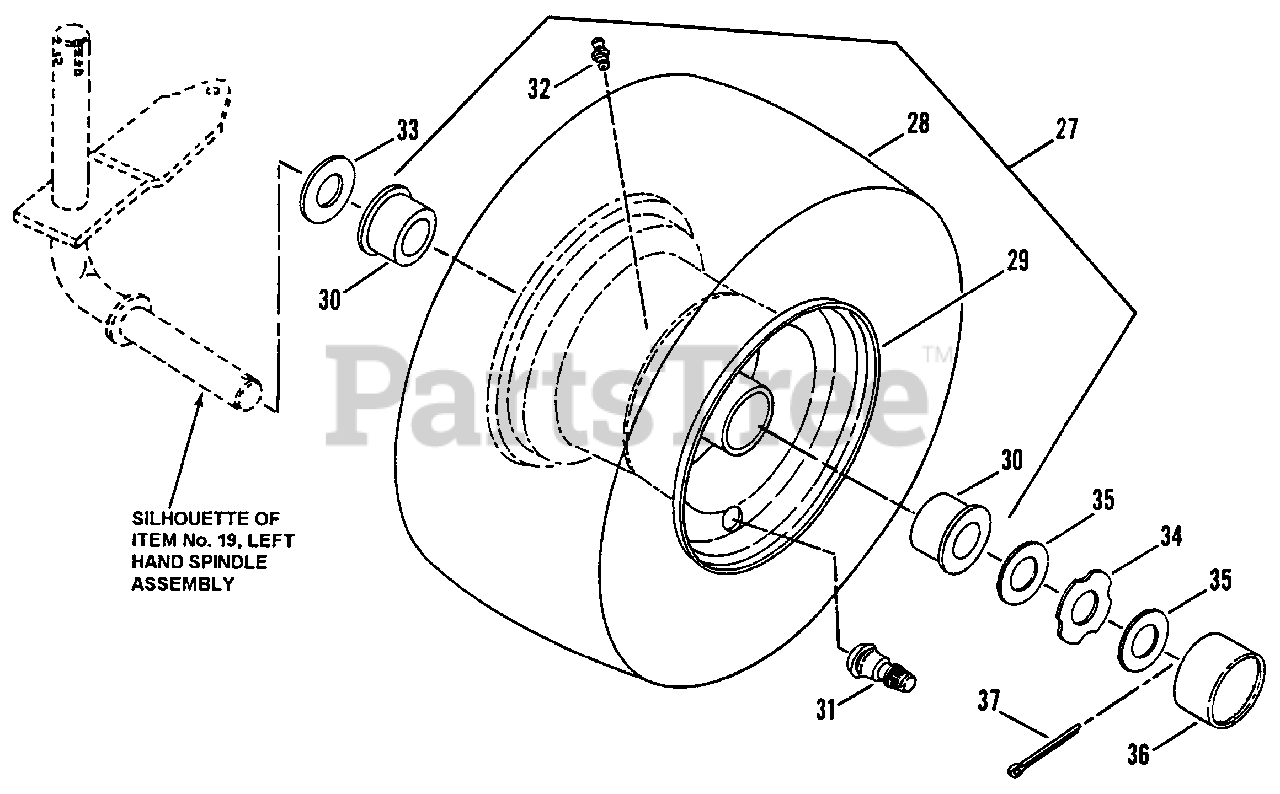

Front Wheel Parts Diagram

  • Title
27

Snapper 7058515

ASSEMBLY, Front Tire & Rim
(Superseded to 7058515YP)

Note: Was 52681

$117.99

$

Usually ships in 2-12 days

0

28

Snapper 7072702

TIRE, 13 x 5.00
(Superseded to 7058515YP)

Note: Was 22773

$117.99

$

Usually ships in 2-12 days

0

29

Snapper 7022772

RIM, 5.50 x 4.00
(Superseded to 7058517YP)

$167.99

$

Usually ships in 2-12 days

0

30

Snapper 7014483

BEARING, Wheel
(Superseded to 7014483YP)

$10.99

$

In Stock, Qty 11

0

31

Snapper 7012234

VALVE, Air (Snap-In)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

32

Snapper 7076998

FITTING, Lube 1/4-28 Tapered Thread
(Superseded to 703153)

Note: Was 13876

$3.99

$

In Stock, Qty 12

0

33

Snapper 7034453

WASHER, Flat, .15 x .78 I.D. x 1.5" O.D.
(Superseded to 7034453YP)

$5.49

$

Usually ships in 2-12 days

0

34

Snapper 7029618

WASHER, Hub-Cap Retaining

$3.99

$

In Stock, only 3 left!

0

35

Snapper 7029617

WASHER, Flat,.07x.77 I.D. x 1.31" O.D.
(Superseded to 7029617YP)

$4.49

$

Usually ships in 2-12 days

0

36

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 11

0
