BH 140H33BBV (80878) - Snapper Black Hawk 33" Lawn Tractor, 14hp Engine Components Parts Diagram

Black Hawk 33" Lawn Tractor, 14hp

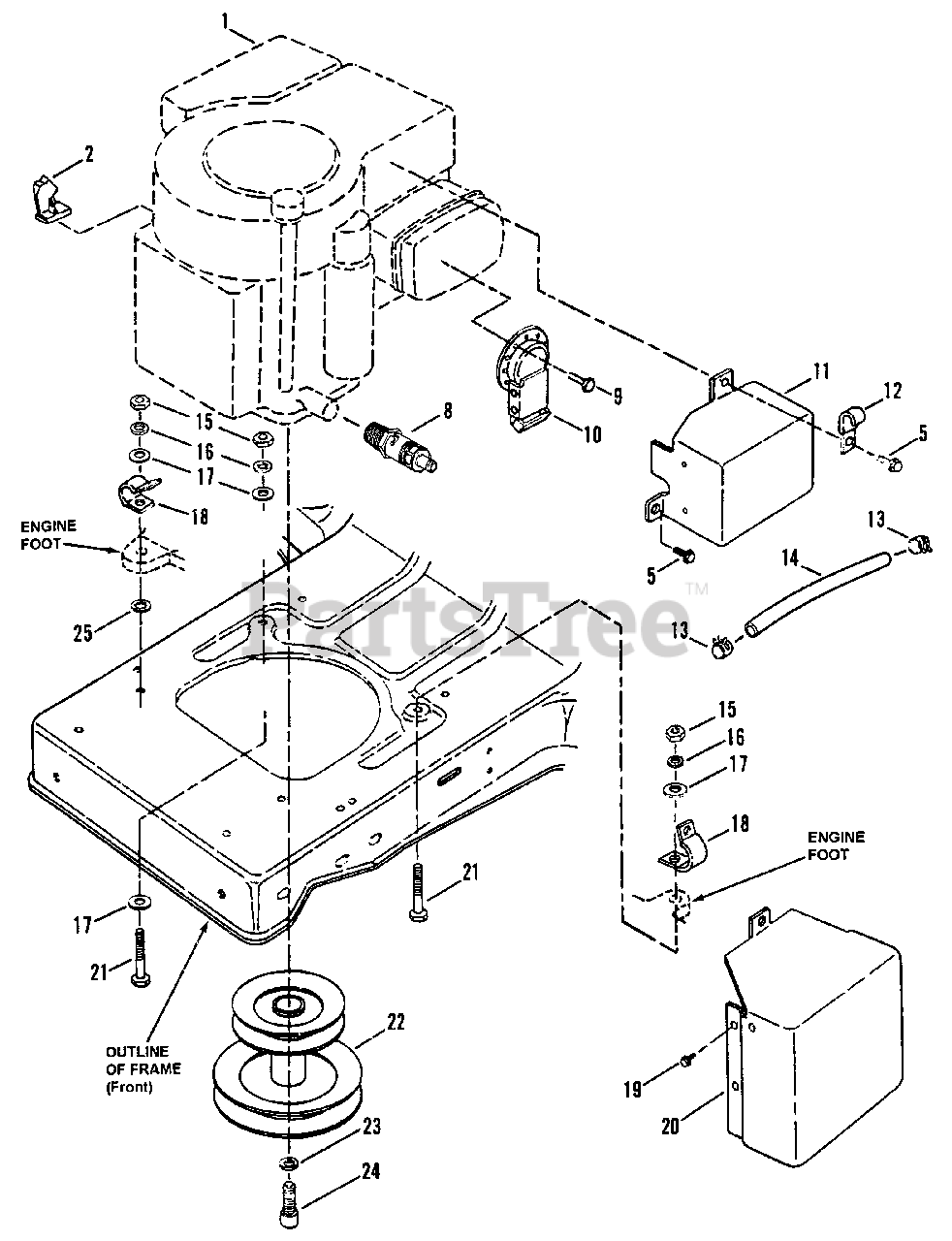

Engine Components Parts Diagram

  • Title
1

* ENGINE, B. & S. 14 HP OHV, Mod. 287707-0119-01

$

$

Not available

2

Snapper 7025079

CLIP, Speed

$

$

Currently unavailable

5

Snapper 7091579

BOLT, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7091579SM)

$3.99

$

In Stock, only 2 left!

0

8

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

9

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Head, Self-Tapping
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7041537

EXTENSION, Muffler
(Superseded to 7041537YP)

$82.99

$

Usually ships in 2-12 days

0

11

Snapper 7041269

HEAT SHIELD, Muffler

$

$

Not available

12

Snapper 7026482

CLIP, "J" Type
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

13

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7023479

LINE, Fuel, 16" Long
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

15

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7091315

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7015861

CLIP, Wiring Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

20

Snapper 7041677

HEAT SHIELD, Muffler
(Superseded to 7041677YP)

$103.99

$

Usually ships in 2-12 days

0

21

Snapper 7090669

SCREW, 5/16-18 x 1 3/4" Hex Head Cap
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

22

Snapper 7028028

ASSEMBLY, Engine Pulley
(Superseded to 7028028YP)

$106.99

$

Usually ships in 2-12 days

0

23

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7091531

SCREW, 7/16-20 x 1" Hex Cap, Socket Head

$

$

Not available

25

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0
