BH 140G42ABV (80480) - Snapper Black Hawk 42" Lawn Tractor, 14hp Rear Fender & Components Parts Diagram

Black Hawk 42" Lawn Tractor, 14hp

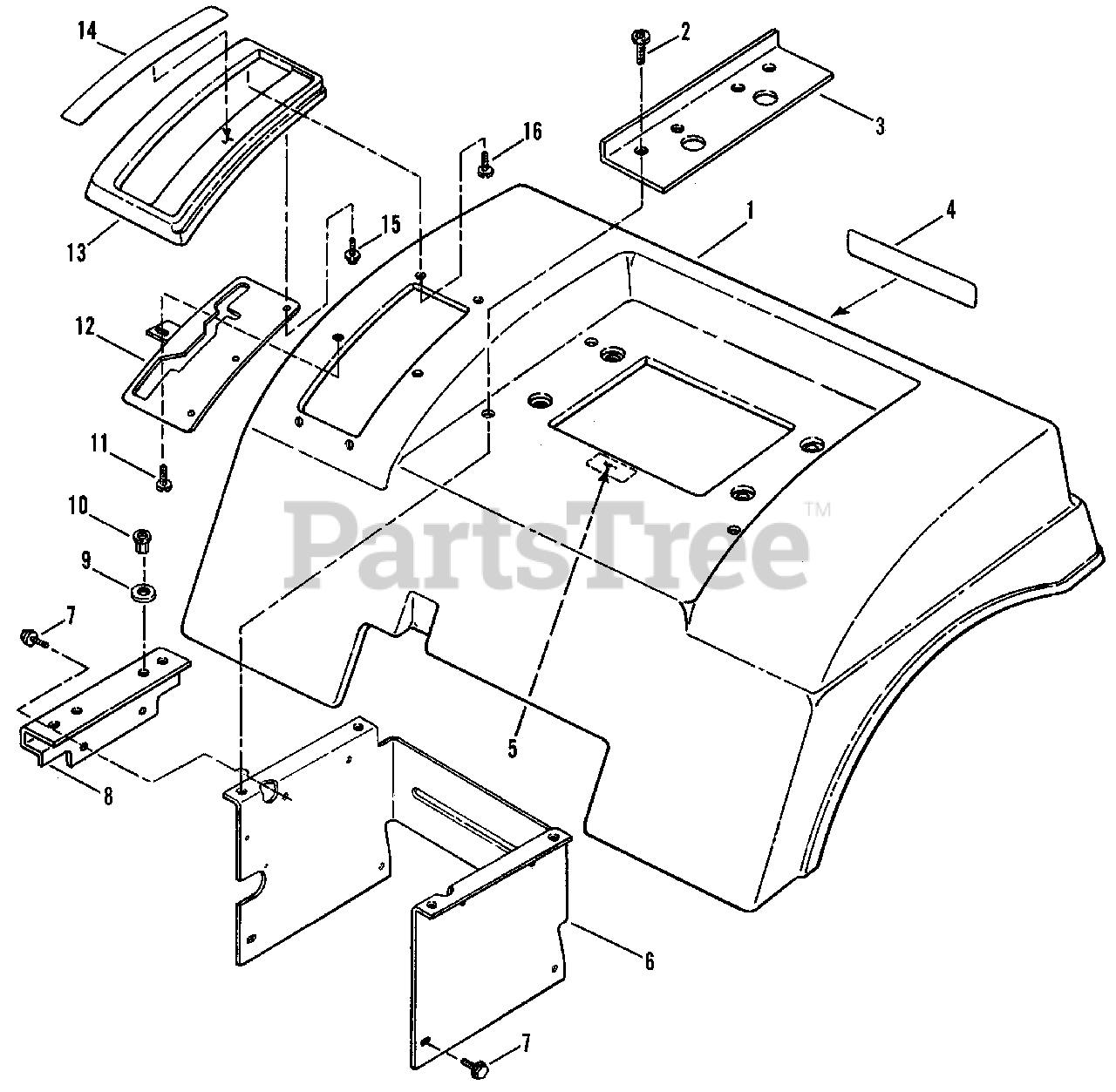

Rear Fender & Components Parts Diagram

  • Title

1

Snapper 7026617

PAN, Seat (Fender)

$

$

Currently unavailable

2

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

3

Snapper 7033958

BRACE, Fender

$

$

Currently unavailable

4

Snapper 7026228

DECAL - BLACKHAWK, Molded Logo

$

$

Not available

5

Snapper 7026415

DECAL - CAUTION, Battery Installation
(Superseded to 7026415YP)

$7.49

$

Usually ships in 2-12 days

0

6

Snapper 7033312

SUPPORT, Fender

$

$

Not available

7

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

8

Snapper 7033843

BRACKET, Fender Support

$

$

Currently unavailable

9

Snapper 7026187

WASHER, Flat

$

$

Currently unavailable

10

Snapper 7026183

RIV-NUT, 5/16-18

$

$

Currently unavailable

11

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head, Self-Tapping
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7041491

DETENT, Gear Shift

$

$

Not available

13

Snapper 7026619

COVER, Shift

$

$

Currently unavailable

14

Snapper 7026717

DECAL, Shift Cover, 6-Speed

$

$

Currently unavailable

15

Snapper 7091105

SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

16

Snapper 7091223

SCREW, #10-16 x 5/8" Pan Head, Self-Tapping

$

$

Currently unavailable
