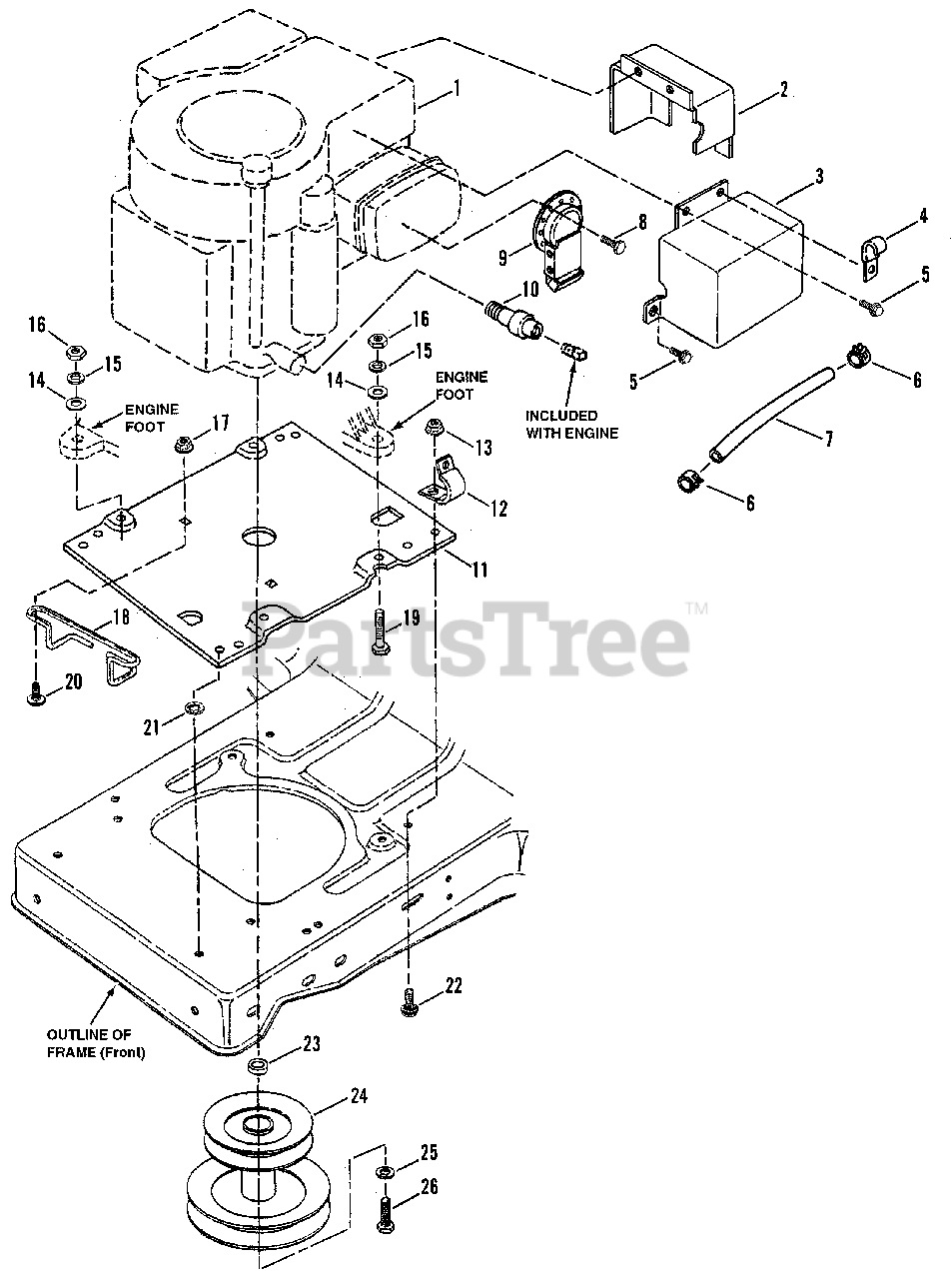

BH 140G42ABV (80480) - Snapper Black Hawk 42" Lawn Tractor, 14hp Engine Components Parts Diagram

Black Hawk 42" Lawn Tractor, 14hp

Engine Components Parts Diagram

  • Title

1

* ENGINE, B&S, 14 HP OHV Mod. 287707-0101-01 (42" Model)

$

$

Not available

2

Snapper 7041497

HEAT SHIELD, Valve Cover

$

$

Currently unavailable

3

Snapper 7041506

HEAT SHIELD, Muffler
(Superseded to 7041506YP)

$96.99

$

Usually ships in 2-12 days

0

4

Snapper 7026482

CLIP, "J" Type
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

5

Snapper 7090584

BOLT, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7023479

LINE, Fuel, 16"
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

8

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Flange Lock
(Superseded to 7091581YP)

Note: Was 90525

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7041498

EXTENSION, Muffler
(Superseded to 7041537YP)

Note: Was 41498 ('93 Model Year & Earlier)

$82.99

$

Usually ships in 2-12 days

0

9

Snapper 7041537

EXTENSION, Muffler (Longer)
(Superseded to 7041537YP)

Note: ('94 Model Year)

$82.99

$

Usually ships in 2-12 days

0

10

Snapper 7022486

EXTENSION, Oil Drain (Short)
(Superseded to 7022486YP)

$22.99

$

Usually ships in 2-12 days

0

11

Snapper 7033702

SUB-PLATE, Engine

$

$

Not available

12

Snapper 7015861

CLIP, Harness
(Superseded to 7015861SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7091601

NUT, 5/16-18 Hex Fig. Lk.
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

15

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7091584

NUT, 1/4-20 Hex Fig. Lk.
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

18

Snapper 7022239

GUIDE, Belt
(Superseded to 7022239YP)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7091540

SCREW, 5/16-18 x 1 1/2" Hx. Hd.
(Superseded to 703906)

Note: Was 90211

$4.99

$

In Stock, only 4 left!

0

20

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 7091573YP)

Note: Was 90666

$4.49

$

In Stock, only 1 left!

0

21

Snapper 7090391

WASHER, 5/16 Int. Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7090661

BOLT, 5/16-18 x 1" Hex Flange Lock

$

$

Not available

23

Snapper 7024802

SPACER

$

$

Not available

24

Snapper 7024686

PULLEY ASSEMBLY
(Superseded to 7024686YP)

$106.99

$

In Stock, only 1 left!

0

25

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

26

Snapper 7091234

BOLT, 7/16-20 x 1 1/2", Grade 5

$

$

Currently unavailable
