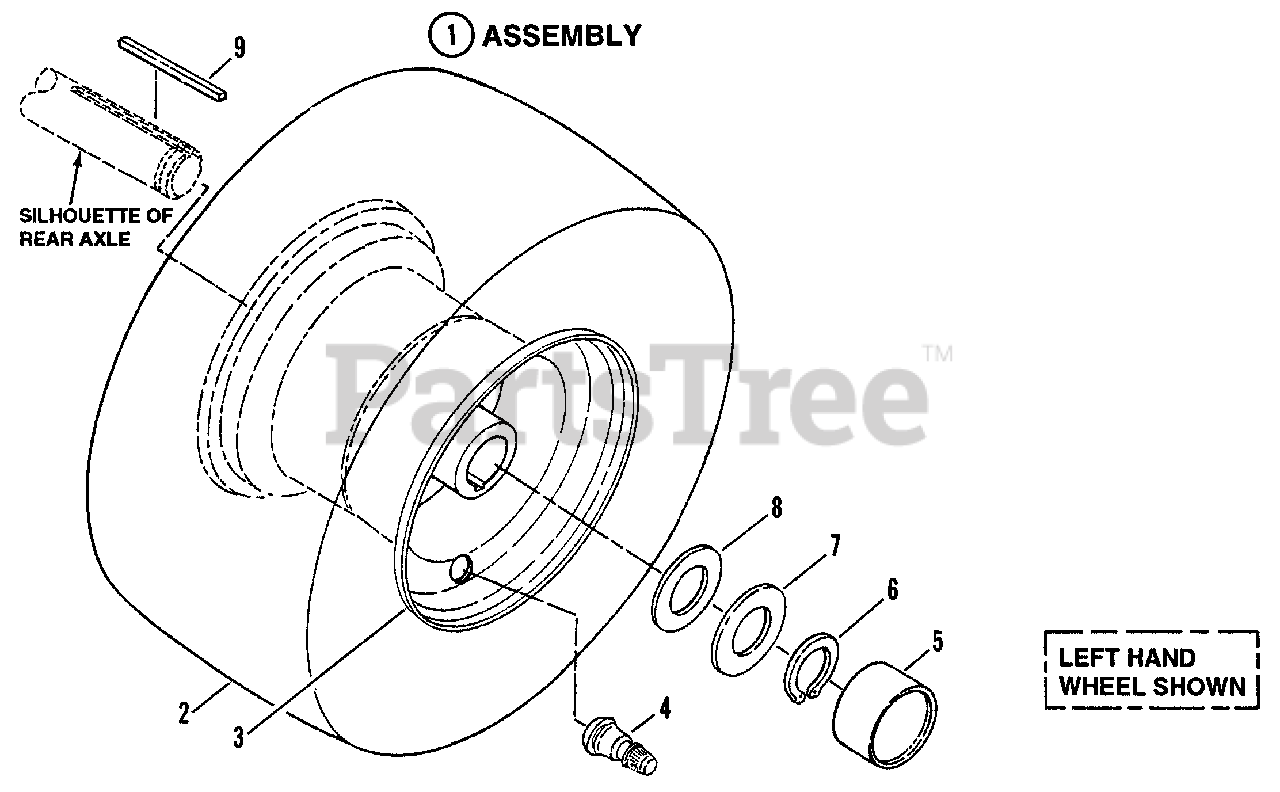

BH 120G38AB (80479) - Snapper Black Hawk 38" Lawn Tractor, 12hp Wheels - Rear Parts Diagram

Black Hawk 38" Lawn Tractor, 12hp

Wheels - Rear Parts Diagram

  • Title
1

Snapper 7052846

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058518YP)

Note: Was 53187 (Includes 2 thru 4)(38" Model)

$208.99

$

Usually ships in 2-12 days

0

1

Snapper 7053188

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058520YP)

Note: (Includes 2 thru 4)(42" Model)

$222.99

$

Usually ships in 2-12 days

0

2

Snapper 7072707

TIRE, 20 x 10
(Superseded to 1722826SM)

Note: (42" Model)

$170.99

$

Usually ships in 2-12 days

0

2

Snapper 7072705

TIRE, 18 x 8.50
(Superseded to 7072705YP)

Note: Was 26113 (38" Model)

$125.99

$

Usually ships in 2-12 days

0

3

Snapper 7024454

RIM, 8.00 x 7.00
(Superseded to 7024454YP)

Note: Was 26624

$122.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

Note: Was 26627

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7012705

RING, Retaining

$

$

Not available

7

Snapper 7011071

WASHER, Thrust, 49/64" I.D. x 1 5/8" O.D.
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7032027

WASHER, Flat, 49/64" I.D. x 1 1/2" O.D.
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

9

Snapper 7017173

KEY, Square, 3/16" x 2 1/2"
(Superseded to 7017173YP)

$3.49

$

Usually ships in 2-12 days

0
