BH 120G38AB (80479) - Snapper Black Hawk 38" Lawn Tractor, 12hp Rear Fender & Components Parts Diagram

Black Hawk 38" Lawn Tractor, 12hp

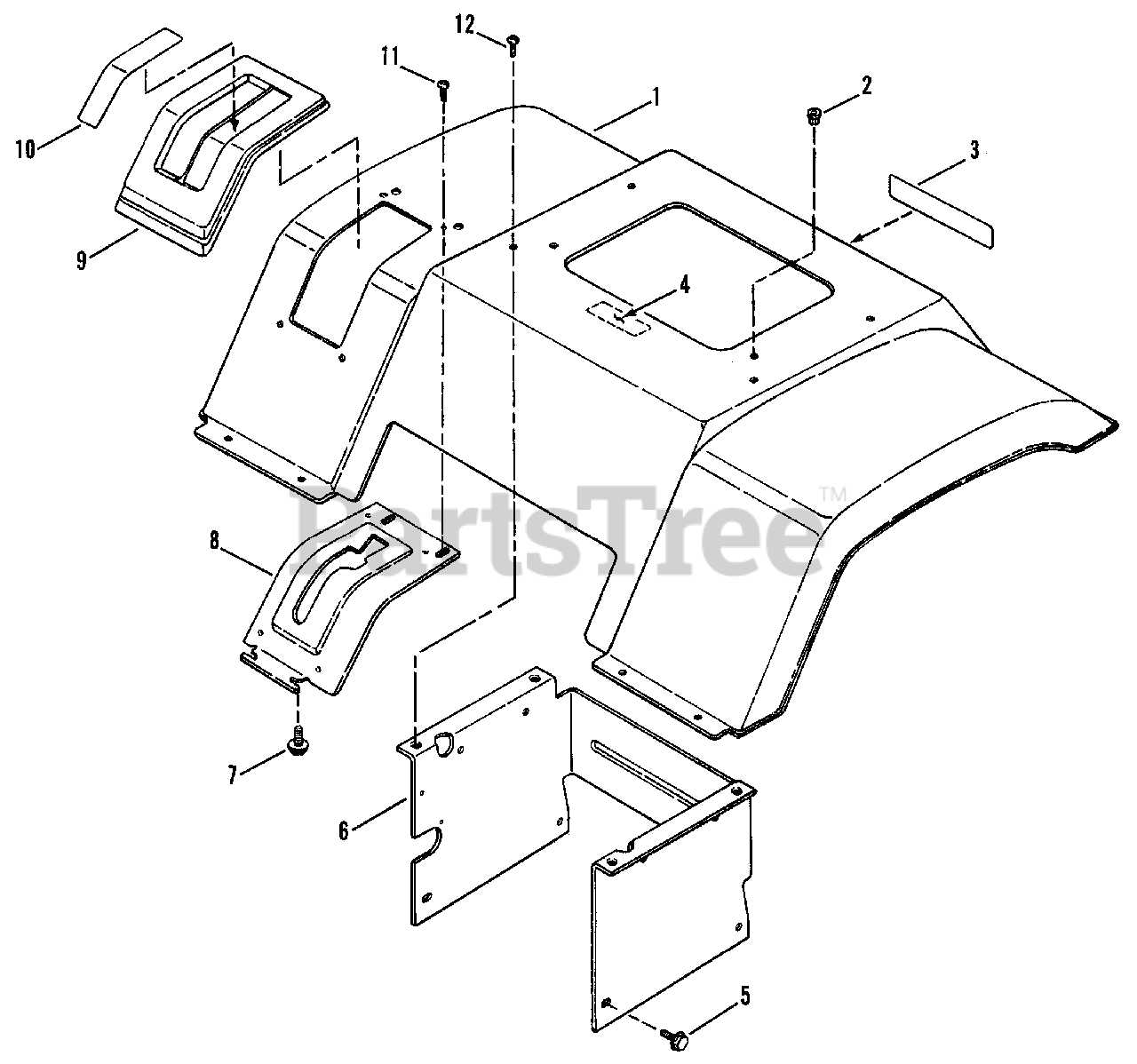

Rear Fender & Components Parts Diagram

  • Title
1

Snapper 7033935

PAN, Seat (Fender)

$

$

Currently unavailable

2

Snapper 7023193

RIV-NUT, 5/16-18
(Superseded to 7023193YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7026228

DECAL - BLACKHAWK, Molded Logo

$

$

Not available

4

Snapper 7026415

DECAL - CAUTION, Battery Location
(Superseded to 7026415YP)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

6

Snapper 7033312

SUPPORT, Fender

$

$

Not available

7

Snapper 7091105

SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

8

Snapper 7033907

DETENT, Gear Shift

$

$

Not available

9

Snapper 7024894

COVER, Shift
(Superseded to 7024894YP)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper 7026716

DECAL, Shift Cover, 5-Speed

$

$

Not available

11

Snapper 7090999

SCREW, 1/4-20 x 5/8" Truss Head (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0
