BH 120G38AB (80479) - Snapper Black Hawk 38" Lawn Tractor, 12hp Blade Engagement & Transmission Controls Parts Diagram

Black Hawk 38" Lawn Tractor, 12hp

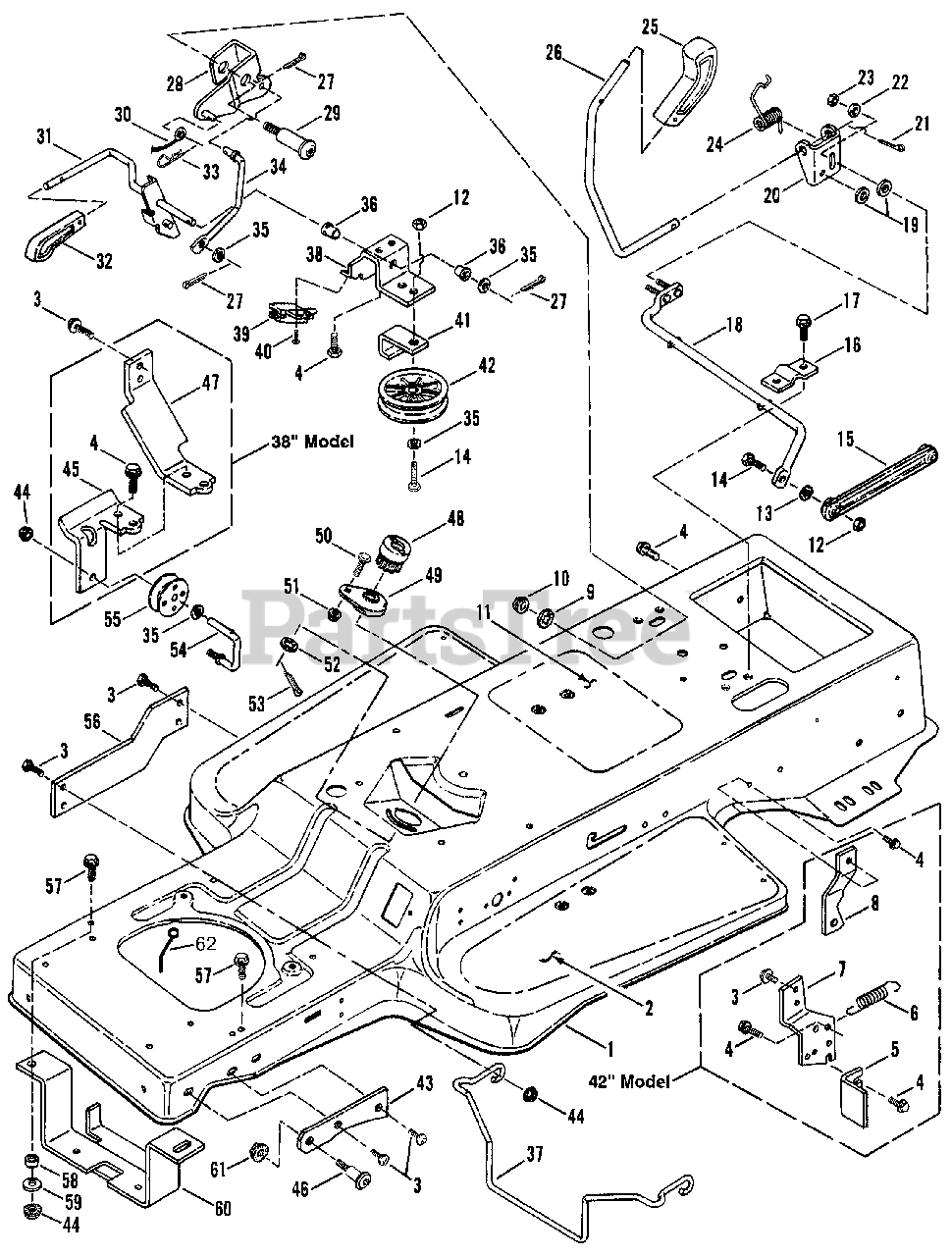

Blade Engagement & Transmission Controls Parts Diagram

  • Title

1

Snapper 7033301

FRAME, Blackhawk Tractor

$

$

Not available

2

Snapper 7024455

FOOTPAD, Sandpaper
(Superseded to 7073611YP)

Note: (38" Model)

$10.99

$

Usually ships in 2-12 days

0

2

Snapper 7026614

FOOTPAD, Deluxe
(Superseded to 7026614YP)

Note: (42" Model)

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

4

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

5

Snapper 7033819

GUIDE, Cable

Note: (42" Model)

$

$

Not available

6

Snapper 7022437

SPRING, Brake Return
(Superseded to 7022437YP)

Note: (42" Model)

$3.99

$

In Stock, only 1 left!

0

7

Snapper 7034439

BRACKET, Axle/Spool

Note: Was 33810 (42" Model)

$

$

Not available

8

Snapper 7033951

BRACKET, Torque

Note: (42" Model)

$

$

Not available

9

Snapper 7090509

WASHER, 1/2 Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

10

Snapper 7090619

NUT, 1/2-13 Hex Flange Lock
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7024457

DECAL, Instruction/Safety (Long)
(Superseded to 7024457YP)

Note: (38" Model)

$22.99

$

Usually ships in 2-12 days

0

11

Snapper 7026566

DECAL, Instruction/Safety (Short)
(Superseded to 7026566YP)

Note: (42" Model)

$13.99

$

Usually ships in 2-12 days

0

12

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

13

Snapper 7024180

SPACER
(Superseded to 7024180YP)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 7091497

SCREW, 3/8-16 x 1 1/2" Hex Head Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

15

Snapper 7024286

LINK, Shift Lever
(Superseded to 7024286YP)

$22.99

$

Usually ships in 2-12 days

0

16

Snapper 7033554

CLIP, Shift Lever

$

$

Not available

17

Snapper 7091524

SCREW, 5/16-18 1 1/4" Self-Tap.
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, only 3 left!

0

18

Snapper 7052920

ASSEMBLY, Shift Lever (Lower)
(Superseded to 7052920YP)

$23.99

$

Usually ships in 2-12 days

0

19

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 6

0

20

Snapper 7033541

BRACKET, Shift Lever (Upper)
(Superseded to 7033541YP)

$12.99

$

Usually ships in 2-12 days

0

21

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

22

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7024069

SPRING, Shift Lever

$

$

Not available

25

Snapper 7023656

KNOB, Deck Lift Lever
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

26

Snapper 7023957

LEVER, Shift
(Superseded to 7023957YP)

Note: (38" Model)

$38.99

$

Usually ships in 2-12 days

0

26

Snapper 7026128

LEVER, Shift
(Superseded to 7026128YP)

Note: (42" Model)

$9.49

$

Usually ships in 2-12 days

0

27

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7041310

WELDMENT, PTO Bellcrank

$

$

Not available

29

Snapper 7024518

BOLT, 1/2-13 x 2 11/32" Shoulder

$

$

Not available

30

Snapper 7035432

CABLE, Blade 20.5"
(Superseded to 7035432YP)

Note: (38" Model)

$20.99

$

Usually ships in 2-12 days

0

30

Snapper 7024765

CABLE, Blade 19.75"
(Superseded to 7024765YP)

Note: (42" Model)

$14.99

$

Usually ships in 2-12 days

0

31

Snapper 7041307

WELDMENT, PTO Lever
(Superseded to 7041307YP)

$66.99

$

Usually ships in 2-12 days

0

32

Snapper 7023657

KNOB, PTO Lever
(Superseded to 7023657YP)

$4.99

$

In Stock, Qty 5

0

33

Snapper 7091503

PIN, Hair, 3/32 x 1 1/2"
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

34

Snapper 7023931

ROD, PTO Link

$

$

Not available

35

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7013321

BUSHING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7041531

GUIDE, Belt

Note: Was 24824 ('93 Model Year & Earlier)

$

$

Not available

37

Snapper 7041556

GUIDE, Belt
(Superseded to 7041556YP)

Note: (38" Model); ('94 Model Year)

$54.99

$

Usually ships in 2-12 days

0

37

Snapper 7027741

GUIDE, Belt
(Superseded to 7027741YP)

Note: (42" Model); ('94 Model Year)

$14.99

$

Usually ships in 2-12 days

0

38

Snapper 7033525

SUPPORT, PTO Lever
(Superseded to 7033525YP)

$19.99

$

Usually ships in 2-12 days

0

39

Snapper 7023355

SWITCH, Blade Engagement
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

40

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

41

Snapper 7033556

GUIDE, Belt
(Superseded to 7033556YP)

$9.99

$

Usually ships in 2-12 days

0

42

Snapper 7024344

PULLEY (3.5" V)
(Superseded to 7024344YP)

$39.99

$

Usually ships in 2-12 days

0

43

Snapper 7033488

BRACKET, Hood Pivot
(Superseded to 7033488YP)

$17.99

$

Usually ships in 2-12 days

0

44

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585 (2 each used on 42" Model)

$5.49

$

In Stock, Qty 20+

0

45

Snapper 7033576

BRACKET, Spool

Note: (38" Model)

$

$

Currently unavailable

46

Snapper 7024061

BOLT, 3/8-16 x 1 1/4" Shoulder
(Superseded to 7024061YP)

$4.49

$

Usually ships in 2-12 days

0

47

Snapper 7033315

BRACKET, Torque

Note: (38" Model)

$

$

Currently unavailable

48

Snapper 7022368

GEAR, Steering Pinion
(Superseded to 7022368YP)

$20.99

$

Usually ships in 2-12 days

0

49

Snapper 7052562

ASSEMBLY, Steering Adjuster
(Superseded to 7052562YP)

$43.99

$

Usually ships in 2-12 days

0

50

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Neck Carriage
(Superseded to 7091573YP)

Note: Was 90551

$4.49

$

In Stock, only 1 left!

0

51

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

52

Snapper 7014296

WASHER, 1/2 Shim
(Superseded to 7014296YP)

$4.49

$

In Stock, only 4 left!

0

53

Snapper 7091598

COTTER-PIN, 1/8 x 3/4"
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

54

Snapper 7029600

ROD, Spool Pivot
(Superseded to 7029600YP)

Note: Was 24182

$16.99

$

Usually ships in 2-12 days

0

55

Snapper 7023182

SPOOL
(Superseded to 7023182YP)

$8.49

$

In Stock, only 1 left!

0

56

Snapper 7033832

BRACE, Frame
(Superseded to 7033832YP)

$37.99

$

Usually ships in 2-12 days

0

57

Snapper 7091524

BOLT, 5/16-18 x 1 1/4" Hex Washer Head
(Superseded to 703167)

Note: Was 91151 (42" Model)

$3.99

$

In Stock, only 3 left!

0

58

Snapper 7024180

SPACER
(Superseded to 7024180YP)

Note: (42" Model)

$7.49

$

Usually ships in 2-12 days

0

59

Snapper 7032070

WASHER, 13/32 x 3/4" Flat
(Superseded to 7032070YP)

Note: (42" Model)

$4.99

$

In Stock, only 1 left!

0

60

Snapper 7041523

WELDMENT, Belt Guide

Note: (42" Model)

$

$

Not available

61

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

62

Snapper 7024101

GUIDE, Belt

$

$

Currently unavailable
