BFP9.9 DK3 XHA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1800001 - BABJ-9999999) IGNITION COIL@C.D.I. UNIT Parts Diagram

Outboard Engine, Made in Japan

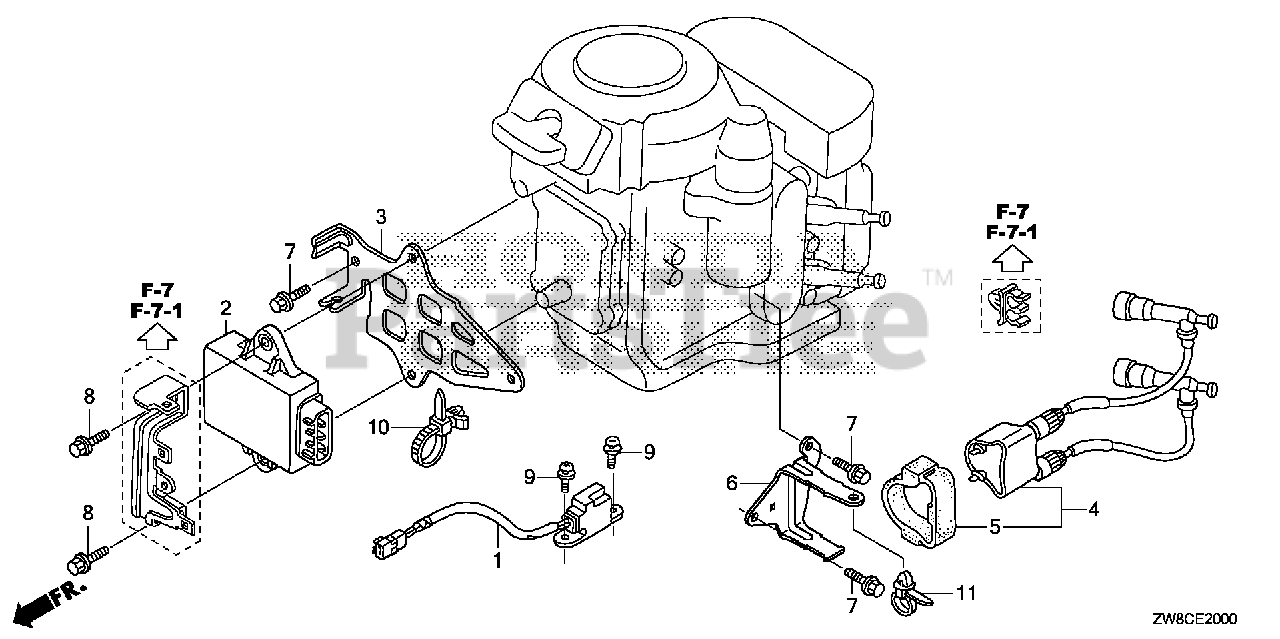

IGNITION COIL@C.D.I. UNIT Parts Diagram

  • Title

1

Honda 30310-ZW9-003

COIL ASSY., PULSER

$78.99

$

Usually ships in 3-6 days

0

2

Honda 30400-ZW9-003

SEE PART DETAILS - PRI; MODULE, IGNITION CONTROL (CDI)

$300.99

$

Usually ships in 3-6 days

0

3

Honda 30401-ZW9-000

PLATE, C.D.I.

$

$

Not available

4

Honda 30500-ZW9-013

COIL ASSY., IGNITION

$86.99

$

Usually ships in 3-6 days

0

5

Honda 30506-ZW9-003

SUSPENSION, IGNITION COIL

$8.49

$

Usually ships in 3-6 days

0

6

Honda 30515-ZW9-651

BRACKET, IGNITION COIL
(Superseded to 30515-ZW9-652)

$12.99

$

Usually ships in 3-6 days

0

7

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

8

Honda 90016-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90018-ZW9-000

SCREW-WASHER (5X16)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK)

$9.99

$

In Stock, only 1 left!

0

11

Honda 91540-S30-003

CLIP, HARNESS BAND (151.5MM) (NATURAL)

$4.49

$

Usually ships in 3-6 days

0
