BFP9.9 D5 XHTA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1400001 - BABJ-1499999) CYLINDER BLOCK + CRANKCASE COVER Parts Diagram

Outboard Engine, Made in Japan

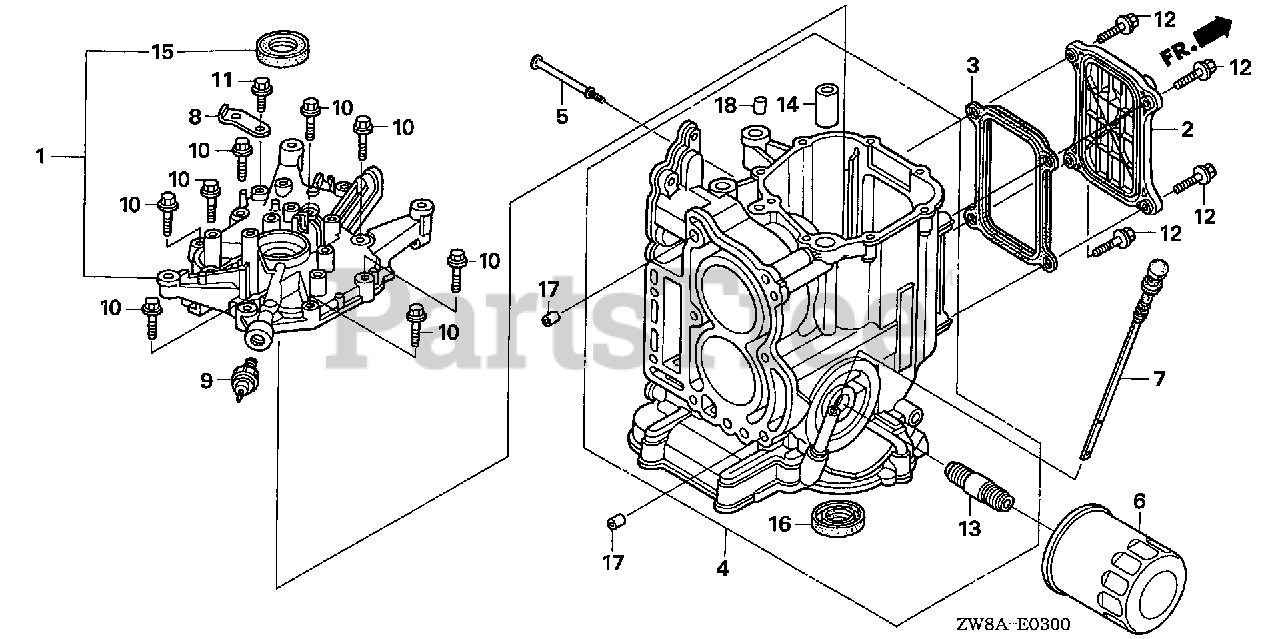

CYLINDER BLOCK + CRANKCASE COVER Parts Diagram

  • Title
1

Honda 11300-ZW9-406

COVER ASSY., CRANKCASE

$163.99

$

Usually ships in 3-6 days

0

2

Honda 11340-ZW9-000

COVER, CRANKCASE SIDE

$29.99

$

Usually ships in 3-6 days

0

3

Honda 11342-ZW9-000

GASKET, CRANKCASE SIDE COVER

$16.99

$

Usually ships in 3-6 days

0

4

Honda 12000-ZW9-405ZA

BLOCK ASSY., CYLINDER *NH8* (DARK GRAY)

$

$

Not available

5

Honda 12166-ZW9-000

STOPPER, ENGINE SIDE
(Superseded to 12166-ZW9-030)

$7.49

$

Usually ships in 3-6 days

0

6

Honda 15400-PFB-004

SEE PART DETAILS - SUP; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

Note: Use up to Engine SN 2001567.

$22.99

$

In Stock, only 2 left!

0

6

Honda 15400-PFB-014

SEE PART DETAILS - PRI; FILTER, OIL (TOYO ROKI)
(Superseded to 15400-ZZ3-003)

$22.99

$

In Stock, only 2 left!

0

7

Honda 15655-ZW9-000

DIPSTICK, OIL

$18.99

$

Usually ships in 3-6 days

0

8

Honda 32752-ZW9-000

STAY D, ENGINE WIRE HARNESS
(Superseded to 32752-ZW9-010)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 35490-ZW9-003

SWITCH ASSY., OIL PRESSURE

$41.99

$

In Stock, only 1 left!

0

10

Honda 90004-ZW9-000

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

12

Honda 90012-ZW9-000

BOLT, FLANGE (6X22) (CT200)

$

$

Not available

13

Honda 90018-PN3-000

HOLDER, OIL FILTER

$9.99

$

In Stock, only 1 left!

0

14

Honda 90705-PG2-000

PIN, DOWEL (14X20)

$10.99

$

Usually ships in 3-6 days

0

15

Honda 91201-ZW9-003

OIL SEAL (30X42X7)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 91204-ZW9-003

OIL SEAL (26X45X7)

$15.99

$

Usually ships in 3-6 days

0

17

Honda 94301-10120

PIN, DOWEL (10X12)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 94302-08140

PIN B, DOWEL (8X14)

$2.99

$

Usually ships in 3-6 days

0
