BFP9.9 D3 XHA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1200001 - BABJ-1299999) GEAR CASE@EXTENSION CASE Parts Diagram

Outboard Engine, Made in Japan

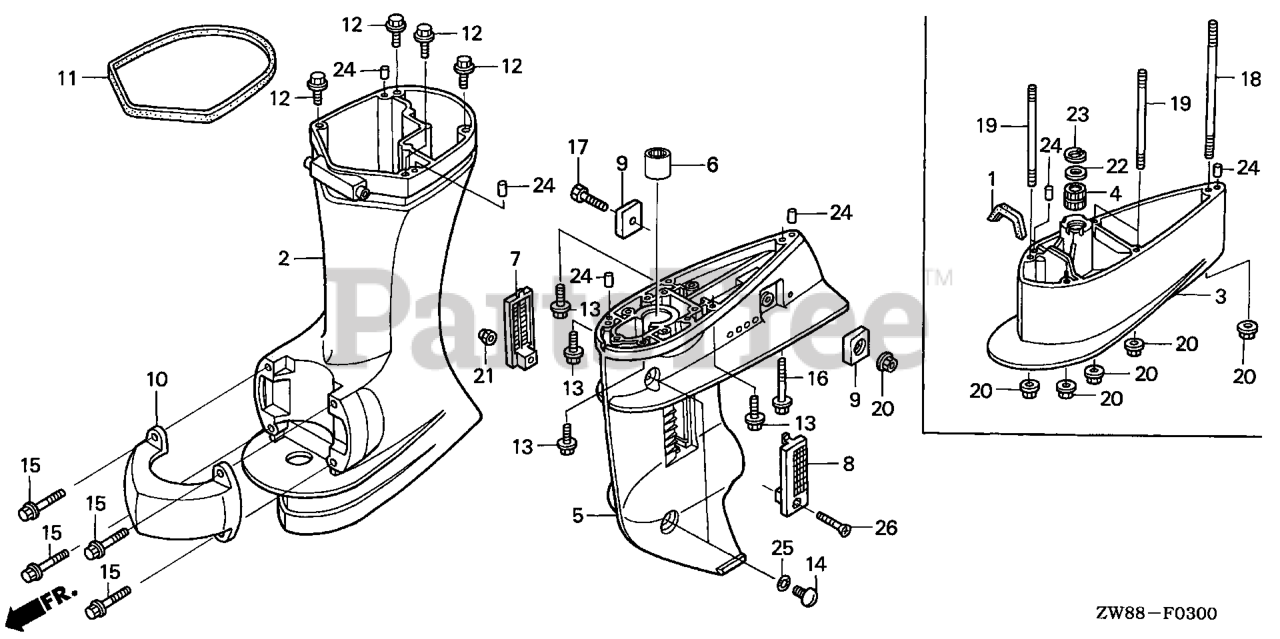

GEAR CASE@EXTENSION CASE Parts Diagram

  • Title
1

Honda 19243-ZW9-000

GROMMET, WATER PUMP HOUSING

$9.49

$

Usually ships in 3-6 days

0

2

Honda 40201-ZW9-C10ZA

SEE PART DETAILS - PRI; CASE, EXTENSION *NH282MU* (L) (OYSTER SILVER METALLIC-U)

$637.99

$

Usually ships in 3-6 days

0

3

Honda 40202-ZW9-A30ZA

SEPARATOR, EXTENSION *NH282MU* (UL) (OYSTER SILVER METALLIC-U)

$574.99

$

Usually ships in 3-6 days

0

4

Honda 40210-ZW9-A30

BUSH, VERTICAL SHAFT

$23.99

$

Usually ships in 3-6 days

0

5

Honda 41101-ZW9-A31ZA

CASE, GEAR *NH282MU* (UL) (OYSTER SILVER METALLIC-U)

$465.99

$

Usually ships in 3-6 days

0

6

Honda 41103-935-003

BEARING, NEEDLE (15X21X16)

$14.99

$

Usually ships in 3-6 days

0

7

Honda 41104-ZV5-000

SCREEN, R. WATER

$10.99

$

Usually ships in 3-6 days

0

8

Honda 41105-ZV5-000

SCREEN, L. WATER

$10.99

$

Usually ships in 3-6 days

0

9

Honda 41106-ZW9-000

METAL, ANODE

$12.99

$

Usually ships in 3-6 days

0

10

Honda 50111-ZW9-000ZA

HOUSING, MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$50.99

$

Usually ships in 3-6 days

0

11

Honda 63702-ZW9-000

RUBBER, COVER (LOWER)

$8.99

$

Usually ships in 3-6 days

0

12

Honda 90008-ZW9-000

BOLT, FLANGE (8X35) Use from Frame SN 4800713.

$6.49

$

Usually ships in 3-6 days

0

14

Honda 90101-ZW9-003

BOLT, OIL CHECK

$3.99

$

In Stock, only 2 left!

0

15

Honda 90105-ZW9-000

BOLT, FLANGE (6X20) (ENGINE NO.)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90113-ZV5-000

BOLT, HEX. (6X25) Use up to Frame SN 4800342.

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90124-ZW9-A30

BOLT, STUD (6X211)

$8.99

$

Usually ships in 3-6 days

0

19

Honda 90125-ZW9-A30

BOLT, STUD (6X162)

$7.49

$

Usually ships in 3-6 days

0

20

Honda 90205-PP9-020

NUT, SELF-LOCK (6MM)

$12.99

$

Usually ships in 3-6 days

0

21

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

22

Honda 90501-ZV5-A10

WASHER (20MM)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90651-ZV5-A10

CIRCLIP (INNER) (30MM)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 91301-216-000

O-RING (5.5X1.5)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 93700-05028-4J

SCREW, OVAL (5X28)

$3.99

$

Usually ships in 3-6 days

0
