BFP9.9 D1 XHSA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1000001 - BABJ-1099999) RECOIL STARTER Parts Diagram

Outboard Engine, Made in Japan

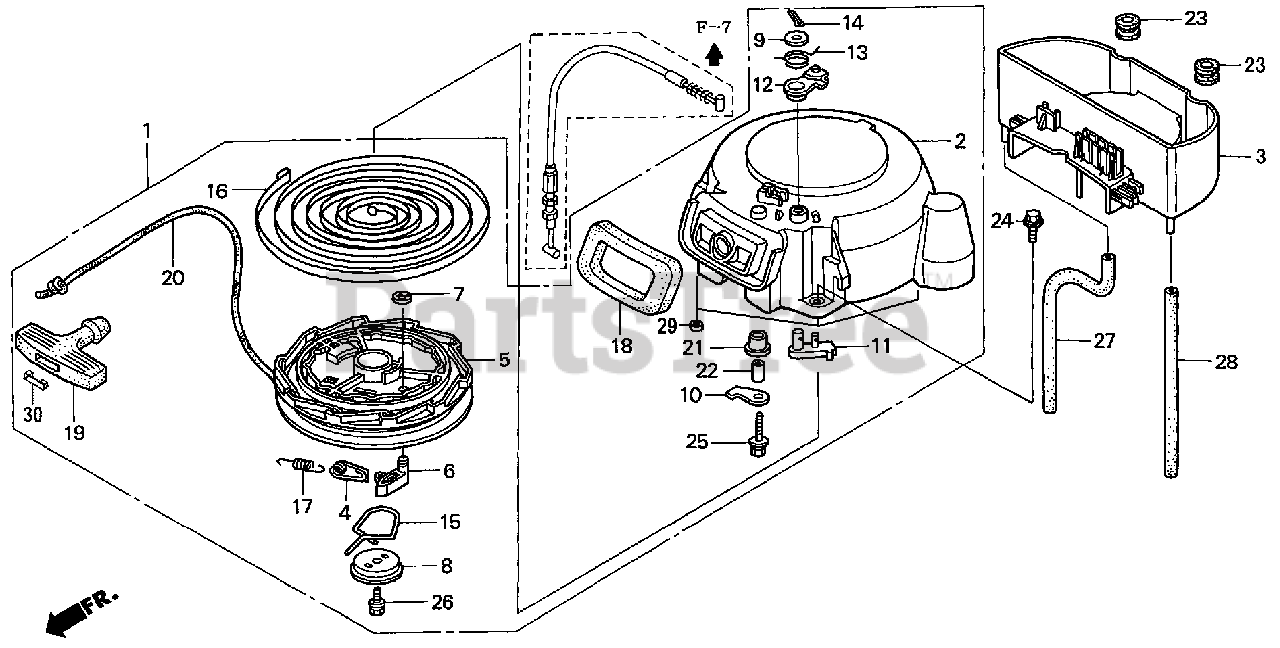

RECOIL STARTER Parts Diagram

  • Title
1

Honda 28400-ZW9-003

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL
(Superseded to 28400-ZW9-043)

$114.99

$

Usually ships in 3-6 days

0

1

Honda 28400-ZW9-013

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL

$

$

Currently unavailable

2

Honda 28401-ZW9-003

CASE, RECOIL STARTER

$

$

Not available

3

Honda 28414-ZW9-000

CASE B, STARTER

$32.99

$

Usually ships in 3-6 days

0

4

Honda 28418-ZW9-003

GUIDE, RECOIL STARTER

$4.49

$

Usually ships in 3-6 days

0

5

Honda 28421-ZW9-003

REEL, RECOIL STARTER

$49.99

$

Usually ships in 3-6 days

0

6

Honda 28422-ZW9-003

SEE PART DETAILS - SUP; RATCHET, STARTER
(Superseded to 04284-ZY1-000)

$6.99

$

Usually ships in 3-6 days

0

7

Honda 28428-ZW9-003

SEE PART DETAILS - SUP; E-RING
(Superseded to 04284-ZY1-000)

$6.99

$

Usually ships in 3-6 days

0

8

Honda 28431-ZW9-003

PLATE, FRICTION

$6.99

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0

10

Honda 28433-ZV7-003

WASHER, THRUST

$6.49

$

Usually ships in 3-6 days

0

11

Honda 28435-ZV4-003

STOPPER, REEL

$7.49

$

Usually ships in 3-6 days

0

12

Honda 28436-ZV4-003

ARM, STOPPER

$4.99

$

Usually ships in 3-6 days

0

13

Honda 28437-ZV4-003

SPRING, STOPPER

$3.49

$

Usually ships in 3-6 days

0

14

Honda 28438-ZV4-003

PIN, SPLIT

$3.49

$

In Stock, only 1 left!

0

15

Honda 28441-ZW9-003

SPRING, FRICTION

$6.49

$

Usually ships in 3-6 days

0

16

Honda 28442-ZW9-003

SPRING, RECOIL STARTER

$35.99

$

Usually ships in 3-6 days

0

17

Honda 28443-ZW9-003

SPRING, RETURN

$3.99

$

Usually ships in 3-6 days

0

18

Honda 28455-ZW9-000

SEAL, RECOIL

$21.99

$

Usually ships in 3-6 days

0

19

Honda 28461-ZV4-003

SEE PART DETAILS - SUP; KNOB, STARTER
(Superseded to 28461-ZV4-013)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 28462-ZV4-003

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#5X73") (N/A: USE P/N 08550-ZG921-11)

$

$

Currently unavailable

21

Honda 28471-ZV7-003

ROLLER, STARTER

$17.99

$

Usually ships in 3-6 days

0

22

Honda 28476-ZV7-003

GUIDE, ROLLER

$6.99

$

Usually ships in 3-6 days

0

23

Honda 80103-GJ5-000

GROMMET, ENGINE COVER

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90003-ZW9-000

BOLT, FLANGE (6X22)
(Superseded to 90003-ZY9-M01)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90021-ZV4-003

BOLT, HEX. (6X25)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 90022-ZV4-003

BOLT, HEX. (6X14)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 91403-ZW9-000

TUBE, WATER DRAIN

$11.99

$

Usually ships in 3-6 days

0

28

Honda 95005-80001-30M

BULK HOSE, VACUUM (8X1000) (8X240)

$18.99

$

Usually ships in 3-6 days

0

29

Honda 91505-ZW9-003

COLLAR (6.5X11X10)

$3.49

$

Usually ships in 3-6 days

0
