BFP9.9 D1 XHSA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1000001 - BABJ-1099999) GEAR CASE + EXTENSION CASE Parts Diagram

Outboard Engine, Made in Japan

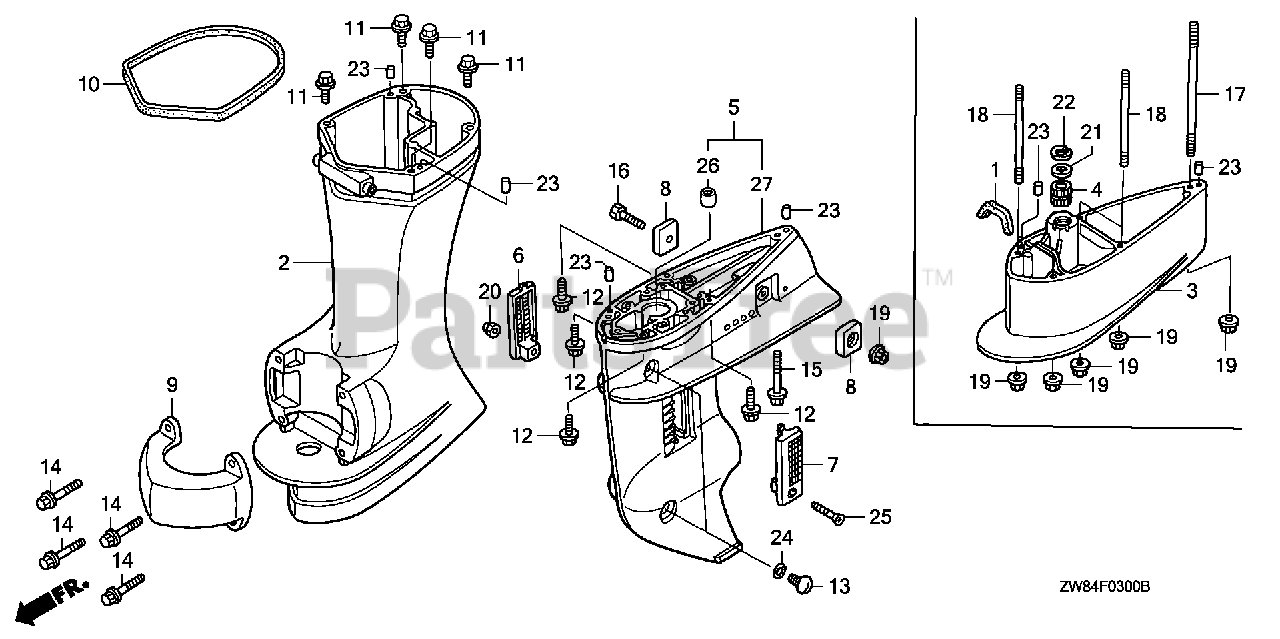

GEAR CASE + EXTENSION CASE Parts Diagram

  • Title
1

Honda 19243-ZW9-000

GROMMET, WATER PUMP HOUSING

$8.49

$

Usually ships in 3-6 days

0

2

Honda 40201-ZW9-630ZA

SEE PART DETAILS - SUP; CASE, EXTENSION *NH282MU* (L) (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable

3

Honda 40202-ZW9-A30ZA

SEPARATOR, EXTENSION *NH282MU* (UL) (OYSTER SILVER METALLIC-U)

$526.99

$

Usually ships in 3-6 days

0

4

Honda 40210-ZW9-A30

BUSH, VERTICAL SHAFT

$21.99

$

Usually ships in 3-6 days

0

5

Honda 41100-ZW9-A30ZA

CASE, GEAR *NH282MU* (UL) (OYSTER SILVER METALLIC-U)

$

$

Not available

6

Honda 41104-ZV5-000

SCREEN, R. WATER

$9.99

$

Usually ships in 3-6 days

0

7

Honda 41105-ZV5-000

SCREEN, L. WATER

$9.99

$

Usually ships in 3-6 days

0

8

Honda 41106-ZW9-000

METAL, ANODE

$11.99

$

Usually ships in 3-6 days

0

9

Honda 50111-ZW9-000ZA

HOUSING, MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$46.99

$

Usually ships in 3-6 days

0

10

Honda 63702-ZW9-000

RUBBER, COVER (LOWER)

$8.49

$

Usually ships in 3-6 days

0

11

Honda 90008-ZW9-000

BOLT, FLANGE (8X35)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 90101-ZW9-000

BOLT, OIL CHECK

$

$

Not available

14

Honda 90105-ZW9-000

BOLT, FLANGE (6X20)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90113-ZV5-000

BOLT, HEX. (6X25)

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90124-ZW9-A30

BOLT, STUD (6X211)

$8.49

$

Usually ships in 3-6 days

0

18

Honda 90125-ZW9-A30

BOLT, STUD (6X162)

$6.99

$

Usually ships in 3-6 days

0

19

Honda 90205-PP9-020

NUT, SELF-LOCK (6MM)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

21

Honda 90501-ZV5-A10

WASHER (20MM)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90651-ZV5-A10

CIRCLIP (INNER) (30MM)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

24

Honda 91301-216-000

O-RING (5.5X1.5)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 93700-05028-4J

SCREW, OVAL (5X28)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 41103-935-003

BEARING, NEEDLE (15X21X16)

$13.99

$

In Stock, only 1 left!

0

27

Honda 41101-ZW9-A30ZA

SEE PART DETAILS - SUP; CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable
