BFP8 D2 XRA (BAAJ) - Honda Outboard Engine, Made in Japan (SN: BAAJ-1100001 - BAAJ-9999999) REGULATOR + STARTER CABLE Parts Diagram

Outboard Engine, Made in Japan

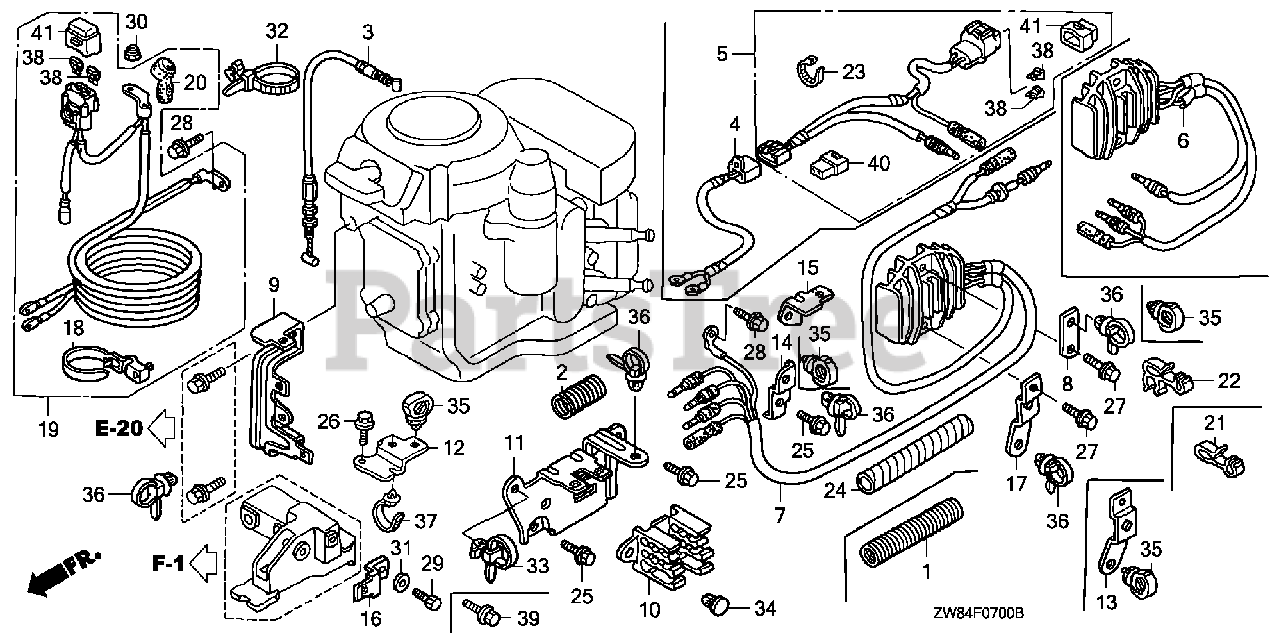

REGULATOR + STARTER CABLE Parts Diagram

  • Title

3

Honda 17940-ZW9-010

SEE PART DETAILS - PRI; CABLE, NEUTRAL STARTING

$17.99

$

Usually ships in 3-6 days

0

7

Honda 31750-ZW9-732

SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR

$146.99

$

Usually ships in 3-6 days

0

8

Honda 32103-ZW9-000

SEE PART DETAILS - SUP; BRACKET, CLIP F

Note: Use up to Frame SN 1103747.

$

$

Currently unavailable

8

Honda 32103-ZW9-010

SEE PART DETAILS - PRI; BRACKET, CLIP F

Note: Use from Frame SN 1103748.

$1.99

$

Usually ships in 3-6 days

0

9

Honda 32108-ZW9-000

BRACKET, CONNECTOR (A)

$

$

Not available

10

Honda 32109-ZV4-000

BRACKET, CONNECTOR (B)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 32111-ZW9-000

BRACKET, CONNECTOR (C)
(Superseded to 32111-ZW9-010)

$16.99

$

Usually ships in 3-6 days

0

12

Honda 32112-ZW9-000

BRACKET, STARTER CABLE

$5.49

$

Usually ships in 3-6 days

0

14

Honda 32114-ZW9-730

BRACKET, CLIP B

$4.49

$

Usually ships in 3-6 days

0

15

Honda 32115-ZW9-000

BRACKET, FUSE CASE
(Superseded to 32115-ZW9-010)

$5.99

$

Usually ships in 3-6 days

0

17

Honda 32118-ZW9-730

BRACKET, E-CLIP
(Superseded to 32118-ZW9-731)

$6.49

$

Usually ships in 3-6 days

0

18

Honda 32121-HA0-003

BAND, WIRE

$10.99

$

Usually ships in 3-6 days

0

19

Honda 32410-ZW9-731

CABLE ASSY., STARTER

$248.99

$

Usually ships in 3-6 days

0

20

Honda 32412-ZV4-811

COVER, MAGNETIC SWITCH TERMINAL

Note: Use up to Frame SN 1103747.

$7.99

$

Usually ships in 3-6 days

0

22

Honda 32765-PD6-000

CLAMP, DISTRIBUTOR WIRE

$7.49

$

Usually ships in 3-6 days

0

24

Honda 36104-ZW9-003

TUBE, SPIRAL A

$10.99

$

Usually ships in 3-6 days

0

25

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

26

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

27

Honda 90114-ZW9-000

BOLT, FLANGE (6X26) (CT200)
(Superseded to 90114-ZW9-020)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 90013-ZW9-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 90203-ZW9-801

NUT, LOCK (6MM)

Note: Use up to Frame SN 1103747.

$3.49

$

Usually ships in 3-6 days

0

30

Honda 90204-ZY1-003

NUT, LOCK (6MM)

Note: Use from Frame SN 1103748.

$5.99

$

Usually ships in 3-6 days

0

32

Honda 90650-KV6-003

BAND, WIRE

$4.49

$

Usually ships in 3-6 days

0

33

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (BLACK)

$9.99

$

Usually ships in 3-6 days

0

34

Honda 90683-ZV4-003

CLIP, ANCHOR

$2.99

$

Usually ships in 3-6 days

0

35

Honda 90691-ZB7-003

SEE PART DETAILS - PRI; CLIP, HARNESS

$4.49

$

Usually ships in 3-6 days

0

36

Honda 91540-S30-003

CLIP, HARNESS BAND (151.5MM) (NATURAL)

$4.49

$

Usually ships in 3-6 days

0

37

Honda 91547-SF4-003

BAND, WIRE HARNESS (123.5MM) (BLUE)

$8.49

$

Usually ships in 3-6 days

0

38

Honda 98200-32000

FUSE, BLADE (20A)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 38218-ZW9-003

COVER ASSY., FUSE (20A)

$9.99

$

Usually ships in 3-6 days

0
