BFP60 AK1 LRTA (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-8100001 - BBFJ-9999999) STARTER MOTOR Parts Diagram

Marine Engine, Made in Japan

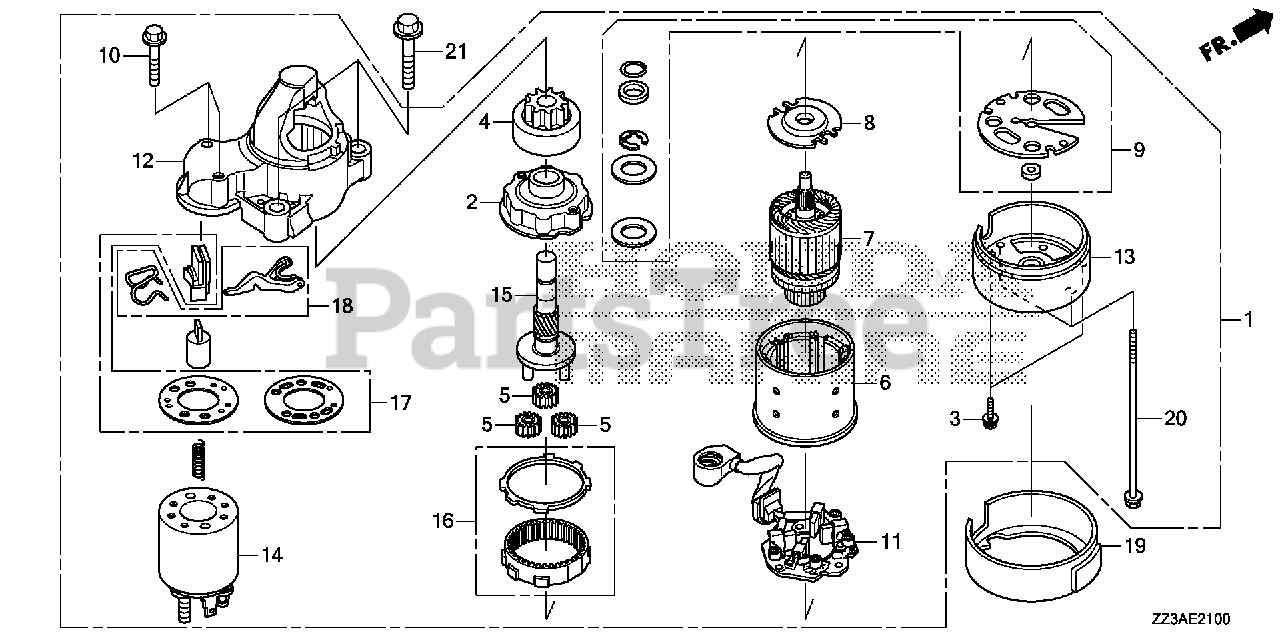

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-ZZ3-003

STARTER MOTOR ASSY.

$761.99

$

Usually ships in 3-6 days

0

2

Honda 31212-ZZ3-003

BRACKET ASSY., CENTER

$129.99

$

Usually ships in 3-6 days

0

3

Honda 31213-ZZ3-003

SCREW (M4X16)

$1.49

$

Usually ships in 3-6 days

0

4

Honda 31214-ZZ3-003

PINION ASSY.

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31215-ZZ3-003

GEAR, PLANET

$8.99

$

Usually ships in 3-6 days

0

6

Honda 31216-ZZ3-003

YOKE ASSY.

$251.99

$

Usually ships in 3-6 days

0

7

Honda 31217-ZZ3-003

ARMATURE ASSY.

$205.99

$

Usually ships in 3-6 days

0

8

Honda 31224-ZZ3-003

BRACKET, CENTER

$82.99

$

Usually ships in 3-6 days

0

9

Honda 31225-ZZ3-003

STOPPER SET, WASHER

$10.99

$

Usually ships in 3-6 days

0

10

Honda 31226-ZZ3-003

BOLT (M6X37)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 31231-ZZ3-003

HOLDER ASSY., BRUSH

$76.99

$

Usually ships in 3-6 days

0

12

Honda 31235-ZZ3-003

CASE ASSY., GEAR

$150.99

$

Usually ships in 3-6 days

0

13

Honda 31236-ZZ3-003

COVER ASSY., RR.

$124.99

$

Usually ships in 3-6 days

0

14

Honda 31240-ZZ3-003

SWITCH ASSY., MAGNETIC

$339.99

$

Usually ships in 3-6 days

0

15

Honda 31246-ZZ3-003

SHAFT, PINION

$45.99

$

Usually ships in 3-6 days

0

16

Honda 31247-ZZ3-003

GEAR ASSY. (INNER)

$47.99

$

Usually ships in 3-6 days

0

17

Honda 31249-ZZ3-003

COVER KIT, DUST

$23.99

$

Usually ships in 3-6 days

0

18

Honda 31250-ZZ3-003

LEVER SET, SHIFT

$15.99

$

Usually ships in 3-6 days

0

19

Honda 31258-ZZ3-000

SUSPENSION, STARTER

$7.49

$

Usually ships in 3-6 days

0

20

Honda 31261-ZZ3-003

BOLT, THROUGH

$6.49

$

Usually ships in 3-6 days

0

21

Honda 90126-ZW4-000

BOLT, FLANGE (8X45)
(Superseded to 90026-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0
