BFP60 A XRTA (BBFJ) - Honda Marine Engine, Made in Japan (SN: BBFJ-8000001 - BBFJ-9999999) POWER TRIM-TILT Parts Diagram

Marine Engine, Made in Japan

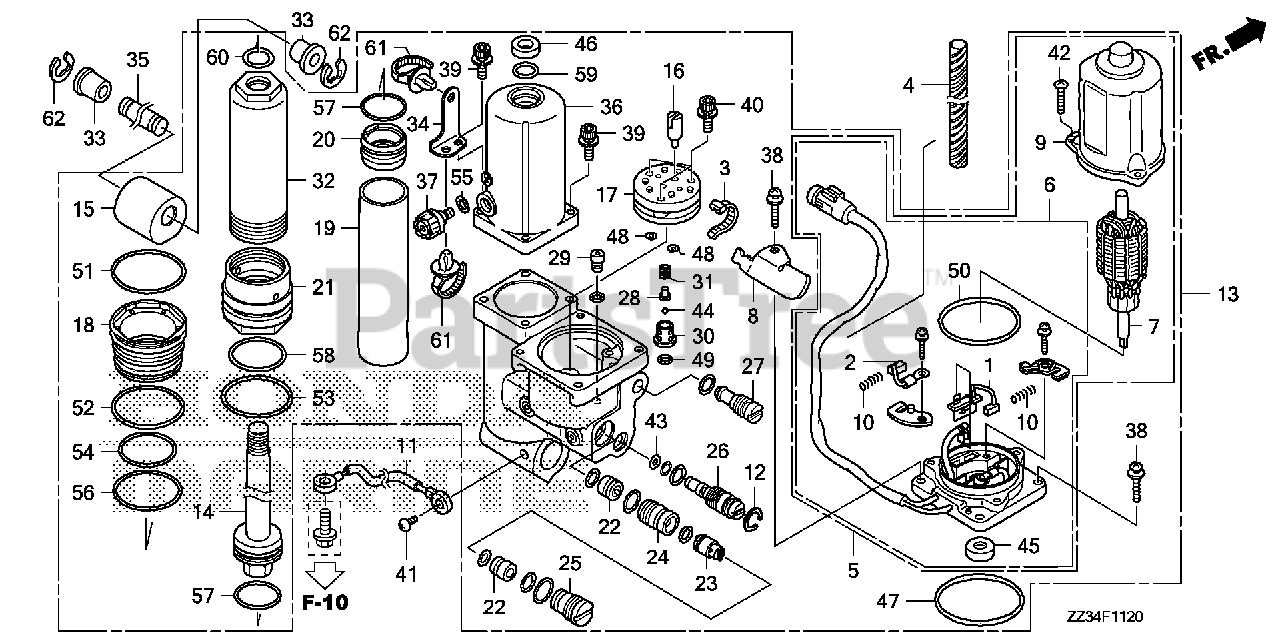

POWER TRIM-TILT Parts Diagram

  • Title

1

Honda 30280-ZW4-H11

BREAKER ASSY.

$121.99

$

Usually ships in 3-6 days

0

2

Honda 31106-ZY3-003

BRUSH ASSY.

$43.99

$

Usually ships in 3-6 days

0

3

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

$2.49

$

Usually ships in 3-6 days

0

4

Honda 36104-ZY9-003

TUBE, SPIRAL (12X14.6)

$6.99

$

Usually ships in 3-6 days

0

5

Honda 36120-ZZ3-003

MOTOR ASSY., POWER TILT

$690.99

$

Usually ships in 3-6 days

0

6

Honda 36122-ZZ3-003

BRACKET ASSY.

$470.99

$

Usually ships in 3-6 days

0

7

Honda 36123-ZW4-H12

ARMATURE

$193.99

$

Usually ships in 3-6 days

0

8

Honda 36125-ZW4-H11

CLAMP, WIRE

$9.99

$

Usually ships in 3-6 days

0

9

Honda 36129-ZV5-822

YOKE

$203.99

$

Usually ships in 3-6 days

0

10

Honda 36136-ZV5-821

SPRING, MOTOR

$9.99

$

Usually ships in 3-6 days

0

11

Honda 40219-ZY3-013

SEE PART DETAILS - PRI; WIRE, LEAD (1.5X116MM)
(Superseded to 40219-ZY3-023)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 53549-ZY1-871

CIRCLIP (INNER) (16)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 56000-ZZ3-033

SEE PART DETAILS - PRI; TRIM-TILT ASSY., POWER
(Superseded to 56000-ZZ3-043)

$1509.99

$

Usually ships in 3-6 days

0

14

Honda 56110-ZW4-H11

ROD, PISTON

$152.99

$

Usually ships in 3-6 days

0

15

Honda 56113-ZW4-H11

METAL, JOINT

$75.99

$

Usually ships in 3-6 days

0

16

Honda 56113-766-801

JOINT, DRIVE

$19.99

$

Usually ships in 3-6 days

0

17

Honda 56114-ZW4-H11

PUMP

$285.99

$

Usually ships in 3-6 days

0

18

Honda 56115-ZW4-H11

GUIDE, TUBE (OUTER)

$135.99

$

Usually ships in 3-6 days

0

19

Honda 56123-ZZ3-003

CYLINDER, TILT

$15.99

$

Usually ships in 3-6 days

0

20

Honda 56130-ZW4-H12

PISTON, FREE

$72.99

$

Usually ships in 3-6 days

0

21

Honda 56135-ZZ3-003

LOWER TILT CYLINDER

$29.99

$

Usually ships in 3-6 days

0

22

Honda 56140-ZZ3-003

VALVE B

$89.99

$

Usually ships in 3-6 days

0

23

Honda 56150-ZW4-H11

SPOOL

$48.99

$

Usually ships in 3-6 days

0

24

Honda 56161-ZY1-871

SLEEVE

$54.99

$

Usually ships in 3-6 days

0

25

Honda 56163-ZZ3-003

PLUG

$30.99

$

Usually ships in 3-6 days

0

26

Honda 56170-ZZ3-003

VALVE, MANUAL

$147.99

$

Usually ships in 3-6 days

0

27

Honda 56180-ZZ3-003

VALVE

$89.99

$

Usually ships in 3-6 days

0

28

Honda 56182-ZW4-H11

GUIDE, SPRING

$17.99

$

Usually ships in 3-6 days

0

29

Honda 56190-ZZ3-003

VALVE SET

$38.99

$

Usually ships in 3-6 days

0

30

Honda 56191-ZW4-H11

SEAT B, VALVE

$23.99

$

Usually ships in 3-6 days

0

31

Honda 56192-ZW4-H11

SPRING, VALVE

$4.49

$

Usually ships in 3-6 days

0

32

Honda 56511-ZZ3-003

TUBE (OUTER)

$117.99

$

Usually ships in 3-6 days

0

33

Honda 56512-ZV5-000

BUSH, CYLINDER (UPPER)

$4.49

$

Usually ships in 3-6 days

0

34

Honda 56517-ZW4-H11

PLATE, SET

$8.49

$

Usually ships in 3-6 days

0

35

Honda 56532-ZZ5-C00

SEE PART DETAILS - PRI; PIN, CYLINDER (UPPER)

$22.99

$

Usually ships in 3-6 days

0

36

Honda 56851-ZZ3-003

RESERVOIR

$44.99

$

Usually ships in 3-6 days

0

37

Honda 56860-ZZ3-003

CAP, OIL TANK

$6.49

$

Usually ships in 3-6 days

0

38

Honda 90001-ZV5-791

SCREW-WASHER

$4.99

$

Usually ships in 3-6 days

0

39

Honda 90111-ZW4-H11

BOLT, SOCKET (5X0.8)

$12.99

$

Usually ships in 3-6 days

0

40

Honda 90115-ZV5-821

BOLT, SOCKET

$22.99

$

Usually ships in 3-6 days

0

41

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

42

Honda 90134-ZV5-821

SCREW, PAN (5X20)

$4.99

$

Usually ships in 3-6 days

0

43

Honda 90402-V15-003

SEE PART DETAILS - PRI; WASHER, SEAL

$5.99

$

Usually ships in 3-6 days

0

44

Honda 90921-ZW4-H11

BALL, STEEL

$1.49

$

Usually ships in 3-6 days

0

45

Honda 91203-ZV5-821

OIL SEAL

$41.99

$

Usually ships in 3-6 days

0

46

Honda 91251-ZW4-H11

SEAL, WATER

Note: Use up to Frame SN 8000642.

$22.99

$

Usually ships in 3-6 days

0

46

Honda 91254-ZZ3-003

SEAL, WATER
(Superseded to 91254-ZZ3-013)

Note: Use from Frame SN 8000643.

$4.99

$

Usually ships in 3-6 days

0

46

Honda 91254-ZZ3-013

SEAL, WATER

Note: Use from Frame SN 8000643.

$4.99

$

Usually ships in 3-6 days

0

47

Honda 91302-ZV5-821

O-RING (1.8X69.6)

$6.99

$

Usually ships in 3-6 days

0

48

Honda 91304-ZV5-821

O-RING (1.5X6.5)

$4.99

$

Usually ships in 3-6 days

0

49

Honda 91311-ZV5-822

O-RING (1.5X3.5)

$3.49

$

Usually ships in 3-6 days

0

50

Honda 91318-ZV5-822

O-RING (2.0X55.5)

$7.49

$

Usually ships in 3-6 days

0

51

Honda 91351-ZW4-H11

O-RING (2.0X52.5)

$6.99

$

Usually ships in 3-6 days

0

52

Honda 91352-ZW4-H11

O-RING (2.0X49.5)

$6.99

$

Usually ships in 3-6 days

0

53

Honda 91353-ZZ3-003

O-RING (3.5X41.7)

$4.49

$

Usually ships in 3-6 days

0

54

Honda 91354-ZZ3-003

O-RING (2.4X41.2)

$4.49

$

Usually ships in 3-6 days

0

55

Honda 91355-ZW4-H11

O-RING (1.8X10.8)

$8.49

$

Usually ships in 3-6 days

0

56

Honda 91355-ZZ3-003

O-RING (2.0X45.5)

$4.49

$

Usually ships in 3-6 days

0

57

Honda 91356-ZW4-H11

O-RING (2.0X28.5)

$8.49

$

Usually ships in 3-6 days

0

58

Honda 91357-ZW4-H11

O-RING (2.0X34.5)

$8.49

$

Usually ships in 3-6 days

0

59

Honda 91357-ZZ3-003

O-RING (1.9X15.8)

$3.99

$

Usually ships in 3-6 days

0

60

Honda 91359-ZW4-H11

O-RING (2.4X15.8)

$4.49

$

Usually ships in 3-6 days

0

61

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

62

Honda 94540-10029

E-RING (10MM)

$8.99

$

Usually ships in 3-6 days

0
