BFP15 DK0 XRTA (BALJ) - Honda Outboard Engine, Made in Japan (SN: BALJ-1400001 - BALJ-1499999) OIL CASE + SHIFT SHAFT (REMOTE SPECIFICATION) Parts Diagram

Outboard Engine, Made in Japan

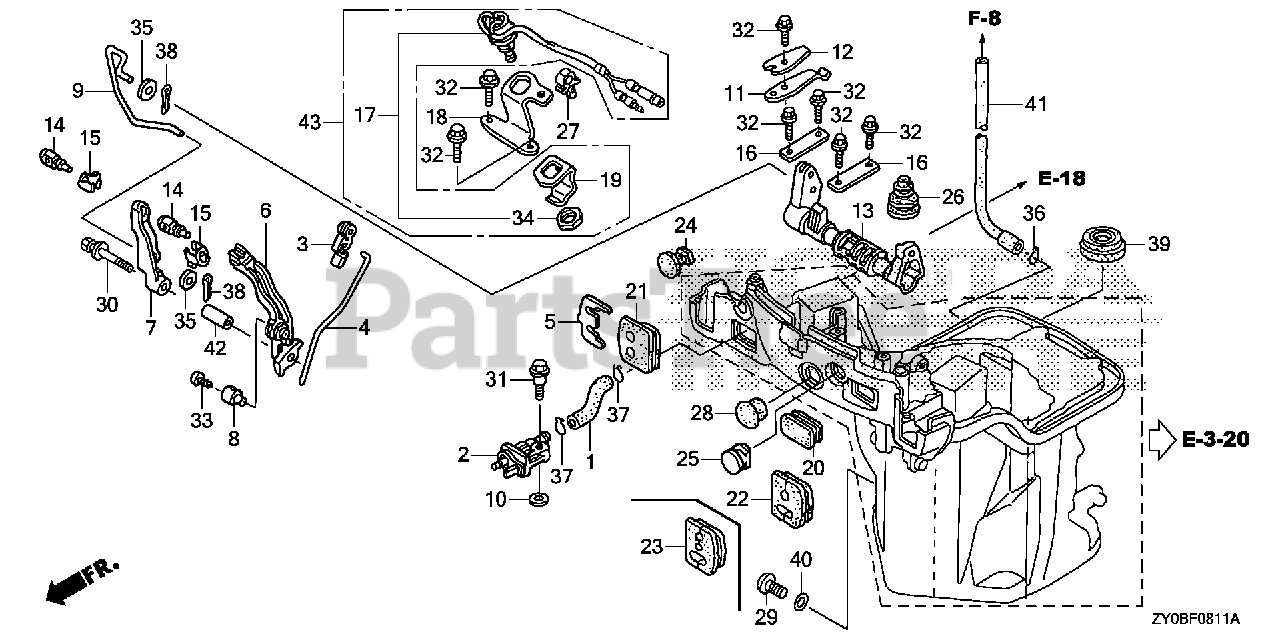

OIL CASE + SHIFT SHAFT (REMOTE SPECIFICATION) Parts Diagram

  • Title
1

Honda 16851-ZW9-000

TUBE A, FUEL

Note: Use up to Frame SN 1406268.

$9.99

$

Usually ships in 3-6 days

0

1

Honda 16851-ZW9-900

TUBE A, FUEL (FKM)

Note: Use from Frame SN 1406269.

$9.99

$

Usually ships in 3-6 days

0

2

Honda 17710-ZW9-033

CONNECTOR ASSY., FUEL (B)

$60.99

$

Usually ships in 3-6 days

0

3

Honda 17838-ZW9-000

LINKAGE, PIVOT

$9.49

$

In Stock, only 1 left!

0

4

Honda 17841-ZY1-810

ROD, THROTTLE

$5.49

$

Usually ships in 3-6 days

0

5

Honda 17877-ZW9-831

PLATE, REMOTE CONTROL CABLE

$8.49

$

Usually ships in 3-6 days

0

6

Honda 17931-ZW9-830

ARM, THROTTLE REMOTE

$18.99

$

Usually ships in 3-6 days

0

7

Honda 17932-ZW9-830

ARM, SHIFT LINK

$17.99

$

Usually ships in 3-6 days

0

8

Honda 17933-ZV4-000

HOLDER, THROTTLE ROD

$12.99

$

Usually ships in 3-6 days

0

9

Honda 17933-ZW9-830

ROD, SHIFT LINK

$

$

Not available

10

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

11

Honda 24218-ZW9-000

SPRING, CLICK

$10.99

$

Usually ships in 3-6 days

0

12

Honda 24221-ZW9-010

SEE PART DETAILS - PRI; SPRING, CLICK ASSIST

$10.99

$

Usually ships in 3-6 days

0

13

Honda 24611-ZW9-010

SEE PART DETAILS - PRI; SHAFT, SHIFT

$19.99

$

Usually ships in 3-6 days

0

14

Honda 24618-ZW9-830

PIVOT, SHIFT

$16.99

$

Usually ships in 3-6 days

0

15

Honda 24619-ZW9-830

PLATE, LOCK

$12.99

$

Usually ships in 3-6 days

0

16

Honda 24626-ZW9-010

SEE PART DETAILS - PRI; PLATE, SHIFT SHAFT

$2.99

$

Usually ships in 3-6 days

0

17

Honda 04302-ZY1-010

SWITCH ASSY., NEUTRAL
(Superseded to 04302-ZY1-020)

$30.99

$

Usually ships in 3-6 days

0

18

Honda 35476-ZW9-730

BRACKET, NEUTRAL SWITCH
(Superseded to 35476-ZW9-731)

$7.99

$

Usually ships in 3-6 days

0

19

Honda 35618-ZW9-000

PLATE, NEUTRAL SWITCH
(Superseded to 35618-ZW9-010)

$5.99

$

In Stock, only 1 left!

0

20

Honda 40104-ZW9-830

GROMMET G, OIL CASE

$8.49

$

Usually ships in 3-6 days

0

21

Honda 40105-ZW9-832

SEE PART DETAILS - PRI; GROMMET A, OIL CASE

$10.99

$

Usually ships in 3-6 days

0

23

Honda 40106-ZY1-870

GROMMET B, OIL CASE (PT)

$8.99

$

Usually ships in 3-6 days

0

24

Honda 40107-ZW9-720

GROMMET F, OIL CASE

$5.99

$

Usually ships in 3-6 days

0

25

Honda 40108-ZW9-830

GROMMET D, OIL CASE

$5.99

$

Usually ships in 3-6 days

0

26

Honda 40109-ZW9-000

GROMMET E, OIL CASE

$8.49

$

Usually ships in 3-6 days

0

27

Honda 46391-VM0-003

CLIP, BRAKE PIPE (A)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 53115-732-000

CAP, HANDLE (LOWER)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90101-ZW9-003

BOLT, OIL CHECK

$3.99

$

Usually ships in 3-6 days

0

30

Honda 90103-ZY1-000

BOLT-WASHER (6X40)

$7.99

$

Usually ships in 3-6 days

0

31

Honda 90112-ZY1-000

BOLT, SPECIAL (6X22) (CT200)

$4.49

$

Usually ships in 3-6 days

0

32

Honda 90113-ZW9-000

BOLT, FLANGE (5X12) (CT200)
(Superseded to 90113-ZW9-020)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 90116-ZV1-000

BOLT, RECESSED (5X8)

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90302-ZV5-003

NUT, HEX. (20MM)

$7.49

$

Usually ships in 3-6 days

0

35

Honda 90518-ZW9-830

WASHER, PLAIN (7MM)

$4.99

$

Usually ships in 3-6 days

0

36

Honda 90603-ZV4-000

CLIP, TUBE (B10)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 16163-GHB-610

CLIP, TUBE

Note: Use from Frame SN 1406269.

$2.49

$

Usually ships in 3-6 days

0

37

Honda 90604-ZV0-000

CLIP, TUBE (B12)

Note: Use up to Frame SN 1406268.

$1.99

$

Usually ships in 3-6 days

0

38

Honda 90759-ZV1-000

PIN, SPLIT (2.0)

$1.99

$

Usually ships in 3-6 days

0

39

Honda 91202-ZY1-013

SEAL, WATER (15X28X6) (ENGINE NO.)

$12.99

$

Usually ships in 3-6 days

0

40

Honda 91301-216-000

O-RING (5.5X1.5)

$3.49

$

Usually ships in 3-6 days

0

41

Honda 91402-ZW9-000

TUBE, WATER CHECK

$4.99

$

Usually ships in 3-6 days

0

42

Honda 91552-ZW9-830

COLLAR, DISTANCE (6X11X27)

$12.99

$

Usually ships in 3-6 days

0
