BF90 DK4 LRTA (BBCJ) - Honda Marine Engine, Made in Japan (SN: BBCJ-1300001 - BBCJ-1399999) METER KIT Parts Diagram

Marine Engine, Made in Japan

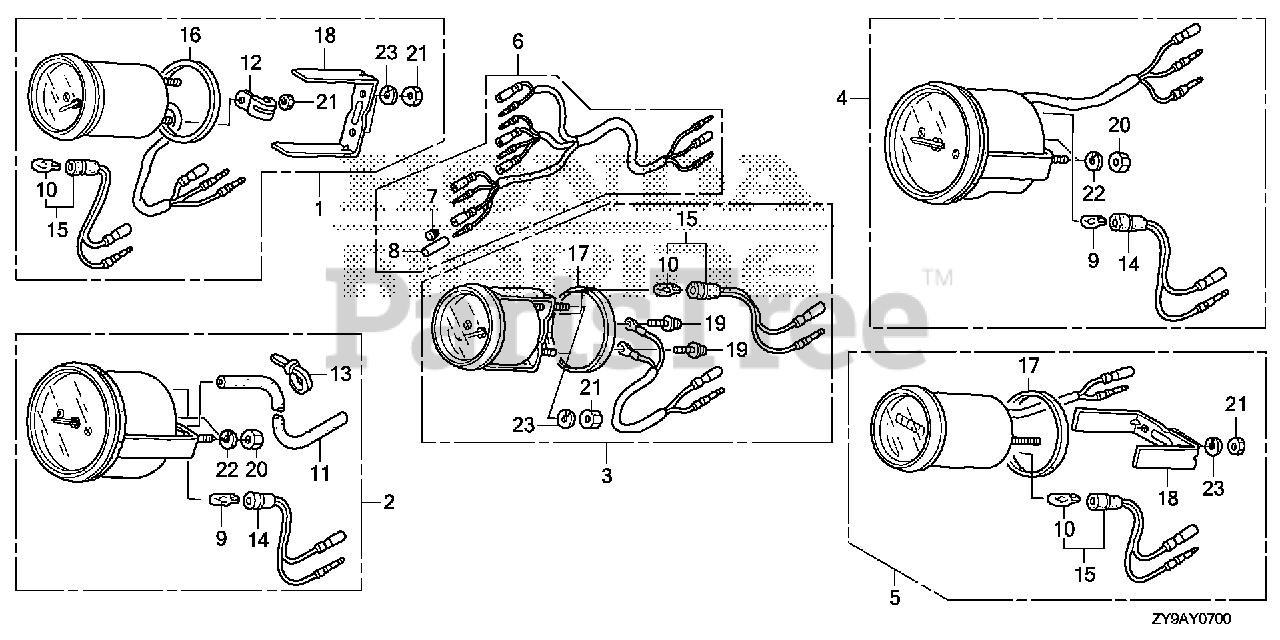

METER KIT Parts Diagram

  • Title

1

Honda 06372-ZW5-U01

SEE PART DETAILS - PRI; METER KIT, TRIM (WHITE)
(Superseded to 06372-ZW5-U02)

Note: (Optional)

$124.99

$

Usually ships in 3-6 days

0

1

Honda 06372-ZW5-U11

METER KIT, TRIM (B) (BLACK)

Note: (Optional)

$

$

Not available

2

Honda 06373-ZW5-U01

SPEEDOMETER KIT (WHITE)

Note: (Optional)

$306.99

$

Usually ships in 3-6 days

0

2

Honda 06373-ZW5-U11

SPEEDOMETER KIT *NHA85* (B) (BLACK)

Note: (Optional)

$306.99

$

Usually ships in 3-6 days

0

3

Honda 06374-ZW5-U00

METER KIT, VOLT (WHITE)

Note: (Optional)

$68.99

$

Usually ships in 3-6 days

0

3

Honda 06374-ZW5-U10

METER KIT, VOLT *NHA85* (B) (BLACK)

Note: (Optional)

$68.99

$

Usually ships in 3-6 days

0

4

Honda 06375-ZW5-U01

SEE PART DETAILS - PRI; METER KIT, TACHO

Note: (Optional)

$289.99

$

Usually ships in 3-6 days

0

4

Honda 06375-ZW5-U11

SEE PART DETAILS - PRI; METER KIT, TACHO (B)

Note: (Optional)

$268.99

$

Usually ships in 3-6 days

0

5

Honda 06397-ZW5-U00

METER KIT, HOUR (WHITE) (NA USE ALT:39700-ZW5-000ZA)

Note: (Optional)

$

$

Currently unavailable

5

Honda 06397-ZW5-U10

METER KIT, HOUR (B) (NA USE ALT:39700-ZW5-000ZA)

Note: (Optional)

$

$

Currently unavailable

6

Honda 32550-ZW5-U00

HARNESS ASSY., METER (B)

Note: (Optional)

$46.99

$

Usually ships in 3-6 days

0

7

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

8

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER) (ENGINE NO.)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 34908-MG9-951

BULB, WEDGE BASE (12V1.7W) (TOSHIBA)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 37202-ZW5-U01

TUBE, SPEED METER (4X7X8000)

Note: (Optional)

$43.99

$

Usually ships in 3-6 days

0

12

Honda 37215-KM1-670

CLAMP

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 37226-MZ5-008

BAND, SELF-LOCK

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

14

Honda 37258-ZV5-U01

SOCKET

Note: (Optional)

$18.99

$

Usually ships in 3-6 days

0

15

Honda 37258-ZW5-U01

SOCKET

Note: (Optional)

$18.99

$

Usually ships in 3-6 days

0

16

Honda 37263-ZV5-821

GASKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 37264-ZV5-821

GASKET

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 37266-ZV5-821

BRACKET (TO 1015209) (FROM 1015210)

Note: (Optional)

$22.99

$

Usually ships in 3-6 days

0

19

Honda 37305-KE5-008

SCREW-WASHER (3X22)

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90309-ZV5-821

NUT, HEX. (5MM)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90310-ZV5-821

NUT, HEX. (4MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90560-ZV5-821

WASHER, SPRING (4MM)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0
