BF90 DK2 LRTA (BBCJ) - Honda Marine Engine, Made in Japan (SN: BBCJ-1100001 - 1199999) WATER PUMP@VERTICAL SHAFT Parts Diagram

Marine Engine, Made in Japan

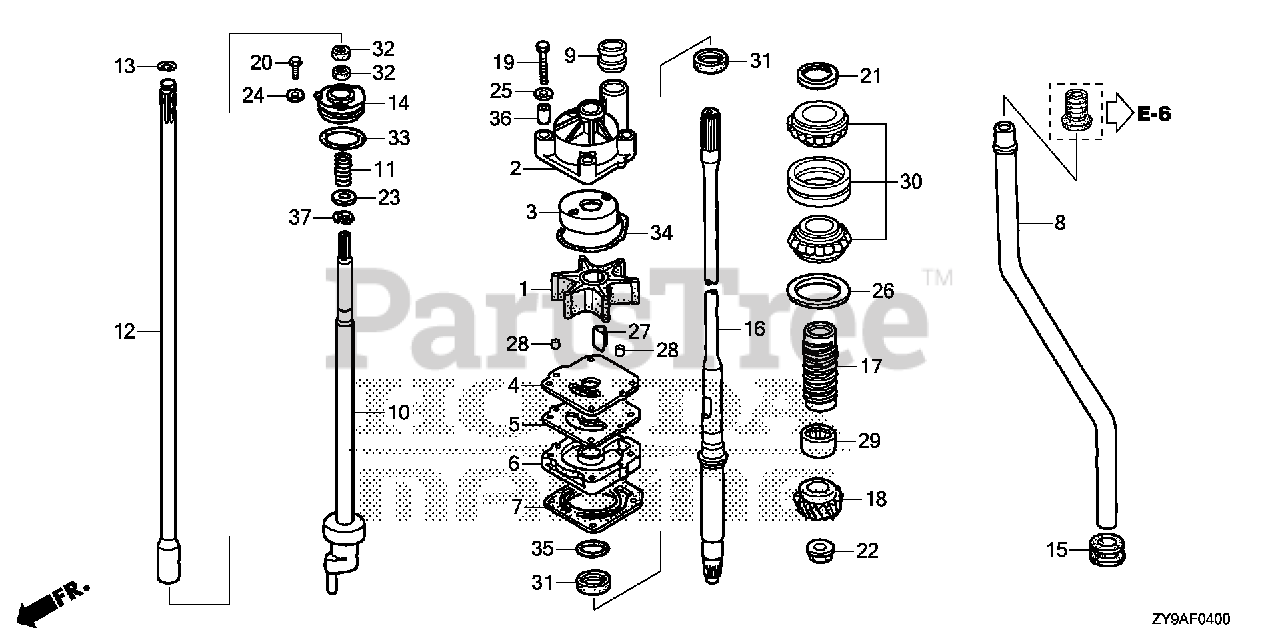

WATER PUMP@VERTICAL SHAFT Parts Diagram

  • Title

1

Honda 19210-ZW1-B04

SEE PART DETAILS - PRI; IMPELLER, PUMP

$55.99

$

Usually ships in 3-6 days

0

2

Honda 19221-ZY6-000

HOUSING, IMPELLER

$75.99

$

Usually ships in 3-6 days

0

3

Honda 19223-ZW1-B00

LINER, PUMP

$42.99

$

Usually ships in 3-6 days

0

4

Honda 19231-ZY6-000

COVER, IMPELLER

$20.99

$

Usually ships in 3-6 days

0

5

Honda 19234-ZW1-B00

GASKET B, IMPELLER

$13.99

$

Usually ships in 3-6 days

0

6

Honda 19241-ZZ0-000

HOUSING, WATER PUMP

$61.99

$

Usually ships in 3-6 days

0

7

Honda 19242-ZW1-B00

GASKET, WATER PUMP

$13.99

$

In Stock, only 1 left!

0

8

Honda 19251-ZY9-000

TUBE, WATER (L)

$56.99

$

Usually ships in 3-6 days

0

9

Honda 19253-ZW1-B01

SEE PART DETAILS - PRI; RING, WATER TUBE SEAL

$8.49

$

In Stock, only 1 left!

0

10

Honda 24310-ZZ0-000

ROD, SHIFT (L)

$209.99

$

Usually ships in 3-6 days

0

11

Honda 24318-ZY3-000

SPRING, SHIFT ROD

$3.99

$

Usually ships in 3-6 days

0

12

Honda 24320-ZW1-B00

ROD A, SHIFT (L)

$98.99

$

Usually ships in 3-6 days

0

13

Honda 24327-ZW1-000

RING, STOPPER

$2.49

$

Usually ships in 3-6 days

0

14

Honda 24343-ZW1-B02

SEE PART DETAILS - PRI; HOLDER, SHIFT ROD

$22.99

$

Usually ships in 3-6 days

0

15

Honda 40204-ZW1-000

GROMMET, EXTENSION CASE

$10.99

$

Usually ships in 3-6 days

0

16

Honda 41112-ZW1-B03

SEE PART DETAILS - PRI; SHAFT, VERTICAL (L)

$776.99

$

Usually ships in 3-6 days

0

17

Honda 41116-ZW1-B00

SLINGER, OIL

$19.99

$

Usually ships in 3-6 days

0

18

Honda 41131-ZW1-B01

GEAR, PINION (12T)

$123.99

$

Usually ships in 3-6 days

0

19

Honda 90010-ZV5-000

BOLT, HEX. (8X55)

$6.99

$

Usually ships in 3-6 days

0

20

Honda 90102-ZW9-000

BOLT, FLANGE (6X12) Use from Frame SN 1005249.

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90242-ZW1-000

NUT, LOCK (64MM)

$36.99

$

Usually ships in 3-6 days

0

22

Honda 90303-ZW1-B03

NUT, HEX. (16MM)

$26.99

$

Usually ships in 3-6 days

0

23

Honda 90472-723-000

WASHER, PLAIN (12MM)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 90511-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

In Stock, only 1 left!

0

25

Honda 90514-921-000

WASHER (8MM)

$1.49

$

In Stock, Qty 9

0

26

Honda 90518-ZW1-B00

SHIM A, GEAR (0.10)

$10.99

$

Usually ships in 3-6 days

0

26

Honda 90519-ZW1-B00

SHIM B, GEAR (0.15)

$10.99

$

Usually ships in 3-6 days

0

26

Honda 90520-ZW1-B00

SHIM C, GEAR (0.30)

$10.99

$

Usually ships in 3-6 days

0

26

Honda 90521-ZW1-B00

SHIM D, GEAR (0.50)

$10.99

$

Usually ships in 3-6 days

0

27

Honda 90752-ZW1-B02

KEY, WOODRUFF

$18.99

$

Usually ships in 3-6 days

0

28

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

29

Honda 91052-ZW1-B02

BEARING, NEEDLE (1-1/8X1-1/2X1-1/4)

$79.99

$

Usually ships in 3-6 days

0

30

Honda 91054-ZW1-B31

BEARING, TAPER ROLLER (30X62X40)

$106.99

$

Usually ships in 3-6 days

0

31

Honda 91251-ZW1-B04

SEE PART DETAILS - PRI; SEAL, WATER (23X36X6) Use up to Frame SN 1300340.

Note: Use up to Frame SN 1104584.

$11.99

$

In Stock, only 1 left!

0

31

Honda 91253-ZZ3-003

SEAL, WATER (23X36X6)

Note: Use from Frame SN 1104585.

$7.99

$

Usually ships in 3-6 days

0

32

Honda 91254-ZY3-003

SEAL, WATER (12X21X6)

$6.49

$

Usually ships in 3-6 days

0

33

Honda 91308-MJ0-003

O-RING (49.4X3.1)

$5.49

$

Usually ships in 3-6 days

0

34

Honda 91356-ZW1-B00

O-RING, WATER PUMP

$11.99

$

In Stock, only 1 left!

0

35

Honda 91359-MB0-000

O-RING (58.5X3.5)

$7.49

$

In Stock, only 1 left!

0

36

Honda 91552-ZY6-000

COLLAR, DISTANCE

$6.49

$

Usually ships in 3-6 days

0

37

Honda 94540-10019

E-RING (10MM)

$3.99

$

Usually ships in 3-6 days

0
