BF90 DK0 XRTA (BBCJ) - Honda Marine Engine, Made in Japan (SN: BBCJ-1000001 - BBCJ-9999999) STERN BRACKET + SWIVEL CASE Parts Diagram

Marine Engine, Made in Japan

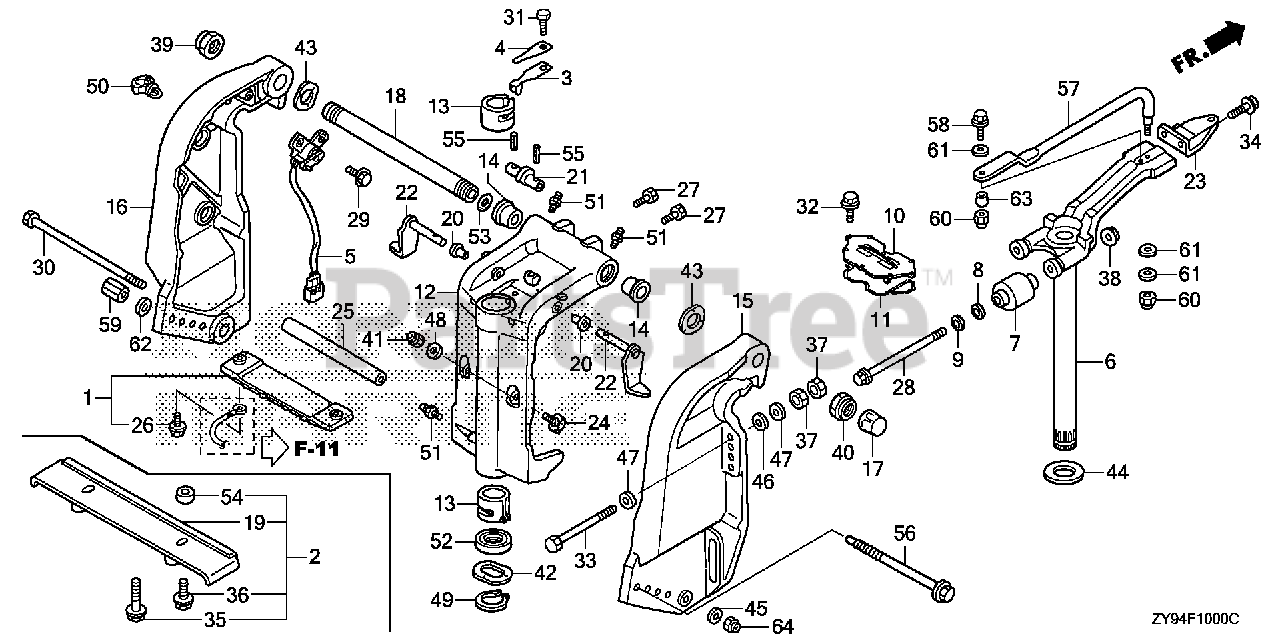

STERN BRACKET + SWIVEL CASE Parts Diagram

  • Title

1

Honda 06411-ZW1-020

METAL KIT, ANODE

$63.99

$

Usually ships in 3-6 days

0

2

Honda 06534-ZY9-000

PLATE KIT, SPLASH

Note: (Optional).

$1704.99

$

Usually ships in 3-6 days

0

3

Honda 24210-ZV1-010

SPRING, CLICK

$15.99

$

Usually ships in 3-6 days

0

4

Honda 24221-ZV4-010

SPRING, CLICK ASSIST

$10.99

$

Usually ships in 3-6 days

0

5

Honda 35660-ZY9-003

SENSOR ASSY., TRIM ANGLE

$244.99

$

Usually ships in 3-6 days

0

6

Honda 50100-ZY9-020

SEE PART DETAILS - PRI; FRAME, MOUNTING

$685.99

$

Usually ships in 3-6 days

0

7

Honda 50151-ZZ0-000

MOUNT, RUBBER (UPPER)

$123.99

$

Usually ships in 3-6 days

0

8

Honda 50153-ZY9-000

RUBBER, MOUNT STOPPER (UPPER)

$9.99

$

Usually ships in 3-6 days

0

9

Honda 50158-ZY9-000

STOPPER, MOUNT (UPPER)

$12.99

$

Usually ships in 3-6 days

0

10

Honda 50166-ZY9-000

SEE PART DETAILS - SUP; COVER, MOUNT (UPPER)
(Superseded to 50166-ZY9-010)

$100.99

$

Usually ships in 3-6 days

0

10

Honda 50166-ZY9-010

SEE PART DETAILS - PRI; COVER, MOUNT (UPPER)

$100.99

$

Usually ships in 3-6 days

0

11

Honda 50168-ZY9-000

SEAL, MOUNT COVER (UPPER)

$21.99

$

Usually ships in 3-6 days

0

12

Honda 50201-ZY9-000ZA

SEE PART DETAILS - SUP; CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 50201-ZY9-010ZA)

Note: Use up to Frame SN 1003472.

$926.99

$

Usually ships in 3-6 days

0

12

Honda 50201-ZY9-010ZA

SEE PART DETAILS - PRI; CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U)

$926.99

$

Usually ships in 3-6 days

0

13

Honda 50211-ZV5-003

LINER, SWIVEL CASE

$12.99

$

Usually ships in 3-6 days

0

14

Honda 50214-ZW1-000

BUSH, SWIVEL CASE

$14.99

$

Usually ships in 3-6 days

0

15

Honda 50301-ZY9-000ZA

BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$483.99

$

Usually ships in 3-6 days

0

16

Honda 50311-ZY9-000ZA

SEE PART DETAILS - SUP; BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 50311-ZY9-020ZA)

$619.99

$

Usually ships in 3-6 days

0

16

Honda 50311-ZY9-020ZA

SEE PART DETAILS - PRI; BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$619.99

$

Usually ships in 3-6 days

0

17

Honda 50331-ZV5-000

CAP, TILTING BOLT

$8.99

$

Usually ships in 3-6 days

0

18

Honda 50381-ZW1-010

SEE PART DETAILS - SUP; SHAFT, TILTING
(Superseded to 50381-ZY9-000)

$254.99

$

Usually ships in 3-6 days

0

18

Honda 50381-ZY9-000

SEE PART DETAILS - PRI; SHAFT, TILTING

$254.99

$

Usually ships in 3-6 days

0

19

Honda 50412-ZY9-000

PLATE, SPLASH

Note: (Optional).

$1630.99

$

Usually ships in 3-6 days

0

20

Honda 50522-ZV5-000

BUSH, TILT ARM

$8.49

$

In Stock, only 2 left!

0

21

Honda 50527-ZW1-000

BRACKET, TILTING

$

$

Not available

22

Honda 50529-ZW1-000

STOPPER, TILT

$

$

Not available

23

Honda 53234-ZW1-010

SEE PART DETAILS - PRI; PLATE, STEERING

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

24

Honda 56516-ZW1-000

RECEIVER, THRUST

$27.99

$

Usually ships in 3-6 days

0

25

Honda 56539-ZW1-000

SEE PART DETAILS - SUP; COLLAR, CYLINDER (LOWER)
(Superseded to 56539-ZZ0-C00)

$94.99

$

Usually ships in 3-6 days

0

25

Honda 56539-ZZ0-C00

SEE PART DETAILS - PRI; COLLAR, CYLINDER (LOWER)

$94.99

$

Usually ships in 3-6 days

0

26

Honda 90009-ZW9-000

BOLT, FLANGE (6X23)

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90102-ZW1-000

BOLT (1/4-28UNF)

$10.99

$

Usually ships in 3-6 days

0

28

Honda 90102-ZY9-000

BOLT, HEX. (12X186)

$27.99

$

Usually ships in 3-6 days

0

29

Honda 90105-ZW9-000

BOLT, FLANGE (6X20)

$4.49

$

Usually ships in 3-6 days

0

30

Honda 90108-ZW1-000

BOLT, HEX. (10X235)

$52.99

$

Usually ships in 3-6 days

0

31

Honda 90110-881-000

BOLT, HEX. (6X14)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 90119-ZY9-000

BOLT, FLANGE (8X25)

Note: Use up to Frame SN 1005755.

$2.49

$

Usually ships in 3-6 days

0

32

Honda 90151-ZW4-000

BOLT, FLANGE (8X25)
(Superseded to 90151-ZZ0-M01)

Note: Use from Frame SN 1005756.

$2.49

$

Usually ships in 3-6 days

0

33

Honda 90129-ZW1-010

BOLT, HEX. (12X119)

Note: Use up to Frame SN 1014208.

$27.99

$

Usually ships in 3-6 days

0

33

Honda 90129-ZZ3-000

BOLT, HEX. (12X119)

Note: Use from Frame SN 1014209.

$19.99

$

Usually ships in 3-6 days

0

34

Honda 90154-ZW9-000

BOLT, FLANGE (10X25)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

35

Honda 90214-HW1-671

BOLT, FLANGE (6X25) (SUS-D)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

36

Honda 90215-HW1-670

SEE PART DETAILS - SUP; BOLT, FLANGE (6X16) (SUS)
(Superseded to 90215-HW1-671)

Note: (Optional). Use up to Frame SN 1004112.

$1.99

$

Usually ships in 3-6 days

0

36

Honda 90215-HW1-671

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (SUS)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

37

Honda 90301-ZY9-000

NUT, HEX. (12MM)

Note: Use up to Frame SN 1004722.

$4.99

$

Usually ships in 3-6 days

0

37

Honda 94001-12490-0S

NUT, HEX. (12MM)

Note: Use from Frame SN 1004723.

$2.99

$

Usually ships in 3-6 days

0

38

Honda 90302-ZW5-003

NUT, FLANGE (12MM)

$9.49

$

Usually ships in 3-6 days

0

39

Honda 90304-ZV5-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF)

$26.99

$

Usually ships in 3-6 days

0

40

Honda 90304-ZW1-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (25X2.0)

$28.99

$

Usually ships in 3-6 days

0

41

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$5.49

$

In Stock, only 2 left!

0

42

Honda 90501-ZV5-000

WASHER, WAVE (40MM)

$10.99

$

Usually ships in 3-6 days

0

43

Honda 90502-ZV5-000

WASHER, WAVE (26MM)

$12.99

$

Usually ships in 3-6 days

0

44

Honda 90504-ZV5-000

WASHER, THRUST (34MM)

$10.99

$

Usually ships in 3-6 days

0

45

Honda 90545-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

46

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$6.99

$

Usually ships in 3-6 days

0

47

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$4.49

$

Usually ships in 3-6 days

0

48

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

49

Honda 90651-ZW4-000

CIRCLIP (OUTER) (39MM)

$7.99

$

Usually ships in 3-6 days

0

50

Honda 90681-763-A01

CLIP, WIRE HARNESS

$11.99

$

In Stock, only 1 left!

0

51

Honda 90951-ZV7-010

NIPPLE, GREASE

$2.99

$

Usually ships in 3-6 days

0

52

Honda 91256-ZV5-003

OIL SEAL (39.5X52X6) (ARAI)

$11.99

$

Usually ships in 3-6 days

0

53

Honda 91352-ZV5-000

O-RING (15.54X2.62)

$2.99

$

Usually ships in 3-6 days

0

54

Honda 91557-ZY9-000

COLLAR, SPLASH PLATE

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

55

Honda 94305-25203

PIN, SPRING (2.5X20)

$2.49

$

Usually ships in 3-6 days

0

56

Honda 50341-ZW5-010

ROD, ADJUSTING

Note: (Optional).

$75.99

$

Usually ships in 3-6 days

0

57

Honda 53238-ZW1-010

ROD, STEERING

$93.99

$

Usually ships in 3-6 days

0

58

Honda 90105-ZW1-000

BOLT (3/8-24UNF)

$11.99

$

Usually ships in 3-6 days

0

59

Honda 90304-ZW5-000

NUT, ADJUSTER ROD

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

60

Honda 90307-ZV5-003

NUT, SELF-LOCK (3/8-24UNF)

$9.99

$

Usually ships in 3-6 days

0

61

Honda 90514-ZV4-000

WASHER (10MM)

$2.49

$

In Stock, only 2 left!

0

62

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

63

Honda 91560-ZV5-000

COLLAR, STEERING ROD

$4.99

$

Usually ships in 3-6 days

0

64

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$5.49

$

In Stock, only 2 left!

0
