BF90 AX XRTA (BBBU) - Honda Marine Engine, Made in Japan (SN: BBBU-4000001 - BBBU-9999999) SWIVEL CASE + STERN BRACKET Parts Diagram

Marine Engine, Made in Japan

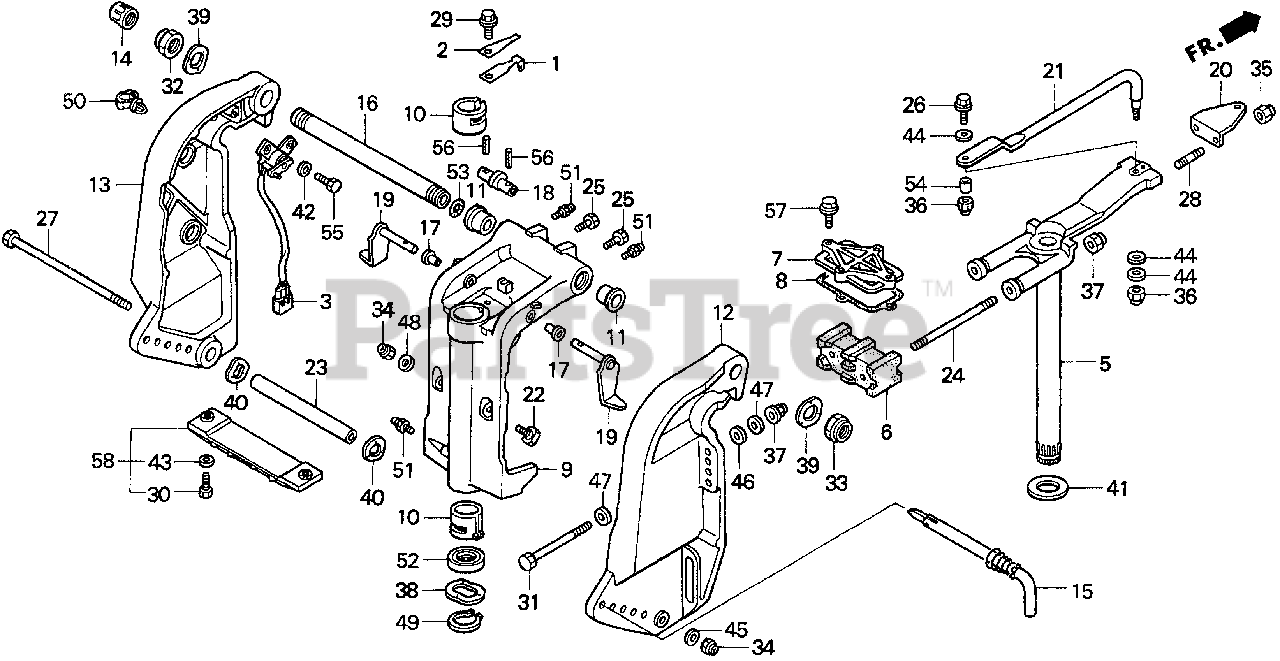

SWIVEL CASE + STERN BRACKET Parts Diagram

  • Title

1

Honda 24210-ZV1-010

SPRING, CLICK

$13.99

$

Usually ships in 3-6 days

0

2

Honda 24221-ZV4-010

SEE PART DETAILS - PRI; SPRING, CLICK ASSIST

$9.99

$

Usually ships in 3-6 days

0

3

Honda 35660-ZW1-003

SEE PART DETAILS - SUP; SENSOR ASSY., TRIM ANGLE
(Superseded to 35660-ZW1-013)

$

$

Not available

3

Honda 35660-ZW1-013

SEE PART DETAILS - PRI; SENSOR ASSY., TRIM ANGLE

$

$

Not available

5

Honda 50100-ZW1-030ZA

FRAME, MOUNTING *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

6

Honda 50151-ZW1-000

MOUNT, RUBBER (UPPER)

$

$

Not available

7

Honda 50167-ZW1-000

HOLDER, MOUNTING (UPPER)

$

$

Not available

8

Honda 50168-ZW1-000

GASKET, MOUNTING HOLDER (UPPER)

$10.99

$

Usually ships in 3-6 days

0

9

Honda 50201-ZW1-020ZA

SEE PART DETAILS - SUP; CASE, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 50201-ZW1-040ZA)

$859.99

$

Usually ships in 3-6 days

0

10

Honda 50211-ZV5-003

LINER, SWIVEL CASE

$11.99

$

Usually ships in 3-6 days

0

11

Honda 50214-ZW1-000

BUSH, SWIVEL CASE

$13.99

$

Usually ships in 3-6 days

0

12

Honda 50301-ZW1-040ZA

SEE PART DETAILS - SUP; BRACKET, R. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable

13

Honda 50311-ZW1-040ZA

SEE PART DETAILS - SUP; BRACKET, L. STERN *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable

14

Honda 50331-ZV5-000

CAP, TILTING BOLT

$7.99

$

Usually ships in 3-6 days

0

15

Honda 50340-ZW1-010

SEE PART DETAILS - SUP; ROD, ADJUSTING
(Superseded to 06503-ZW5-000)

$43.99

$

Usually ships in 3-6 days

0

16

Honda 50381-ZW1-000

SEE PART DETAILS - SUP; SHAFT, TILTING
(Superseded to 50381-ZY9-000)

$227.99

$

Usually ships in 3-6 days

0

16

Honda 50381-ZW1-010

SEE PART DETAILS - SUP; SHAFT, TILTING
(Superseded to 50381-ZY9-000)

$227.99

$

Usually ships in 3-6 days

0

17

Honda 50522-ZV5-000

BUSH, TILT ARM

$7.99

$

In Stock, only 2 left!

0

18

Honda 50527-ZW1-000

BRACKET, TILTING

$

$

Not available

19

Honda 50529-ZW1-000

STOPPER, TILT

$

$

Not available

20

Honda 53234-ZW1-000

SEE PART DETAILS - SUP; PLATE, STEERING
(Superseded to 53234-ZW1-010)

$21.99

$

Usually ships in 3-6 days

0

20

Honda 53234-ZW1-010

SEE PART DETAILS - PRI; PLATE, STEERING

$21.99

$

Usually ships in 3-6 days

0

21

Honda 53238-ZW1-010

SEE PART DETAILS - PRI; ROD, STEERING

$85.99

$

Usually ships in 3-6 days

0

22

Honda 56516-ZW1-000

RECEIVER, THRUST

$25.99

$

Usually ships in 3-6 days

0

23

Honda 56539-ZW1-000

COLLAR, CYLINDER (LOWER)
(Superseded to 56539-ZZ0-C00)

$84.99

$

Usually ships in 3-6 days

0

24

Honda 90101-ZW1-000

SEE PART DETAILS - SUP; BOLT, STUD (12X150)
(Superseded to 90101-ZW5-000)

$48.99

$

Usually ships in 3-6 days

0

25

Honda 90102-ZW1-000

BOLT (1/4-28UNF)

$9.49

$

Usually ships in 3-6 days

0

26

Honda 90105-ZW1-000

BOLT (3/8-24UNF)

$10.99

$

Usually ships in 3-6 days

0

27

Honda 90108-ZW1-000

BOLT, HEX. (10X235)

$47.99

$

Usually ships in 3-6 days

0

28

Honda 90109-ZV5-000

BOLT, STUD (10X28)

$8.49

$

In Stock, only 2 left!

0

29

Honda 90110-881-000

BOLT, HEX. (6X14)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90113-ZV5-000

BOLT, HEX. (6X25)

$3.49

$

Usually ships in 3-6 days

0

31

Honda 90129-ZW1-010

SEE PART DETAILS - PRI; BOLT, HEX. (12X119)

$24.99

$

Usually ships in 3-6 days

0

32

Honda 90304-ZV5-003

SEE PART DETAILS - SUP; NUT, SELF-LOCK (7/8-14UNF)
(Superseded to 90304-ZV5-013)

$23.99

$

Usually ships in 3-6 days

0

32

Honda 90304-ZV5-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (7/8-14UNF)

$23.99

$

Usually ships in 3-6 days

0

33

Honda 90304-ZW1-003

SEE PART DETAILS - SUP; NUT, SELF-LOCK (M25X2.0)
(Superseded to 90304-ZW1-013)

$25.99

$

Usually ships in 3-6 days

0

33

Honda 90304-ZW1-013

SEE PART DETAILS - PRI; NUT, SELF-LOCK (M25X2.0)

$25.99

$

Usually ships in 3-6 days

0

34

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$4.99

$

In Stock, only 2 left!

0

35

Honda 90306-ZV5-003

NUT, SELF-LOCK (10MM)

$4.99

$

In Stock, only 2 left!

0

36

Honda 90307-ZV5-003

NUT, SELF-LOCK (3/8-24UNF)

$8.99

$

Usually ships in 3-6 days

0

37

Honda 90308-ZW1-003

NUT, SELF-LOCK (12MM)

$13.99

$

Usually ships in 3-6 days

0

38

Honda 90501-ZV5-000

WASHER, WAVE (40MM)

$9.99

$

Usually ships in 3-6 days

0

39

Honda 90502-ZV5-000

WASHER, WAVE (26MM)

$11.99

$

Usually ships in 3-6 days

0

40

Honda 90502-ZW1-000

WASHER, WAVE (32MM)

$

$

Not available

41

Honda 90504-ZV5-000

WASHER, THRUST (34MM)

$9.99

$

Usually ships in 3-6 days

0

42

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

43

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

44

Honda 90514-ZV4-000

WASHER (10MM)

$2.49

$

In Stock, only 2 left!

0

45

Honda 90545-ZV5-000

WASHER, PLAIN (10MM)

$3.99

$

Usually ships in 3-6 days

0

46

Honda 90552-ZV5-000

WASHER, PLAIN (12MM)

$6.49

$

Usually ships in 3-6 days

0

47

Honda 90559-ZV5-000

WASHER, PLAIN (12MM)

$3.99

$

Usually ships in 3-6 days

0

48

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

49

Honda 90651-ZV5-000

CIRCLIP (OUTER) (39MM)

$10.99

$

Usually ships in 3-6 days

0

50

Honda 90681-763-A01

CLIP, WIRE HARNESS

$10.99

$

Usually ships in 3-6 days

0

51

Honda 90951-ZV7-000

SEE PART DETAILS - SUP; NIPPLE, GREASE
(Superseded to 90951-ZV7-010)

$2.99

$

Usually ships in 3-6 days

0

52

Honda 91256-ZV5-003

SEE PART DETAILS - PRI; OIL SEAL (39.5X52X6)

$10.99

$

Usually ships in 3-6 days

0

53

Honda 91352-ZV5-000

O-RING (15.54X2.26)

$2.49

$

Usually ships in 3-6 days

0

54

Honda 91560-ZV5-000

COLLAR, STEERING ROD

$4.49

$

Usually ships in 3-6 days

0

55

Honda 92101-06020-4J

SEE PART DETAILS - PRI; BOLT, HEX. (6X20)

$1.99

$

Usually ships in 3-6 days

0

56

Honda 94305-25203

PIN, SPRING (2.5X20)

$1.99

$

Usually ships in 3-6 days

0

57

Honda 95701-08030-02

BOLT, FLANGE (8X30)

$2.49

$

Usually ships in 3-6 days

0

58

Honda 06411-ZW1-000

SEE PART DETAILS - SUP; METAL KIT, ANODE
(Superseded to 06411-ZW1-020)

$58.99

$

Usually ships in 3-6 days

0

58

Honda 06411-ZW1-010

SEE PART DETAILS - SUP; METAL KIT, ANODE

$

$

Currently unavailable
