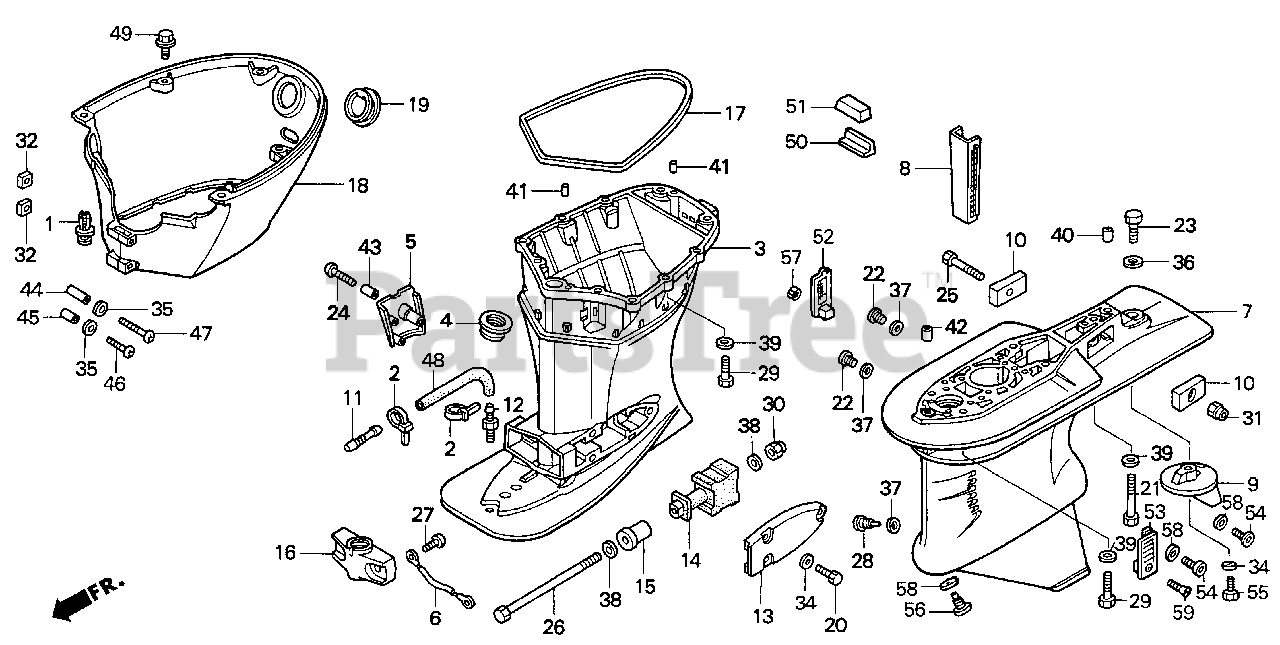

BF90 AX XRTA (BBBU) - Honda Marine Engine, Made in Japan (SN: BBBU-4000001 - BBBU-9999999) EXTENSION CASE + GEAR CASE Parts Diagram

Marine Engine, Made in Japan

EXTENSION CASE + GEAR CASE Parts Diagram

  • Title

1

Honda 17738-SP0-003

CLIP, FUEL PIPE (BLACK)

$11.99

$

Usually ships in 3-6 days

0

2

Honda 32161-KM3-003

BAND, WIRE

$3.99

$

Usually ships in 3-6 days

0

3

Honda 40201-ZW1-010ZA

SEE PART DETAILS - SUP; CASE, EXTENSION *NH282MU* (L) (OYSTER SILVER METALLIC-U)
(Superseded to 40201-ZW1-020ZA)

$1313.99

$

Usually ships in 3-6 days

0

3

Honda 40201-ZW1-020ZA

SEE PART DETAILS - PRI; CASE, EXTENSION *NH282MU* (L) (OYSTER SILVER METALLIC-U)

$1313.99

$

Usually ships in 3-6 days

0

4

Honda 40209-ZW1-000

RUBBER, DRAIN PLUG

$21.99

$

Usually ships in 3-6 days

0

5

Honda 40212-ZW1-000ZA

SEE PART DETAILS - SUP; COVER, DRAIN PLUG *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 40212-ZW1-010ZA)

$29.99

$

Usually ships in 3-6 days

0

6

Honda 40219-ZV5-003

SEE PART DETAILS - SUP; WIRE, LEAD
(Superseded to 40219-ZY3-023)

$12.99

$

Usually ships in 3-6 days

0

6

Honda 40219-ZY3-003

SEE PART DETAILS - SUP; WIRE, LEAD

$

$

Currently unavailable

6

Honda 40219-ZY3-013

SEE PART DETAILS - PRI; WIRE, LEAD (1.5X116MM)
(Superseded to 40219-ZY3-023)

$12.99

$

Usually ships in 3-6 days

0

7

Honda 41101-ZW1-B01ZA

SEE PART DETAILS - SUP; CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

Note: Use up to Frame SN 4000655.

$

$

Not available

7

Honda 41101-ZW1-B02ZA

SEE PART DETAILS - PRI; CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable

9

Honda 41107-ZW1-B01ZA

SEE PART DETAILS - PRI; TAB, TRIM *NH282MU* (OYSTER SILVER METALLIC-U)

$60.99

$

Usually ships in 3-6 days

0

10

Honda 41109-ZW1-B00

METAL, ANODE

$25.99

$

Usually ships in 3-6 days

0

11

Honda 41171-ZV5-000

END, NIPPLE

$8.99

$

Usually ships in 3-6 days

0

12

Honda 41172-ZV5-000

NIPPLE, SENSOR

$10.99

$

Usually ships in 3-6 days

0

13

Honda 50111-ZW1-010ZA

HOUSING, MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$79.99

$

Usually ships in 3-6 days

0

14

Honda 50155-ZW1-000

RUBBER, MOUNT (LOWER)

$

$

Not available

15

Honda 50156-ZW1-000

SEE PART DETAILS - SUP; COLLAR, MOUNTING (LOWER)
(Superseded to 50156-ZW1-010)

$24.99

$

Usually ships in 3-6 days

0

15

Honda 50156-ZW1-010

SEE PART DETAILS - PRI; COLLAR, MOUNTING (LOWER)

$24.99

$

Usually ships in 3-6 days

0

16

Honda 50161-ZW1-010ZA

SEE PART DETAILS - SUP; HOUSING, CENTER MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)
(Superseded to 50161-ZW1-020ZA)

$173.99

$

Usually ships in 3-6 days

0

16

Honda 50161-ZW1-020ZA

SEE PART DETAILS - PRI; HOUSING, CENTER MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$173.99

$

Usually ships in 3-6 days

0

17

Honda 63702-ZW1-000

SEE PART DETAILS - SUP; RUBBER, COVER (LOWER)

$13.99

$

Usually ships in 3-6 days

0

18

Honda 63710-ZW1-000ZA

SEE PART DETAILS - SUP; COVER (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Currently unavailable

19

Honda 63719-ZW1-000

GROMMET, COVER (LOWER)

$18.99

$

Usually ships in 3-6 days

0

20

Honda 90102-ZV4-000

SEE PART DETAILS - PRI; BOLT, HEX. (8X30)

$

$

Not available

24

Honda 90110-ZV5-000

SCREW, SPECIAL (6X35)

$4.99

$

In Stock, only 1 left!

0

25

Honda 90111-881-000

BOLT, HEX. (6X32)

$4.49

$

Usually ships in 3-6 days

0

26

Honda 90118-ZW1-000

SEE PART DETAILS - SUP; BOLT, HEX. (12X225)
(Superseded to 90118-ZY6-000)

$54.99

$

Usually ships in 3-6 days

0

27

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 90123-ZV5-010

SEE PART DETAILS - PRI; BOLT, HEX. (10X40)

$9.49

$

Usually ships in 3-6 days

0

30

Honda 90308-ZW1-003

NUT, SELF-LOCK (12MM)

$14.99

$

Usually ships in 3-6 days

0

31

Honda 90205-PP9-020

NUT, SELF-LOCK (6MM)

$12.99

$

Usually ships in 3-6 days

0

32

Honda 90311-ZV5-000

NUT, PLATE (5MM)

$10.99

$

Usually ships in 3-6 days

0

34

Honda 90401-ZW1-000

WASHER, PLAIN (8MM)

$3.49

$

Usually ships in 3-6 days

0

35

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

38

Honda 90559-ZW1-000

WASHER, PLAIN (12MM)

$7.99

$

Usually ships in 3-6 days

0

39

Honda 90563-ZV5-000

WASHER, PLAIN (10MM)

$3.49

$

Usually ships in 3-6 days

0

41

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

43

Honda 91563-ZV5-000

COLLAR, DISTANCE (6X10.5X25)

$8.99

$

Usually ships in 3-6 days

0

44

Honda 91568-ZV5-000

COLLAR, DISTANCE (5X7X38)

$5.49

$

Usually ships in 3-6 days

0

45

Honda 91569-ZV5-000

COLLAR, DISTANCE (5X7X23)

$6.99

$

Usually ships in 3-6 days

0

46

Honda 93500-05030-4J

SCREW, PAN (5X30)

$2.49

$

Usually ships in 3-6 days

0

47

Honda 93500-05045-4J

SCREW, PAN (5X45)

$3.99

$

Usually ships in 3-6 days

0

48

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X200)

$31.99

$

Usually ships in 3-6 days

0

49

Honda 95701-06012-02

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

50

Honda 19286-ZW1-B00

PLATE, RUBBER SETTING

$8.99

$

Usually ships in 3-6 days

0

51

Honda 41102-ZW1-B00

GROMMET, GEAR CASE

$8.99

$

Usually ships in 3-6 days

0

52

Honda 41104-ZV5-000

SCREEN, R. WATER

$10.99

$

Usually ships in 3-6 days

0

53

Honda 41105-ZV5-000

SCREEN, L. WATER

$10.99

$

Usually ships in 3-6 days

0

54

Honda 90105-ZV4-650

BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

55

Honda 90115-ZV5-000

BOLT, HEX. (8X25)

$5.49

$

Usually ships in 3-6 days

0

56

Honda 90120-ZV5-003

BOLT, DRAIN PLUG (8MM)

$8.49

$

Usually ships in 3-6 days

0

57

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

58

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

59

Honda 93700-05045-4J

SCREW, OVAL (5X45)

$2.99

$

Usually ships in 3-6 days

0
