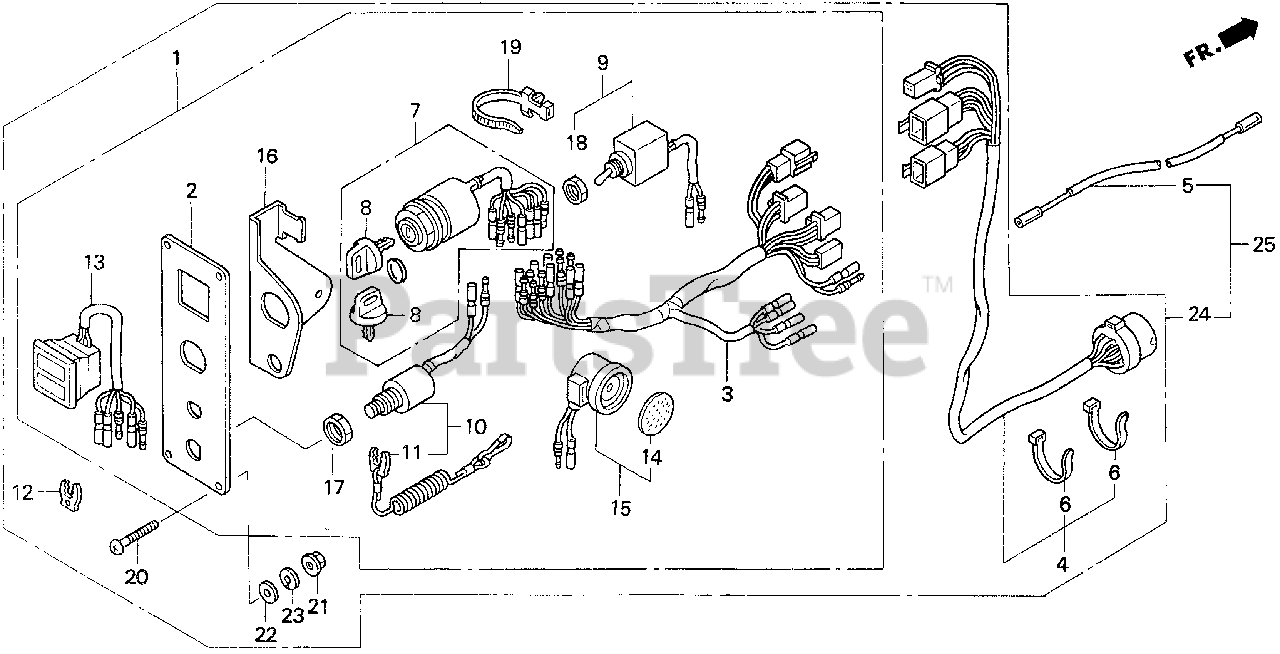

BF90 AX XRTA (BBBU) - Honda Marine Engine, Made in Japan (SN: BBBU-4000001 - BBBU-9999999) CONTROL PANEL Parts Diagram

Marine Engine, Made in Japan

CONTROL PANEL Parts Diagram

  • Title

1

Honda 32340-ZW1-V01

SEE PART DETAILS - SUP; PANEL ASSY., CONTROL

Note: Use up to Frame SN 4000383.

$

$

Not available

1

Honda 32340-ZW1-V02

SEE PART DETAILS - SUP; PANEL ASSY., CONTROL
(Superseded to 32340-ZW1-506)

$

$

Not available

1

Honda 32340-ZW1-V03

SEE PART DETAILS - SUP; PANEL ASSY., CONTROL

$

$

Currently unavailable

2

Honda 32346-ZW1-V03

SEE PART DETAILS - SUP; PANEL, CONTROL

$

$

Currently unavailable

3

Honda 32545-ZW1-V03

SEE PART DETAILS - PRI; HARNESS ASSY., SWITCH PANEL

$146.99

$

Usually ships in 3-6 days

0

4

Honda 32580-ZW1-V01

SEE PART DETAILS - PRI; CABLE (14WIRE) (16.5')

$

$

Not available

5

Honda 32600-ZW1-900

WIRE ASSY., GROUND

$44.99

$

Usually ships in 3-6 days

0

6

Honda 32901-952-770

TIE, CABLE

$3.49

$

Usually ships in 3-6 days

0

7

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION

$192.99

$

Usually ships in 3-6 days

0

8

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH

$11.99

$

Usually ships in 3-6 days

0

9

Honda 35630-ZW1-V01

SWITCH ASSY., SOLENOID

$67.99

$

Usually ships in 3-6 days

0

10

Honda 36180-ZV5-013

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP
(Superseded to 36180-ZV5-033)

$80.99

$

Usually ships in 3-6 days

0

11

Honda 36182-ZV4-650

SEE PART DETAILS - SUP; WIRE, EMERGENCY
(Superseded to 36182-ZV4-651)

$25.99

$

Usually ships in 3-6 days

0

12

Honda 36187-ZV4-651

SEE PART DETAILS - SUP; CLIP, EMERGENCY LOCK
(Superseded to 36187-ZV4-652)

$5.99

$

Usually ships in 3-6 days

0

13

Honda 37210-ZW1-701

SEE PART DETAILS - SUP; LAMP ASSY., INDICATOR
(Superseded to 37210-ZW1-702)

$173.99

$

Usually ships in 3-6 days

0

13

Honda 37210-ZW1-702

SEE PART DETAILS - PRI; LAMP ASSY., INDICATOR

$173.99

$

Usually ships in 3-6 days

0

14

Honda 38403-341-672

PLATE, TURN SIGNAL BUZZER

$6.99

$

Usually ships in 3-6 days

0

15

Honda 38410-ZV5-003

BUZZER, WARNING

$79.99

$

Usually ships in 3-6 days

0

16

Honda 38414-ZW1-V02

BRACKET, BUZZER

$45.99

$

Usually ships in 3-6 days

0

17

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

18

Honda 90305-ZW1-V01

NUT, HEX. (12MM)

$5.99

$

Usually ships in 3-6 days

0

19

Honda 90649-SC2-003

BAND, WIRE HARNESS (WHITE)

$9.49

$

Usually ships in 3-6 days

0

20

Honda 93500-05040-1B

SCREW, PAN (5X40)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94050-05020

NUT, FLANGE (5MM)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 94103-05200

WASHER, PLAIN (5MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94111-05400

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 06323-ZW1-V01

SEE PART DETAILS - SUP; PANEL KIT, SWITCH (SINGLE)

$

$

Currently unavailable

25

Honda 06323-ZW1-V11

SEE PART DETAILS - SUP; PANEL KIT, SWITCH (DUAL)

$

$

Currently unavailable

25

Honda 06323-ZW1-V13

SEE PART DETAILS - PRI; PANEL KIT, SWITCH (DUAL)

$

$

Not available
