BF90 A2 LHTA (BBBL) - Honda Marine Engine, Made in Japan (SN: BBBL-4410001 - BBBL-4499999) REGULATOR@STARTER CABLE Parts Diagram

Marine Engine, Made in Japan

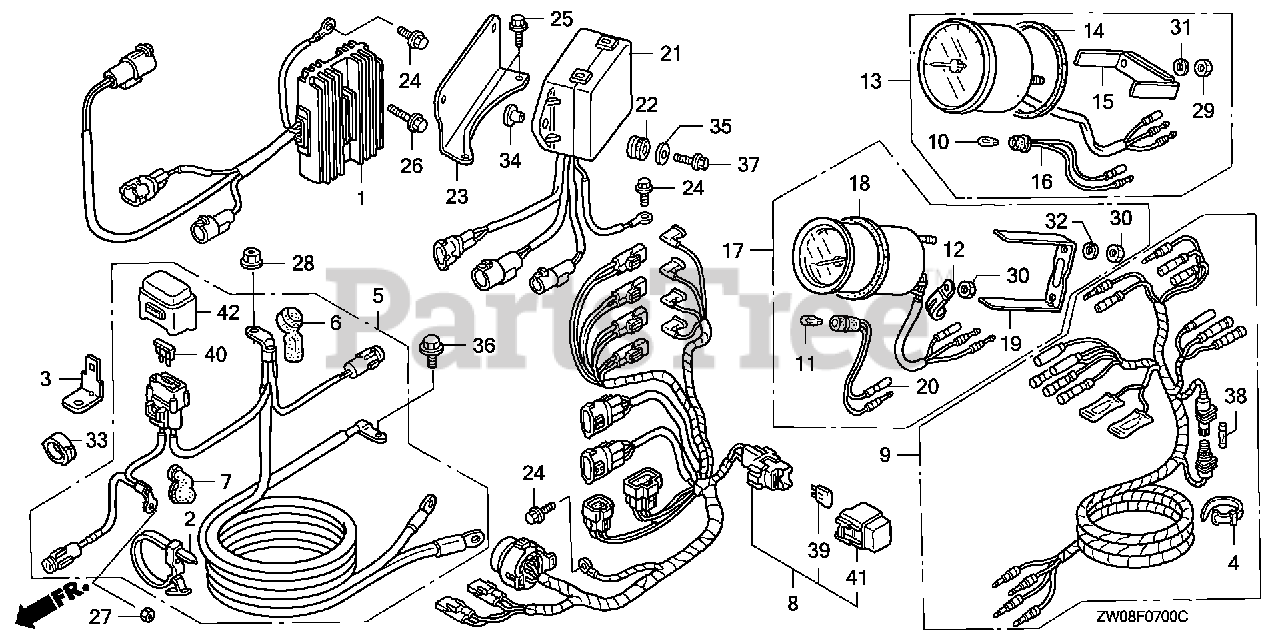

REGULATOR@STARTER CABLE Parts Diagram

  • Title

1

Honda 31750-ZW1-003

RECTIFIER ASSY., REGULATOR (20A)

$272.99

$

Usually ships in 3-6 days

0

2

Honda 32121-HA0-003

BAND, WIRE

$10.99

$

Usually ships in 3-6 days

0

3

Honda 32126-ZW1-010

SEE PART DETAILS - PRI; BRACKET, FUSE

$

$

Not available

4

Honda 32161-404-000

SEE PART DETAILS - PRI; BAND B1, CABLE Use up to Frame SN 1001879.

$2.99

$

In Stock, only 4 left!

0

5

Honda 32410-ZW1-000

CABLE ASSY., STARTER

$

$

Not available

6

Honda 32411-ZW1-003

COVER, STARTER TERMINAL

$14.99

$

Usually ships in 3-6 days

0

7

Honda 32412-ZV4-811

COVER, MAGNETIC SWITCH TERMINAL

$7.99

$

Usually ships in 3-6 days

0

8

Honda 32520-ZW1-740

CABLE ASSY., REMOTE CONTROL (A)

$

$

Not available

9

Honda 32540-ZV5-910

HARNESS ASSY., METER (A)

Note: Use up to Frame SN 4412685.

$60.99

$

Usually ships in 3-6 days

0

9

Honda 32540-ZV5-911

HARNESS ASSY., METER (A)

$60.99

$

Usually ships in 3-6 days

0

10

Honda 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

13

Honda 37250-ZV7-913

SEE PART DETAILS - PRI; TACHOMETER ASSY.

Note: (Optional).

$351.99

$

Usually ships in 3-6 days

0

14

Honda 37253-ZV5-821

GASKET

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

15

Honda 37256-ZV5-821

BRACKET (TO 1015209) (FROM 1015210)

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

16

Honda 37258-ZV5-821

SOCKET (TO 1015209) (FROM 1015210)

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

21

Honda 38550-ZW1-003

RELAY ASSY., POWER TILT

$

$

Not available

22

Honda 38551-ZW1-000

GROMMET, RELAY

$8.99

$

Usually ships in 3-6 days

0

23

Honda 38552-ZW1-000

SEE PART DETAILS - SUP; BRACKET, RELAY
(Superseded to 38552-ZW1-010)

$

$

Not available

23

Honda 38552-ZW1-010

SEE PART DETAILS - PRI; BRACKET, RELAY

$

$

Not available

24

Honda 90013-ZW4-000

BOLT, FLANGE (6X12) (CT200)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

26

Honda 90012-ZW9-000

BOLT, FLANGE (6X22) (CT200)

$

$

Not available

27

Honda 90203-ZV5-000

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 90203-ZW1-000

NUT-WASHER (8MM)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 90309-ZV5-821

NUT, HEX. (5MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

31

Honda 90550-ZV5-821

WASHER, SPRING (5MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

33

Honda 90683-KJ2-003

CLIP, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

34

Honda 91553-ZV5-000

SEE PART DETAILS - SUP; COLLAR, MODULE IGNITION CONTROL CASE (CDI)
(Superseded to 91553-ZV5-010)

$3.99

$

Usually ships in 3-6 days

0

34

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

35

Honda 94101-06200

WASHER, PLAIN (6MM)

$0.99

$

Usually ships in 3-6 days

0

36

Honda 90014-ZW4-000

BOLT, FLANGE (6X14)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 90016-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

37

Honda 90019-ZW5-000

BOLT, FLANGE (6X25)
(Superseded to 90016-ZW9-000)

$

$

Not available

38

Honda 98200-11000

SEE PART DETAILS - PRI; FUSE A (10A)

$1.49

$

In Stock, only 1 left!

0

39

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0

40

Honda 98200-33000

FUSE, BLADE (30A)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 38216-ZV5-003

COVER ASSY., FUSE (15A)

$5.49

$

Usually ships in 3-6 days

0

42

Honda 38216-ZW1-003

COVER ASSY., FUSE (30A)

$7.99

$

Usually ships in 3-6 days

0
