BF9.9 D3 SA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1200001 - BABJ-1299999) CHARGE COIL KIT Parts Diagram

Outboard Engine, Made in Japan

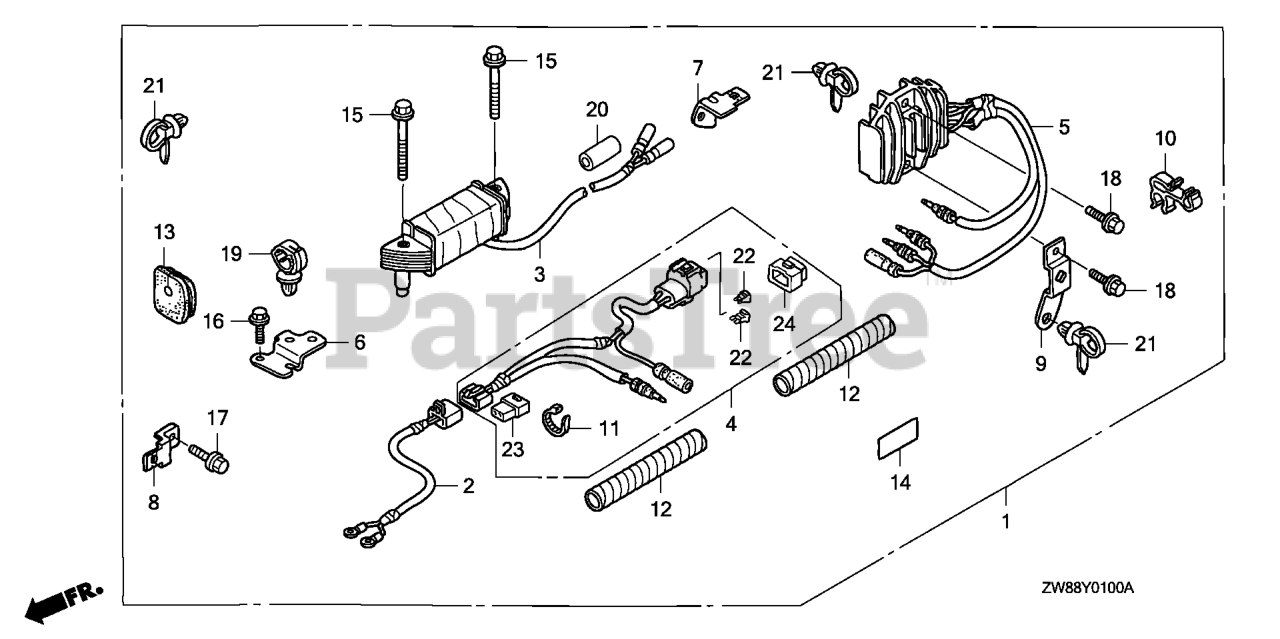

CHARGE COIL KIT Parts Diagram

  • Title

1

Honda 06316-ZW9-000

COIL KIT, CHARGE (6A)

Note: (Optional)

$455.99

$

Usually ships in 3-6 days

0

2

Honda 31575-ZW9-000

WIRE ASSY., BATTERY CHARGE

Note: (Optional)

$77.99

$

Usually ships in 3-6 days

0

3

Honda 31630-ZW9-902

SEE PART DETAILS - PRI; COIL ASSY., CHARGE (6A)

Note: (Optional)

$79.99

$

Usually ships in 3-6 days

0

4

Honda 31650-ZW9-000

RECEPTACLE ASSY., CHARGE

Note: (Optional)

$48.99

$

Usually ships in 3-6 days

0

5

Honda 31750-ZW9-013

SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR

Note: (Optional)

$130.99

$

Usually ships in 3-6 days

0

6

Honda 32112-ZW9-000

BRACKET, STARTER CABLE

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

7

Honda 32115-ZW9-000

BRACKET, FUSE CASE
(Superseded to 32115-ZW9-010)

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

7

Honda 32115-ZW9-010

BRACKET, FUSE CASE

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

8

Honda 32117-ZW9-000

BRACKET, CONNECTOR (D)

Note: (Optional)

$9.99

$

Usually ships in 3-6 days

0

9

Honda 32118-ZW9-730

BRACKET, E-CLIP
(Superseded to 32118-ZW9-731)

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

10

Honda 32765-PD6-000

CLAMP, DISTRIBUTOR WIRE

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 32901-952-770

TIE, CABLE (NATURAL 2.4X92) Use up to Frame SN 1300359.

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 36104-ZW9-003

TUBE, SPIRAL A

Note: (Optional)

$9.99

$

Usually ships in 3-6 days

0

13

Honda 40106-ZW9-630

GROMMET B, OIL CASE

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

14

Honda 87512-ZV4-A21

SEE PART DETAILS - PRI; MARK, RECEPTACLE (6A)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90006-ZW9-000

BOLT, FLANGE (6X52) (CT200)
(Superseded to 90006-ZW9-030)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

Note: (Optional)

$2.49

$

In Stock, only 1 left!

0

17

Honda 90102-ZW9-000

BOLT, FLANGE (6X12) Use from Frame SN 1005249.

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90114-ZW9-020

BOLT, FLANGE (6X26) (CT200)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90691-ZB7-003

SEE PART DETAILS - PRI; CLIP, HARNESS

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 91404-ZW9-000

TUBE, RUBBER (11.5X14.5)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 91540-S30-003

CLIP, HARNESS BAND (151.5MM) (NATURAL)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 98200-32000

FUSE, BLADE (20A)

Note: (Optional)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 32521-ZW9-000

CONNECTOR, DUMMY

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

24

Honda 38218-ZW9-003

COVER ASSY., FUSE (20A)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0
