BF9.9 D2 SRA (BABJ) - Honda Outboard Engine, Made in Japan (SN: BABJ-1100001 - BABJ-9999999) IGNITION COIL Parts Diagram

Outboard Engine, Made in Japan

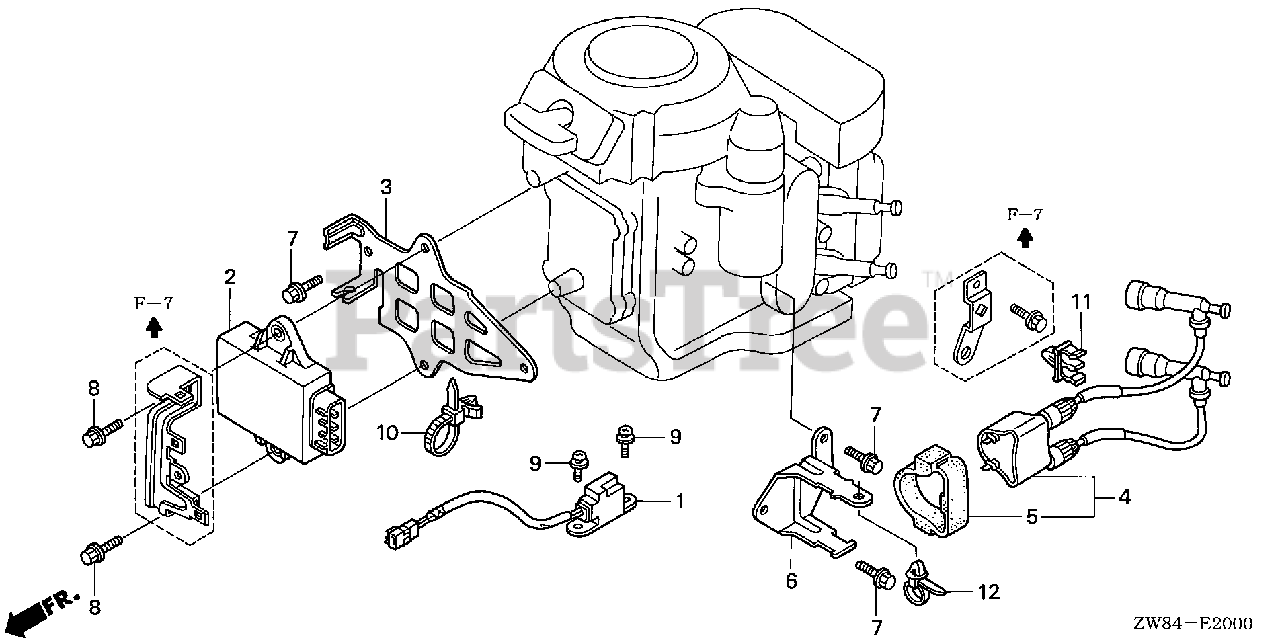

IGNITION COIL Parts Diagram

  • Title

1

Honda 30310-ZW9-003

COIL ASSY., PULSER

$78.99

$

Usually ships in 3-6 days

0

2

Honda 30400-ZW9-003

MODULE, IGNITION CONTROL (CDI)

$300.99

$

Usually ships in 3-6 days

0

3

Honda 30401-ZW9-000

PLATE, C.D.I.

$

$

Not available

4

Honda 30500-ZW9-003

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

$

$

Not available

5

Honda 30506-ML4-003

SUSPENSION, IGNITION COIL

$7.99

$

In Stock, only 1 left!

0

6

Honda 30515-ZW9-000

SEE PART DETAILS - SUP; BRACKET, IGNITION COIL
(Superseded to 04302-ZW9-000)

Note: Use up to Engine SN 1017384.

$

$

Not available

6

Honda 30515-ZW9-010

SEE PART DETAILS - SUP; BRACKET, IGNITION COIL

Note: Use up to Engine SN 1017384.

$

$

Currently unavailable

6

Honda 30515-ZW9-650

SEE PART DETAILS - SUP; BRACKET, IGNITION COIL

Note: Use from Engine SN 1017385.

$

$

Not available

7

Honda 90011-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

8

Honda 90016-ZW9-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)
(Superseded to 90014-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90018-ZW9-000

SCREW-WASHER (5X16)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (BLACK)

$9.99

$

In Stock, only 1 left!

0

11

Honda 90684-SB3-003

CLIP, FUEL TUBE

$8.49

$

Usually ships in 3-6 days

0

12

Honda 91540-S30-003

CLIP, HARNESS BAND (151.5MM) (NATURAL)

$4.49

$

Usually ships in 3-6 days

0
