BF9.9 AY SAS (BABS) - Honda Outboard Engine, Made in Japan (SN: BABS-1600001 - BABS-1699999) REMOTE CONTROL BOX Parts Diagram

Outboard Engine, Made in Japan

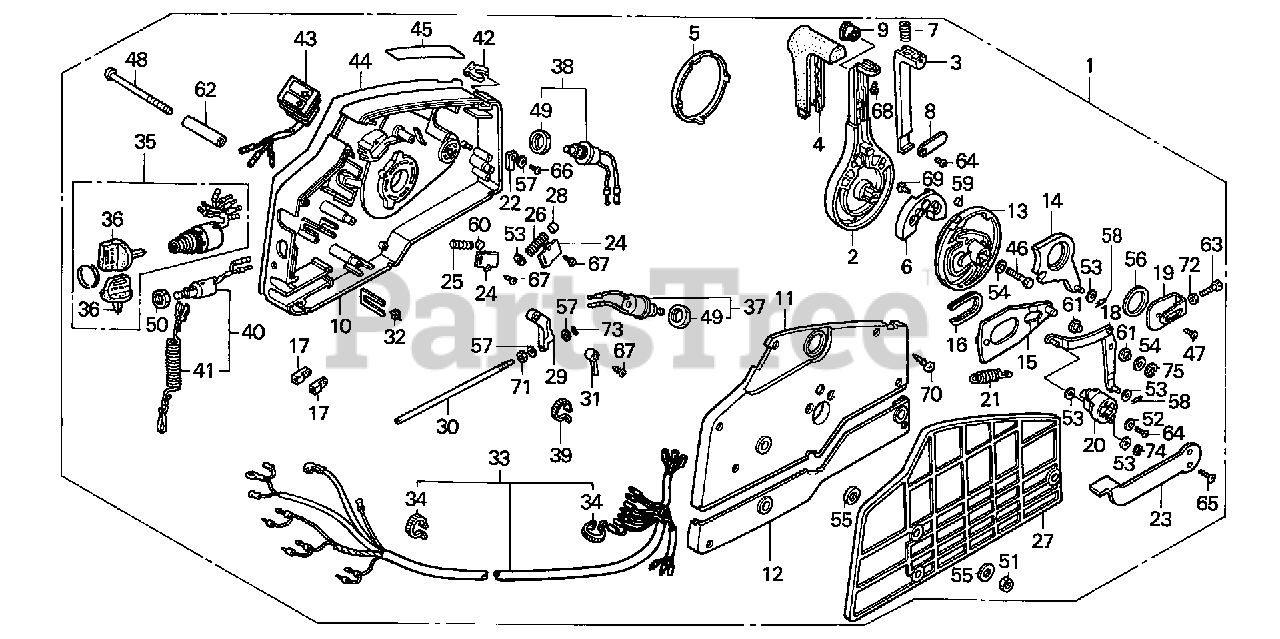

REMOTE CONTROL BOX Parts Diagram

  • Title

1

Honda 24800-ZV4-L70

BOX ASSY., REMOTE CONTROL

Note: (Optional).

$

$

Not available

2

Honda 24811-ZV5-000

SEE PART DETAILS - SUP; HANDLE, REMOTE CONTROL
(Superseded to 24811-ZV5-010)

Note: (Optional).

$162.99

$

Usually ships in 3-6 days

0

2

Honda 24811-ZV5-010

SEE PART DETAILS - PRI; HANDLE, REMOTE CONTROL

Note: (Optional).

$162.99

$

Usually ships in 3-6 days

0

3

Honda 24812-ZV5-000

LEVER, HANDLE LOCK

Note: (Optional).

$

$

Not available

4

Honda 24813-ZV5-000

GRIP, REMOTE CONTROL HANDLE

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

5

Honda 24814-ZV5-000

SEE PART DETAILS - SUP; CAP, HANDLE
(Superseded to 24814-ZV5-010)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

6

Honda 24815-ZV5-000

SEE PART DETAILS - SUP; BLOCK, NEUTRAL LOCK
(Superseded to 24815-ZV5-010)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

7

Honda 24816-ZV5-000

SPRING, REMOTE CONTROL HANDLE

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

8

Honda 24817-ZV5-000

PLATE, LEVER SETTING

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 24819-ZV5-000

COVER, GRIP

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

10

Honda 24820-ZV5-010

HOUSING, REMOTE CONTROL BOX (A)

Note: (Optional).

$143.99

$

Usually ships in 3-6 days

0

11

Honda 24830-ZV5-010

HOUSING, REMOTE CONTROL BOX (B)

Note: (Optional).

$79.99

$

Usually ships in 3-6 days

0

12

Honda 24836-ZV5-000

HOUSING, REMOTE CONTROL BOX (C)

Note: (Optional).

$47.99

$

Usually ships in 3-6 days

0

13

Honda 24841-ZV4-L70

WHEEL, CONTROL

Note: (Optional).

$

$

Not available

14

Honda 24845-ZV5-000

ARM, SHIFT LINK

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

15

Honda 24850-ZV5-000

PLATE, SLIDING

Note: (Optional).

$68.99

$

Usually ships in 3-6 days

0

16

Honda 24854-ZV5-000

COLLAR, SLIDING PLATE

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

17

Honda 24855-ZV5-000

PIVOT, SHIFT

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

18

Honda 24860-ZV5-000

ARM, LINK JOINT

Note: (Optional).

$55.99

$

Usually ships in 3-6 days

0

19

Honda 24865-ZV5-000

BRACKET, LINK JOINT

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

20

Honda 24875-ZV5-000

WHEEL, ACCELERATOR

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

21

Honda 24876-ZV5-000

SPRING, ACCELERATOR WHEEL

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

22

Honda 24877-ZV5-000

CAM, STARTER SWITCH

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

23

Honda 24878-ZV5-000

LEVER, IDLE

Note: (Optional).

$72.99

$

Usually ships in 3-6 days

0

24

Honda 24881-ZV5-000

PLATE, SPRING SETTING

Note: (Optional).

$

$

Not available

25

Honda 24883-ZV5-000

SPRING, SHIFT CLICK

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

26

Honda 24884-ZV5-000

SPRING, CHOKE RETURN

Note: (Optional).

$

$

Not available

27

Honda 24885-ZV5-000

SPACER, REMOTE CONTROL BOX

Note: (Optional).

$94.99

$

Usually ships in 3-6 days

0

28

Honda 24887-ZV5-000

SPACER, CLICK SPRING

Note: (Optional).

$

$

Not available

29

Honda 24891-ZV5-000

BLOCK, THROTTLE FRICTION

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

30

Honda 24892-ZV5-000

BOLT, FRICTION

Note: (Optional).

$

$

Not available

31

Honda 24894-ZV5-000

SPACER, NEUTRAL SWITCH

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

32

Honda 24898-ZV5-000

SPACER, CABLE CLAMP

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

33

Honda 32510-ZV4-L70

CABLE ASSY., REMOTE CONTROL

Note: (Optional).

$

$

Not available

34

Honda 32901-952-770

TIE, CABLE (2.4X92) (NATURAL)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

35

Honda 35100-ZV5-003

SWITCH ASSY., COMBINATION

Note: (Optional).

$192.99

$

Usually ships in 3-6 days

0

36

Honda 35110-ZV5-003

KEY ASSY., COMBINATION SWITCH

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

37

Honda 35495-ZV5-821

SWITCH ASSY., THROTTLE

Note: (Optional).

$77.99

$

Usually ships in 3-6 days

0

38

Honda 35630-ZV5-003

SWITCH ASSY., SOLENOID

Note: (Optional).

$

$

Not available

39

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

40

Honda 36180-ZV5-023

SEE PART DETAILS - SUP; SWITCH ASSY., EMERGENCY STOP
(Superseded to 36180-ZV5-033)

Note: (Optional).

$80.99

$

Usually ships in 3-6 days

0

41

Honda 36182-ZV4-650

SEE PART DETAILS - SUP; WIRE, EMERGENCY
(Superseded to 36182-ZV4-651)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

41

Honda 36182-ZV4-651

SEE PART DETAILS - PRI; WIRE, EMERGENCY

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

42

Honda 36187-ZV4-651

SEE PART DETAILS - SUP; CLIP, EMERGENCY LOCK
(Superseded to 36187-ZV4-652)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

43

Honda 37210-ZV4-L70

SEE PART DETAILS - SUP; LAMP ASSY., INDICATOR
(Superseded to 37210-ZV4-L71)

Note: (Optional).

$102.99

$

Usually ships in 3-6 days

0

43

Honda 37210-ZV4-L71

SEE PART DETAILS - PRI; LAMP ASSY., INDICATOR

Note: (Optional).

$102.99

$

Usually ships in 3-6 days

0

44

Honda 87701-ZV4-L70

PLATE, REMOTE CONTROL (J,E,EF)

Note: (Optional).

$

$

Not available

45

Honda 87702-ZV5-000

MARK, FAST IDLE

Note: (Optional).

$

$

Not available

46

Honda 90009-ZV5-000

BOLT, HEX. (8X35)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

47

Honda 90105-MM4-000

SCREW, PAN (6X10)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

48

Honda 90125-ZV5-000

SCREW (6X95)

Note: (Optional).

$9.99

$

Usually ships in 3-6 days

0

49

Honda 90302-ZV5-003

NUT, HEX. (20MM)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

50

Honda 90302-921-000

NUT, HEX. (16MM)

Note: (Optional).

$5.99

$

In Stock, only 1 left!

0

51

Honda 90304-ZV4-000

NUT, HEX. (6MM)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

52

Honda 90502-ZV4-000

WASHER, PLAIN (5MM)

Note: (Optional).

$3.99

$

In Stock, only 2 left!

0

53

Honda 90504-ZV4-000

WASHER, THRUST (51MM)

Note: (Optional).

$

$

Not available

54

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

55

Honda 90512-921-010

WASHER (6MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

56

Honda 90557-ZV5-000

WASHER (28MM)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

57

Honda 90561-ZV5-000

WASHER, PLAIN (4MM)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

58

Honda 90751-ZV5-000

PIN, LOCK (6MM)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

59

Honda 90772-ZV5-000

PIN (6X6)

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

60

Honda 91151-ZV5-000

ROLLER, CLICK

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

61

Honda 91567-ZV5-000

COLLAR, LINK JOINT

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

62

Honda 91570-ZV5-000

COLLAR, DISTANCE (6X10X43.5)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

63

Honda 92101-05020-4J

BOLT, HEX. (5X20)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

64

Honda 93500-05010-4J

SCREW, PAN (5X10)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

65

Honda 93700-05012-4J

SCREW, OVAL (5X12)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

66

Honda 93901-242J0

SCREW, TAPPING (4X10)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

67

Honda 93901-251J0

SCREW, TAPPING (5X10)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

68

Honda 93901-252J0

SCREW, TAPPING (5X12)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

69

Honda 93903-262J0

SCREW, TAPPING (6X16)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

70

Honda 93905-255J0

SCREW, TAPPING (5X25)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

71

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

Note: (Optional).

$2.99

$

In Stock, only 1 left!

0

72

Honda 94002-05490-0S

NUT, HEX. (5MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

73

Honda 94540-03029

E-RING (3MM)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

74

Honda 94540-04029

E-RING (4MM)

Note: (Optional).

$6.99

$

In Stock, only 1 left!

0

75

Honda 94540-07029

E-RING (7MM)

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0
