BF9.9 AY LAS (BABS) - Honda Outboard Engine, Made in Japan (SN: BABS-1600001 - BABS-1699999) OIL CASE + ENGINE COVER Parts Diagram

Outboard Engine, Made in Japan

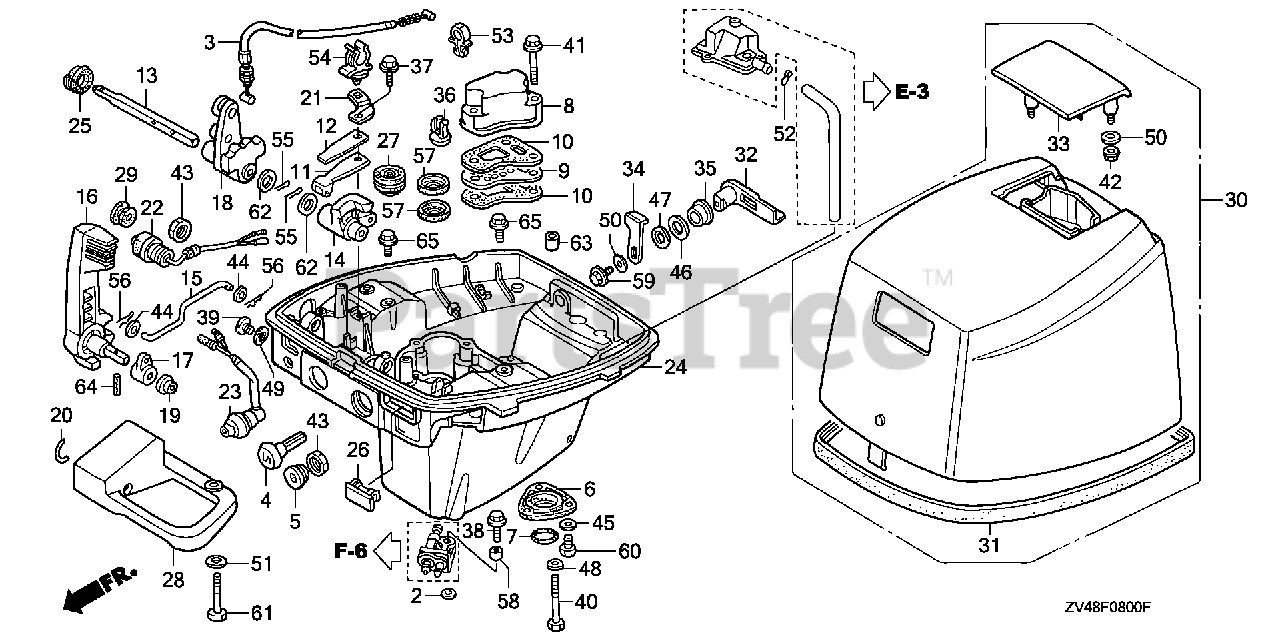

OIL CASE + ENGINE COVER Parts Diagram

  • Title

2

Honda 17936-921-000

WASHER, PIVOT

$1.99

$

Usually ships in 3-6 days

0

3

Honda 17940-ZV4-013

CABLE, NEUTRAL STARTING

$

$

Not available

4

Honda 17951-921-030

KNOB, CHOKE

$14.99

$

Usually ships in 3-6 days

0

5

Honda 17953-921-010

GUIDE, CHOKE KNOB

$7.49

$

Usually ships in 3-6 days

0

6

Honda 18221-ZV4-000

PLATE, EX.

$

$

Not available

7

Honda 18222-ZV4-000

BAND, EX. SEAL

$

$

Not available

8

Honda 18231-ZV4-010ZA

SEE PART DETAILS - PRI; COVER, EX. CHAMBER *NH8* (DARK GRAY)

$

$

Not available

9

Honda 18232-ZV4-010

PLATE, EX. CHAMBER

$

$

Not available

10

Honda 18233-ZV4-610

GASKET, EX. CHAMBER

$15.99

$

Usually ships in 3-6 days

0

11

Honda 24210-ZV4-650

SPRING, CLICK

$

$

Not available

12

Honda 24221-ZV4-010

SPRING, CLICK ASSIST

$9.99

$

Usually ships in 3-6 days

0

13

Honda 24611-ZV4-000

SHAFT, SHIFT

$28.99

$

Usually ships in 3-6 days

0

14

Honda 24612-ZV4-000

ARM, SHIFT

$

$

Not available

15

Honda 24613-ZV4-010

ROD, LINK

$

$

Not available

16

Honda 24614-ZV4-651

LEVER, SHIFT

$

$

Not available

17

Honda 24615-ZV4-030

LINK A, SHIFT

$7.49

$

In Stock, only 1 left!

0

18

Honda 24616-ZV4-000

LINK, SHIFT (B)

$

$

Not available

19

Honda 24621-ZV4-010

BUSH, SHAFT

$5.99

$

Usually ships in 3-6 days

0

20

Honda 24623-ZV4-650

RUBBER, SHIFT SHAFT

$

$

Not available

21

Honda 32114-ZV4-000

BRACKET, WIRE HARNESS CLIP

$

$

Not available

22

Honda 35150-ZV4-812

SWITCH ASSY., STARTER

$

$

Not available

23

Honda 37210-ZV4-003

SEE PART DETAILS - PRI; LAMP ASSY., INDICATOR

$48.99

$

Usually ships in 3-6 days

0

24

Honda 40100-ZV4-651ZA

CASE, OIL *NH282MU* (OYSTER SILVER METALLIC-U)

$1115.99

$

Usually ships in 3-6 days

0

25

Honda 40106-ZV4-000

GROMMET, OIL CASE (B)

$

$

Not available

26

Honda 40108-ZV4-000

GROMMET, OIL CASE (D)

$

$

Not available

27

Honda 40109-ZV4-010

GROMMET, OIL CASE (E)

$6.99

$

Usually ships in 3-6 days

0

28

Honda 50281-ZV4-651ZB

HANDLE, CARRYING *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

30

Honda 63100-ZV4-020ZB

COVER, ENGINE *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

31

Honda 63102-ZV4-300

SEAL, ENGINE COVER

$

$

Not available

32

Honda 63201-ZV1-841ZB

LEVER, COVER LOCK *NH282MU* (OYSTER SILVER METALLIC-U)

$31.99

$

Usually ships in 3-6 days

0

33

Honda 63105-ZV4-000

HANDLE, TILT

$

$

Not available

34

Honda 63202-ZV4-010

SEE PART DETAILS - PRI; HOOK, COVER LOCK

$

$

Not available

35

Honda 63205-920-000

BUSH, COVER LOCK

$6.49

$

In Stock, only 1 left!

0

36

Honda 82873-ZV4-003

GROMMET, WATER CHECK

$10.99

$

Usually ships in 3-6 days

0

37

Honda 90013-ZV1-000

SEE PART DETAILS - SUP; BOLT, FLANGE (6X14)

$

$

Not available

38

Honda 90013-ZV4-010

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$1.99

$

Usually ships in 3-6 days

0

39

Honda 90105-ZV4-650

BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

40

Honda 90120-ZV4-000

SEE PART DETAILS - SUP; BOLT, HEX. (6X40)
(Superseded to 90120-ZV4-010)

$3.49

$

Usually ships in 3-6 days

0

40

Honda 90120-ZV4-010

SEE PART DETAILS - PRI; BOLT, HEX. (6X40)

$3.49

$

Usually ships in 3-6 days

0

41

Honda 90125-ZV4-000

BOLT, FLANGE (6X35)

$

$

Not available

42

Honda 90304-881-010

NUT (6MM)

$6.49

$

Usually ships in 3-6 days

0

43

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

44

Honda 90452-GK4-600

WASHER, PLAIN (5MM)

$1.99

$

Usually ships in 3-6 days

0

45

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

46

Honda 90505-ZV1-000

WASHER (14MM)

$3.49

$

Usually ships in 3-6 days

0

47

Honda 90506-ZV1-000

WASHER, WAVE (14MM)

$3.49

$

In Stock, only 2 left!

0

48

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

49

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

50

Honda 90512-921-010

WASHER (6MM)

$1.49

$

Usually ships in 3-6 days

0

51

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

52

Honda 90605-ZV4-000

CLIP, TUBE (B12.5)

$1.99

$

Usually ships in 3-6 days

0

53

Honda 90660-ZA0-600

CLIP, ENGINE STOP SWITCH CORD

$3.49

$

Usually ships in 3-6 days

0

54

Honda 90687-ZV4-003

CLIP, WIRE HARNESS

$2.99

$

Usually ships in 3-6 days

0

55

Honda 90759-ZV1-000

PIN, SPLIT (2.0)

$1.99

$

Usually ships in 3-6 days

0

56

Honda 90757-ZV1-000

PIN, LOCK (5MM)

$2.49

$

Usually ships in 3-6 days

0

57

Honda 91255-ZV4-651

SEAL, WATER (14X26X6)

$7.99

$

Usually ships in 3-6 days

0

58

Honda 91551-ZV4-000

COLLAR, DISTANCE (6MM)

$4.49

$

Usually ships in 3-6 days

0

59

Honda 92101-06016-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

Usually ships in 3-6 days

0

60

Honda 90127-ZV4-000

BOLT, HEX. (6X16)

$2.99

$

Usually ships in 3-6 days

0

61

Honda 90102-ZV4-000

SEE PART DETAILS - PRI; BOLT, HEX. (8X30)

$

$

Not available

62

Honda 90509-ZV4-000

WASHER, SHIFT

$3.99

$

Usually ships in 3-6 days

0

63

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

64

Honda 94305-40203

PIN, SPRING (4X20)

$1.99

$

In Stock, Qty 5

0

65

Honda 95701-06016-02

BOLT, FLANGE (6X16)

$1.49

$

Usually ships in 3-6 days

0
