BF9.9 AY LAS (BABS) - Honda Outboard Engine, Made in Japan (SN: BABS-1600001 - BABS-1699999) EXTENSION CASE Parts Diagram

Outboard Engine, Made in Japan

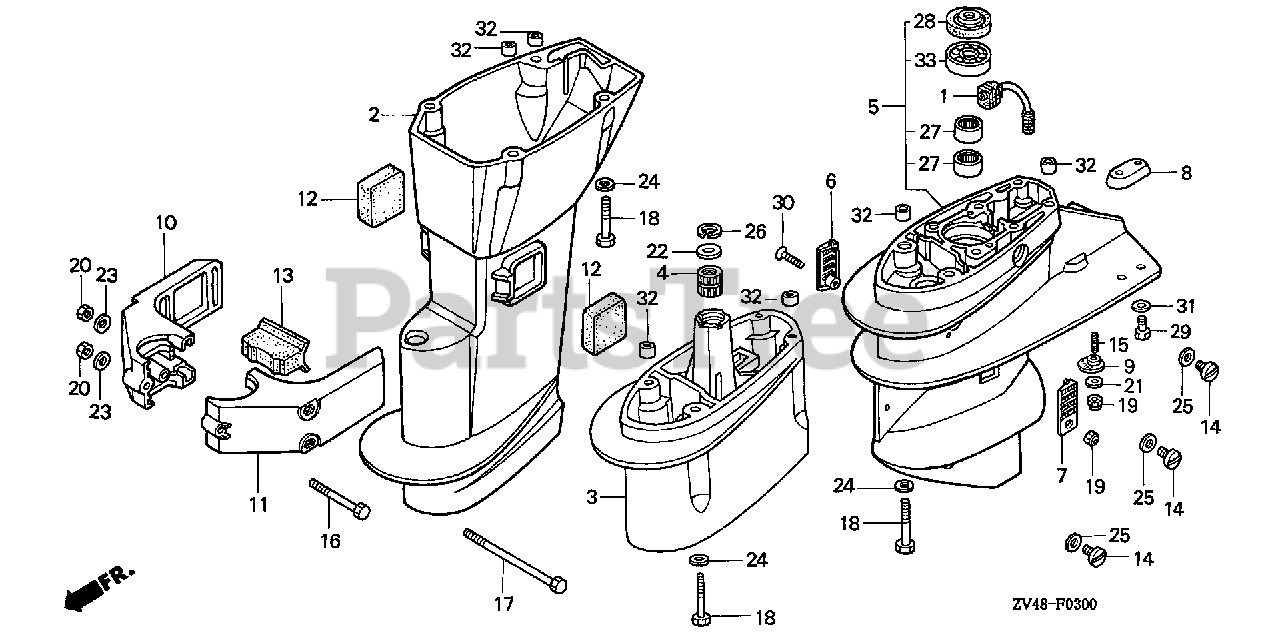

EXTENSION CASE Parts Diagram

  • Title
1

Honda 19280-ZV4-000

TUBE, WATER (LOWER)

$

$

Not available

2

Honda 40201-ZV4-702ZB

CASE, EXTENSION *NH282MU* (L) (OYSTER SILVER METALLIC-U)

$510.99

$

Usually ships in 3-6 days

0

5

Honda 41100-ZV4-050ZB

CASE, GEAR *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

6

Honda 41104-ZV4-010

SCREEN, R. WATER

$

$

Not available

7

Honda 41105-ZV4-010

SCREEN, L. WATER

$

$

Not available

8

Honda 41106-ZV4-650

METAL, ANODE
(Superseded to 41106-ZVA-000)

$20.99

$

Usually ships in 3-6 days

0

9

Honda 41108-ZV4-000

SCREEN, WATER (LOWER)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 50111-ZV4-020ZB

HOUSING, R. MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

11

Honda 50121-ZV4-020ZB

HOUSING, L. MOUNTING (LOWER) *NH282MU* (OYSTER SILVER METALLIC-U)

$

$

Not available

12

Honda 50152-ZV4-000

RUBBER, MOUNT (LOWER) (A)

$

$

Not available

13

Honda 50155-ZV4-000

RUBBER, MOUNT (LOWER) (B)

$

$

Not available

14

Honda 90105-ZV4-650

BOLT, OIL CHECK (8X8)
(Superseded to 90105-ZVA-000)

$5.99

$

In Stock, only 2 left!

0

15

Honda 90106-ZV4-010

BOLT, STUD (5X16)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90121-ZV4-000

BOLT, HEX. (6X45)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90122-ZV4-000

BOLT, HEX. (6X130)

$

$

Not available

18

Honda 90123-ZV4-000

BOLT, HEX. (8X50)

$

$

Not available

19

Honda 90302-ZV4-000

NUT, SELF-LOCK (5MM)

$6.99

$

Usually ships in 3-6 days

0

20

Honda 90304-ZV4-000

NUT, HEX. (6MM)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90502-ZV4-000

WASHER, PLAIN (5MM)

$3.99

$

In Stock, only 2 left!

0

23

Honda 90503-ZV4-000

WASHER, PLAIN (6X13X1.5)

$

$

Not available

24

Honda 90507-ZV4-000

WASHER, PLAIN (8MM)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

27

Honda 91052-ZV4-003

BEARING, NEEDLE (15X21X12)

$14.99

$

Usually ships in 3-6 days

0

28

Honda 91252-935-004

SEAL, WATER (15MM) (NOK)

$22.99

$

Usually ships in 3-6 days

0

29

Honda 90101-ZV1-000

BOLT, HEX. (6X18)

$3.99

$

Usually ships in 3-6 days

0

30

Honda 93700-05025-4J

SCREW, OVAL (5X25)

$

$

Not available

31

Honda 90506-ZV4-000

WASHER, PLAIN (6MM)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 94301-10140

PIN A, DOWEL (10X14)

$3.49

$

Usually ships in 3-6 days

0

33

Honda 96100-63020-00

BEARING, RADIAL BALL (6302)

$11.99

$

Usually ships in 3-6 days

0
