BF9.9 AX SAS (BABS) - Honda Outboard Engine, Made in Japan (SN: BABS-1400001 - BABS-1499999) VERTICAL SHAFT Parts Diagram

Outboard Engine, Made in Japan

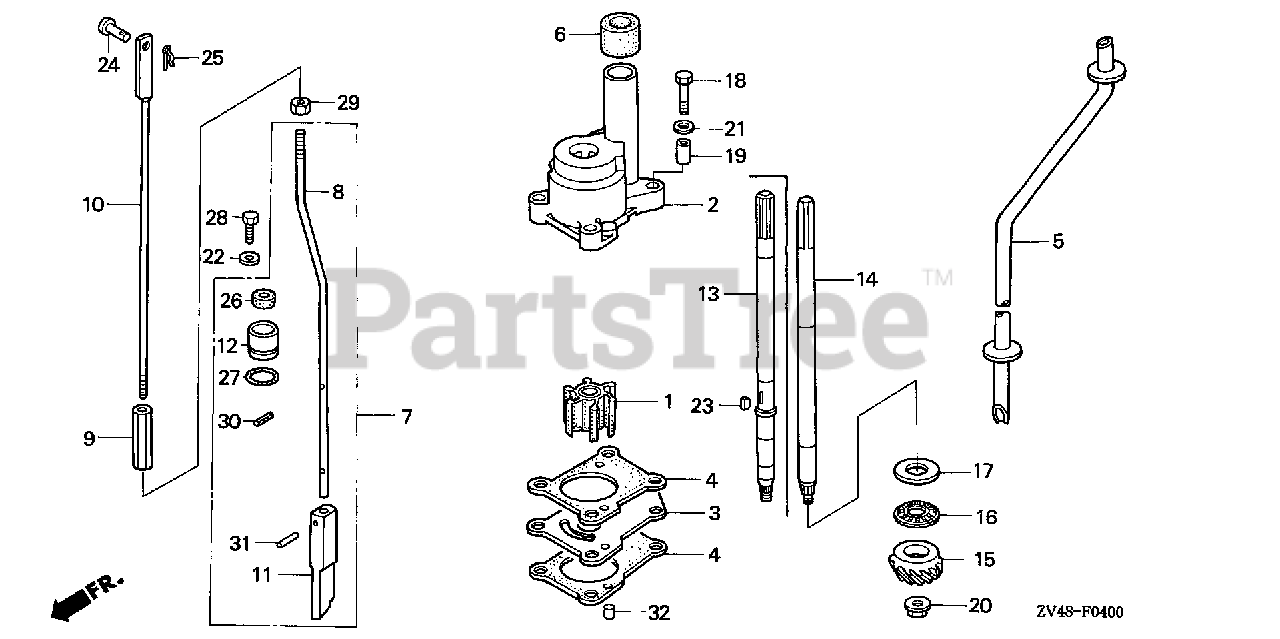

VERTICAL SHAFT Parts Diagram

  • Title

1

Honda 19210-ZV4-651

IMPELLER, PUMP

$30.99

$

Usually ships in 3-6 days

0

2

Honda 19220-ZV4-000

HOUSING, IMPELLER

$97.99

$

Usually ships in 3-6 days

0

3

Honda 19231-ZV4-020

SEE PART DETAILS - PRI; COVER, IMPELLER

$11.99

$

Usually ships in 3-6 days

0

4

Honda 19232-ZV4-610

GASKET, IMPELLER

$3.99

$

Usually ships in 3-6 days

0

5

Honda 19251-ZV4-000

TUBE, WATER

$

$

Not available

6

Honda 19253-ZV1-000

RING, WATER TUBE SEAL
(Superseded to 19253-ZVD-000)

$3.99

$

In Stock, only 3 left!

0

7

Honda 24310-ZV4-010

ROD, SHIFT (S)

$

$

Not available

8

Honda 24311-ZV4-300

ROD B, SHIFT (S)

$

$

Not available

9

Honda 24312-ZV4-000

JOINT, SHIFT ROD

$

$

Not available

10

Honda 24320-ZV4-000

ROD A, SHIFT

$

$

Not available

11

Honda 24341-ZV4-300

ROD, PUSH

$

$

Not available

12

Honda 24343-ZV4-300

HOLDER, SEAL

$

$

Not available

14

Honda 41112-ZV4-650

SHAFT, VERTICAL (S)

$

$

Not available

15

Honda 41131-ZV4-010

PINION (13T)

$

$

Not available

16

Honda 41135-935-003

WASHER A, THRUST BEARING (2.00MM)

$8.99

$

Usually ships in 3-6 days

0

17

Honda 41135-ZV4-000

WASHER, THRUST BEARING A (3.00MM)

$13.99

$

Usually ships in 3-6 days

0

17

Honda 41136-ZV4-000

WASHER, THRUST BEARING B (3.03MM)

$

$

Not available

17

Honda 41137-ZV4-000

WASHER, THRUST BEARING C (3.06MM)

$

$

Not available

17

Honda 41138-ZV4-000

WASHER, THRUST BEARING D (3.09MM)

$

$

Not available

18

Honda 90108-881-000

BOLT, HEX. (6X28)

$5.49

$

Usually ships in 3-6 days

0

19

Honda 90112-881-000

COLLAR B, DISTANCE

$6.99

$

Usually ships in 3-6 days

0

20

Honda 90303-ZV4-010

NUT, SPECIAL (8MM)

$

$

Not available

21

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

22

Honda 90512-ZV4-000

WASHER, PLAIN (6MM)

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90752-ZV4-650

KEY, WOODRUFF (16X12)

$

$

Not available

24

Honda 90754-ZV4-000

PIN (5X28)

$

$

Not available

25

Honda 90757-ZV1-000

PIN, LOCK (5MM)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 91253-921-003

SEAL, WATER (6MM)

$16.99

$

Usually ships in 3-6 days

0

27

Honda 91301-MY9-003

SEE PART DETAILS - PRI; O-RING (15X2.5)

$3.49

$

Usually ships in 3-6 days

0

28

Honda 90105-881-000

BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 94001-06490-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$2.99

$

In Stock, only 1 left!

0

30

Honda 94305-25122

PIN, SPRING (2.5X12)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 96220-25118

ROLLER (2.5X11.8)

$0.99

$

Usually ships in 3-6 days

0

32

Honda 96220-40100

ROLLER (4X10)

$0.99

$

Usually ships in 3-6 days

0
